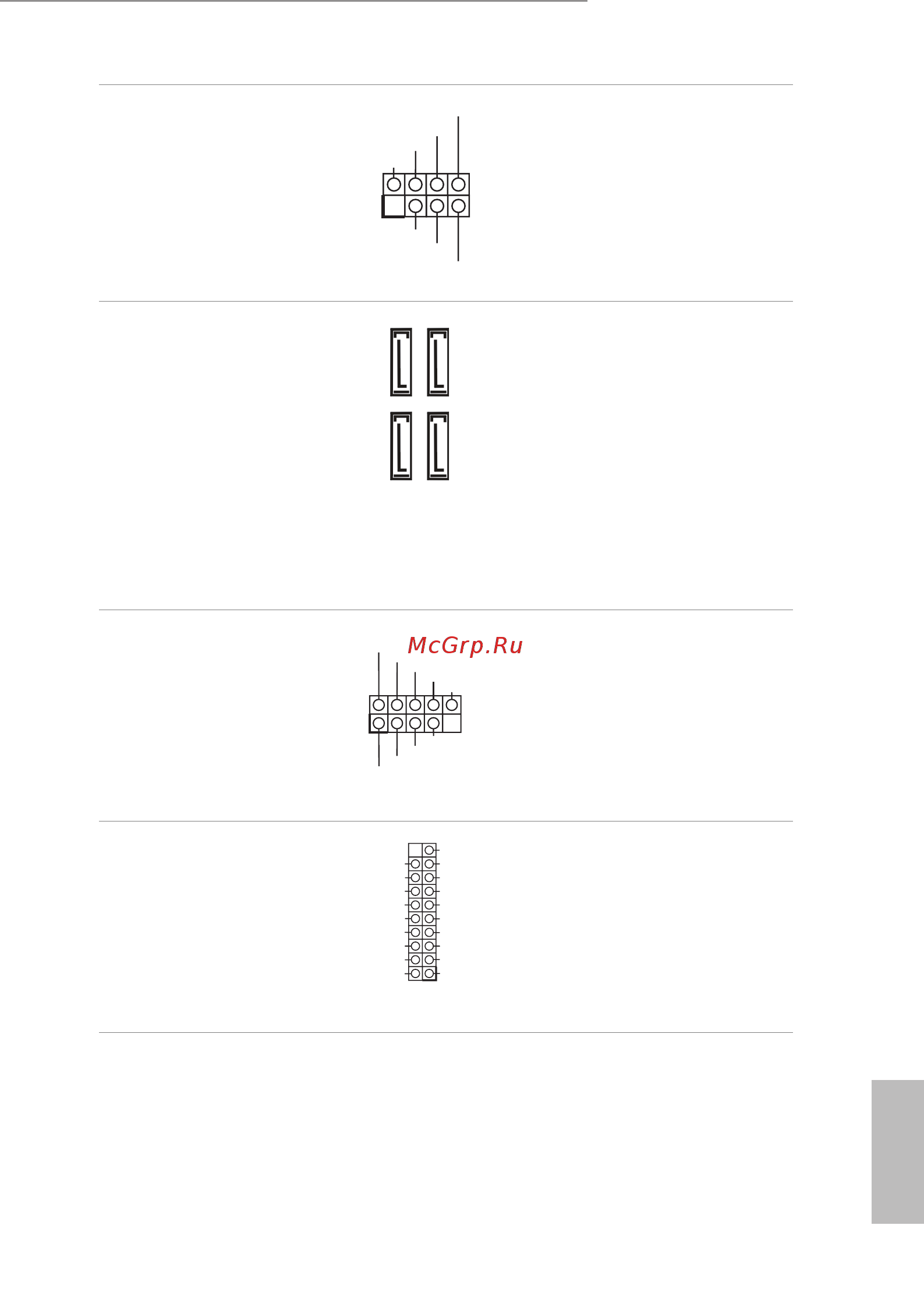

B550 Phantom Gaming 4/ac
29
English
Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.7, No. 18)
1
+5V
DUMMY
PLED+
PLED+
PLED-
DUMMY
SPEAKER
Please connect the
chassis power LED and
the chassis speaker to this
header.
Serial ATA3 Connectors
(SATA3_1:
see p.7, No. 14)
(SATA3_2:
see p.7, No. 15)
(SATA3_3:
see p.7, No. 12)
(SATA3_4:
see p.7, No. 13)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB_1_2)
(see p.7, No. 22)
(9-pin USB_3_4)
(see p.7, No. 21)
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
USB 3.2 Gen1 Header
(19-pin USB3_7_8)
(see p.7, No. 10)
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
ere is one header on
this motherboard. Each
USB 3.2 Gen1 header can
support two ports.
SATA3_1
SATA3_3
SATA3_2 SATA3_4
