English
32

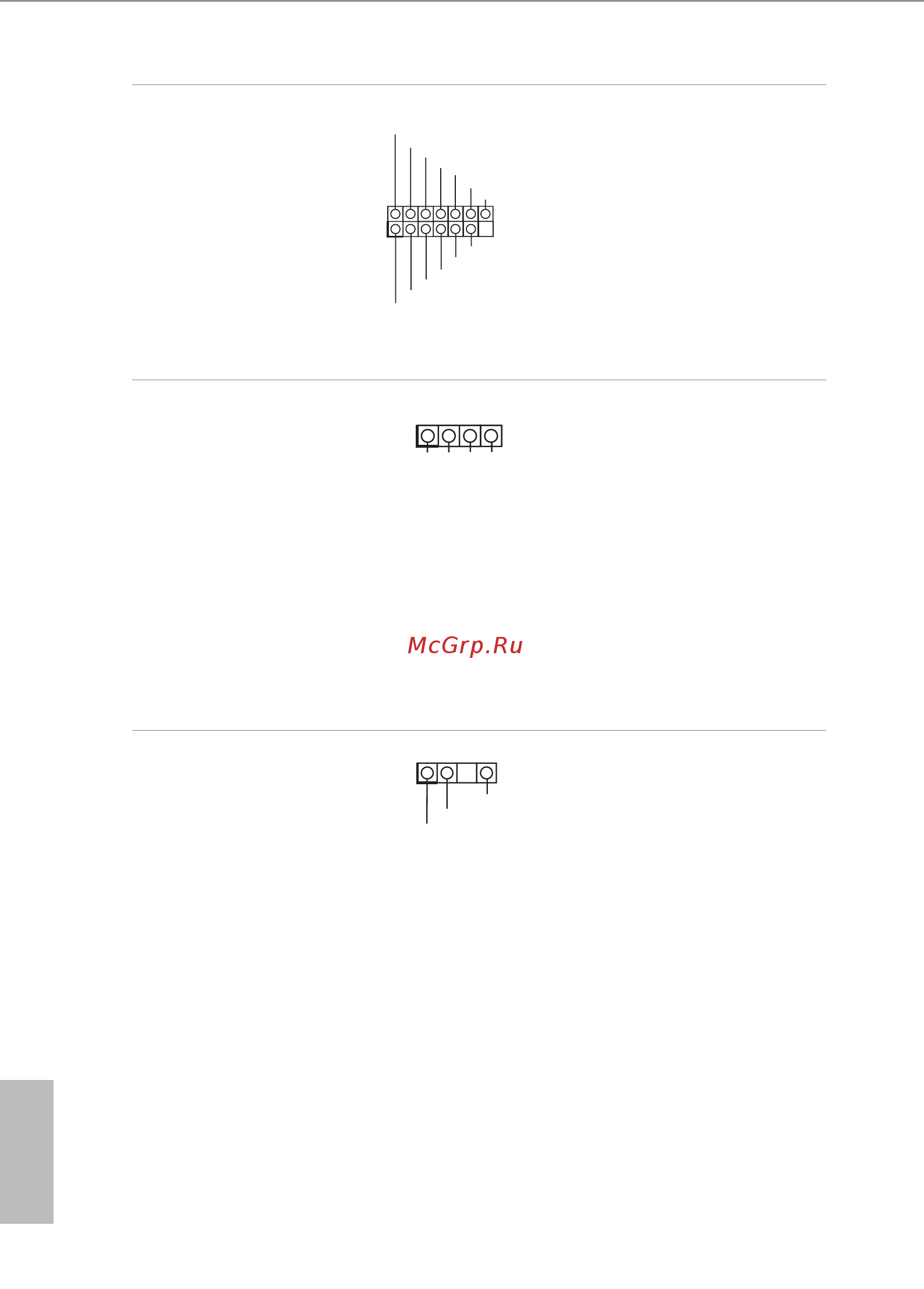

SPI TPM Header
(13-pin SPI_TPM_J1)
(see p.7, No. 11)
1
SPI_DQ3
+3.3V
SPI_DQ2
SPI_CS0
TPM_Present
CLK
SPI_MISO
SPI_MOSI
GND
SPI_TPM_CS#
RST#
RSMRST#
TPM_PIRQ
is connector supports SPI
Trusted Platform Module (TPM)
system, which can securely
store keys, digital certicates,
passwords, and data. A TPM
system also helps enhance
network security, protects digital
identities, and ensures platform
integrity.
RGB LED Headers
(4-pin RGB _LED1)
(see p.7, No. 26)
(4-pin RGB_LED2)
(see p.7, No. 7)
12V GRB
1
RGB headers are used to connect
RGB LED extension cables which
allow users to choose from
various LED lighting eects.
Caution: Never install the
RGB LED cable in the wrong
orientation; otherwise, the cable
may be damaged.
*Please refer to page 51 for
further instructions on this
header.
Addressable LED Headers
(3-pin ADDR_LED1)
(see p.7, No. 25)
(3-pin ADDR_LED2)
(see p.7, No. 8)
ese headers are used to connect
Addressable
LED extension ca-
bles which allow users to choose
from various LED lighting
eects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 52 for
further instructions on this
header.
VOUT
DO_ADDR
GND
1
