AB350M-HDV R3.0 / A320M-HDV R3.0 / A320M-DVS R3.0
57
English

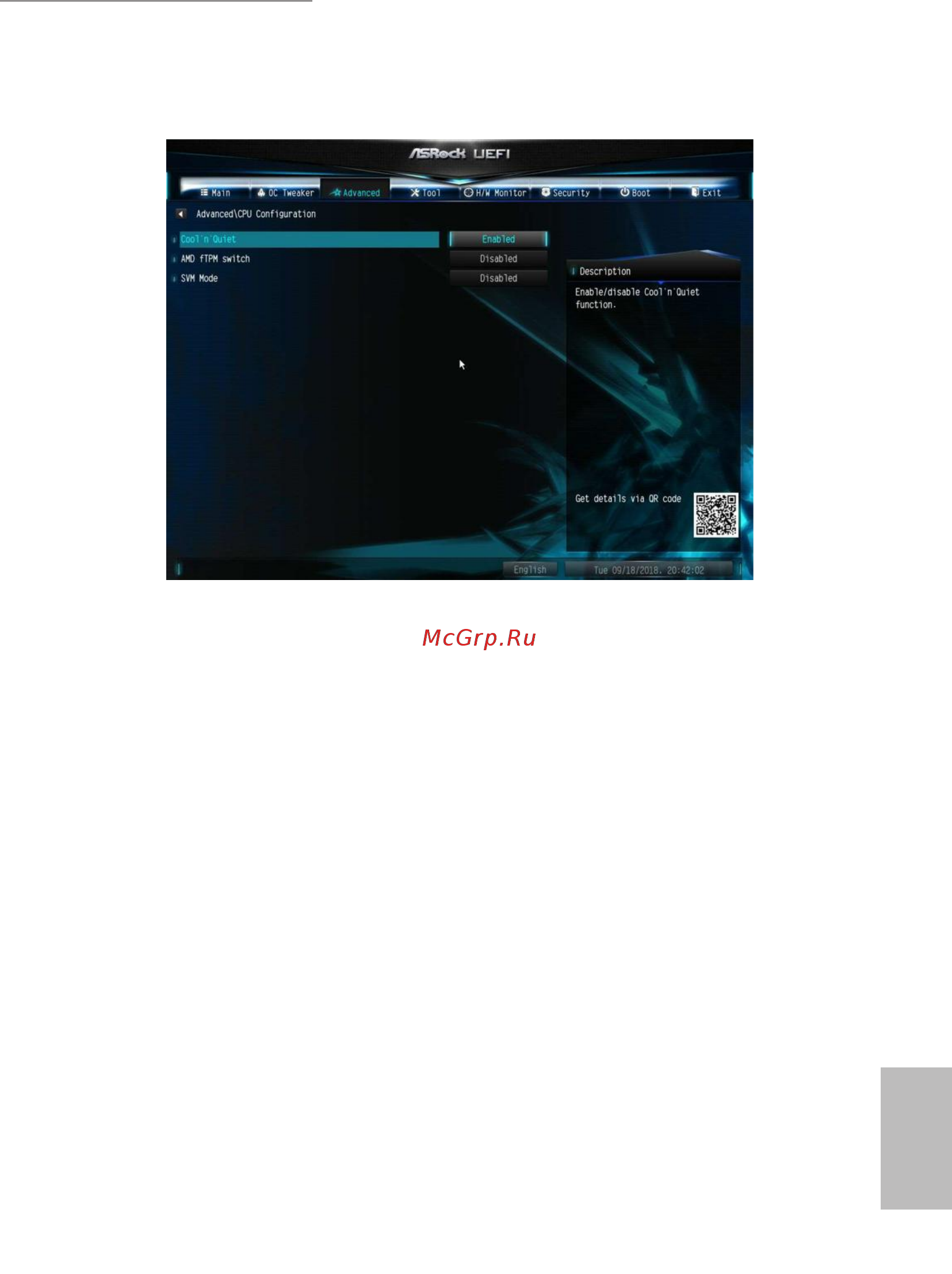

4.4.1 CPU Conguration
Cool 'n' Quiet
Use this item to enable or disable AMD’s Cool ‘n’ Quiet
TM
technology. e default value is
[Enabled]. Conguration options: [Enabled] and [Disabled]. If you install Windows
®
OS and
want to enable this function, please set this item to [Enabled]. Please note that enabling this
function may reduce CPU voltage and memory frequency, and lead to system stability or
compatibility issue with some memory modules or power supplies. Please set this item to
[Disable] if above issue occurs.
