ASRock A320M Pro4 R2.0 [14/78] I o panel
![ASRock A320M Pro4 R2.0 [14/78] I o panel](/views2/1691314/page14/bge.png)
X370M Pro4 R2.0
AB350M Pro4 R2.0
A320M Pro4 R2.0
9
English

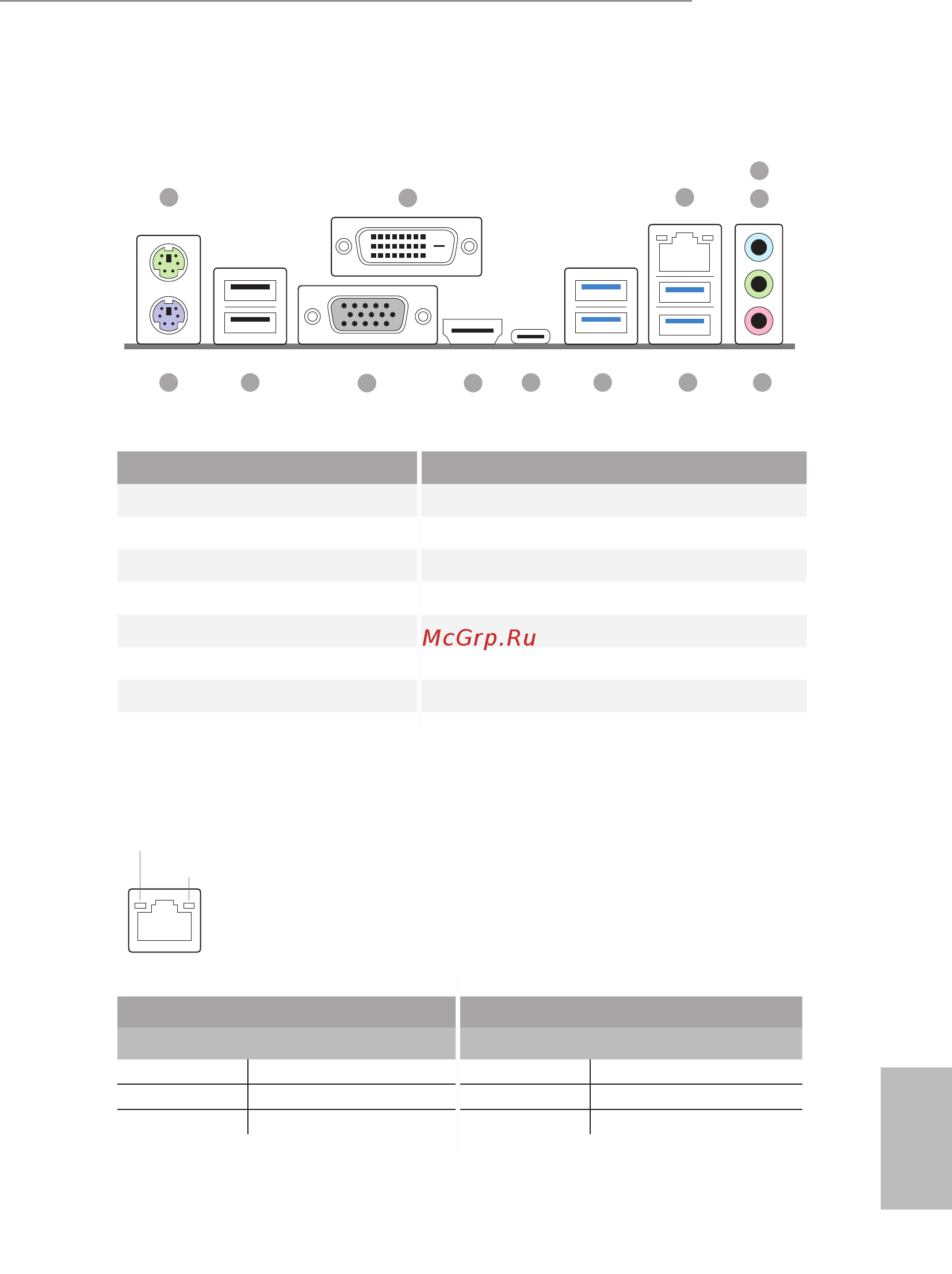

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 8 USB 3.1 Gen1 Ports (USB3_23)
2 DVI-D Port 9 USB 3.1 Gen1 Type-C Port (USB31_TC_1)
3 LAN RJ-45 Port* 10 HDMI Port
4 Line In (Light Blue)** 11 D-Sub Port
5 Front Speaker (Lime)** 12 USB 2.0 Ports (USB_1_2)
6 Microphone (Pink)** 13 PS/2 Keyboard Port
7 USB 3.1 Gen1 Ports (USB3_45)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1
8 7913 12
3
6
5
4
10
2
11
