ASRock A320M Pro4 R2.0 [62/78] Cpu configuration
![ASRock A320M Pro4 R2.0 [62/78] Cpu configuration](/views2/1691314/page62/bg3e.png)
X370M Pro4 R2.0
AB350M Pro4 R2.0
A320M Pro4 R2.0
57
English

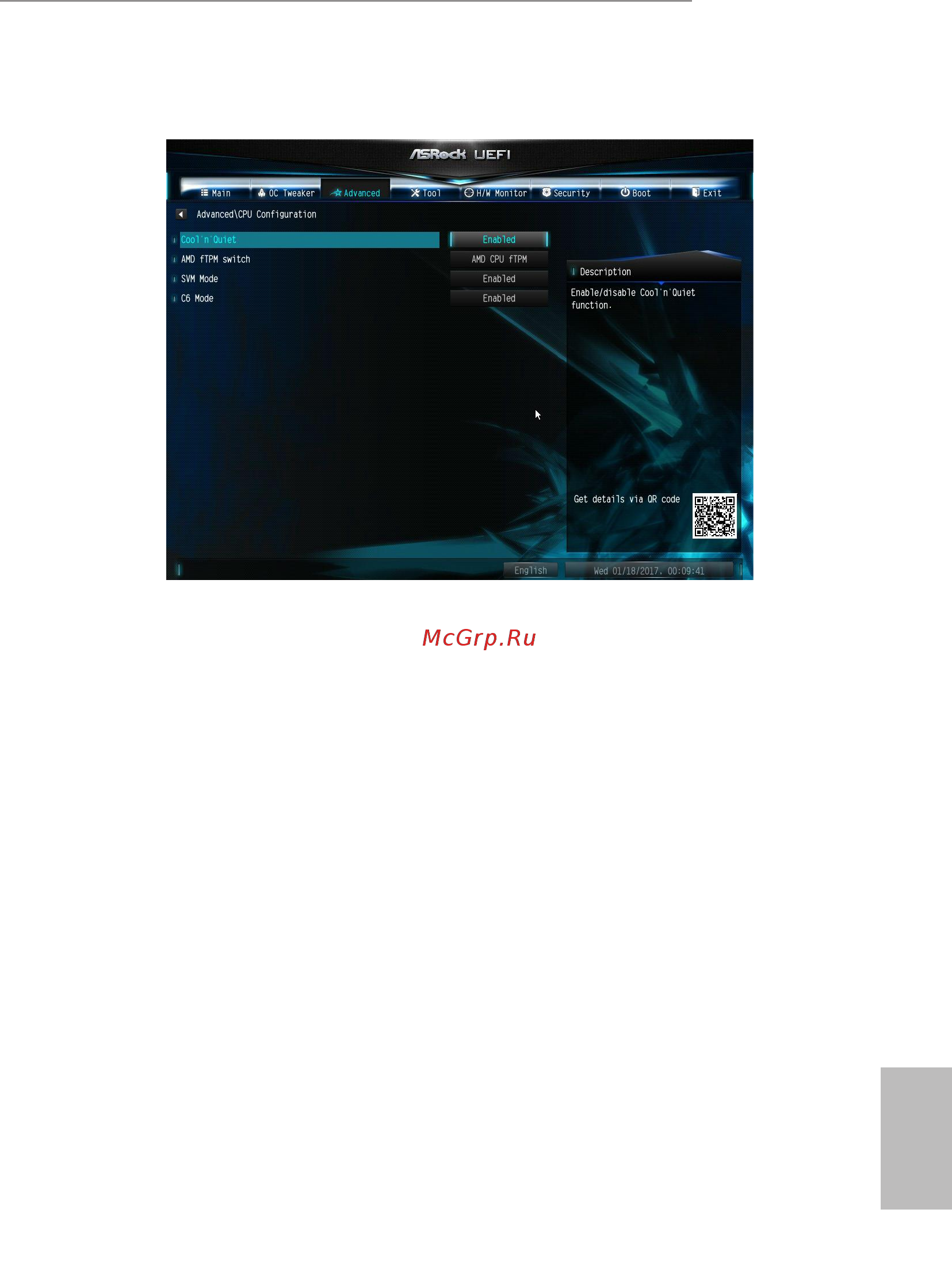

4.4.1 CPU Conguration
Cool 'n' Quiet
Use this item to enable or disable AMD’s Cool ‘n’ Quiet
TM
technology. e default
value is [Enabled]. Conguration options: [Enabled] and [Disabled]. If you install
Windows
®
OS and want to enable this function, please set this item to [Enabled].
Please note that enabling this function may reduce CPU voltage and memory
frequency, and lead to system stability or compatibility issue with some memory
modules or power supplies. Please set this item to [Disable] if above issue occurs.
AMD fTPM Switch
Use this to enable or disable AMD CPU fTPM.
SVM Mode
When this option is set to [Enabled], a VMM (Virtual Machine Architecture) can
utilize the additional hardware capabilities provided by AMD-V. e default value is
[Enabled]. Conguration options: [Enabled] and [Disabled].
C6 Mode
Use this item to enable or disable Core C6 mode. e default value is [Enabled].
