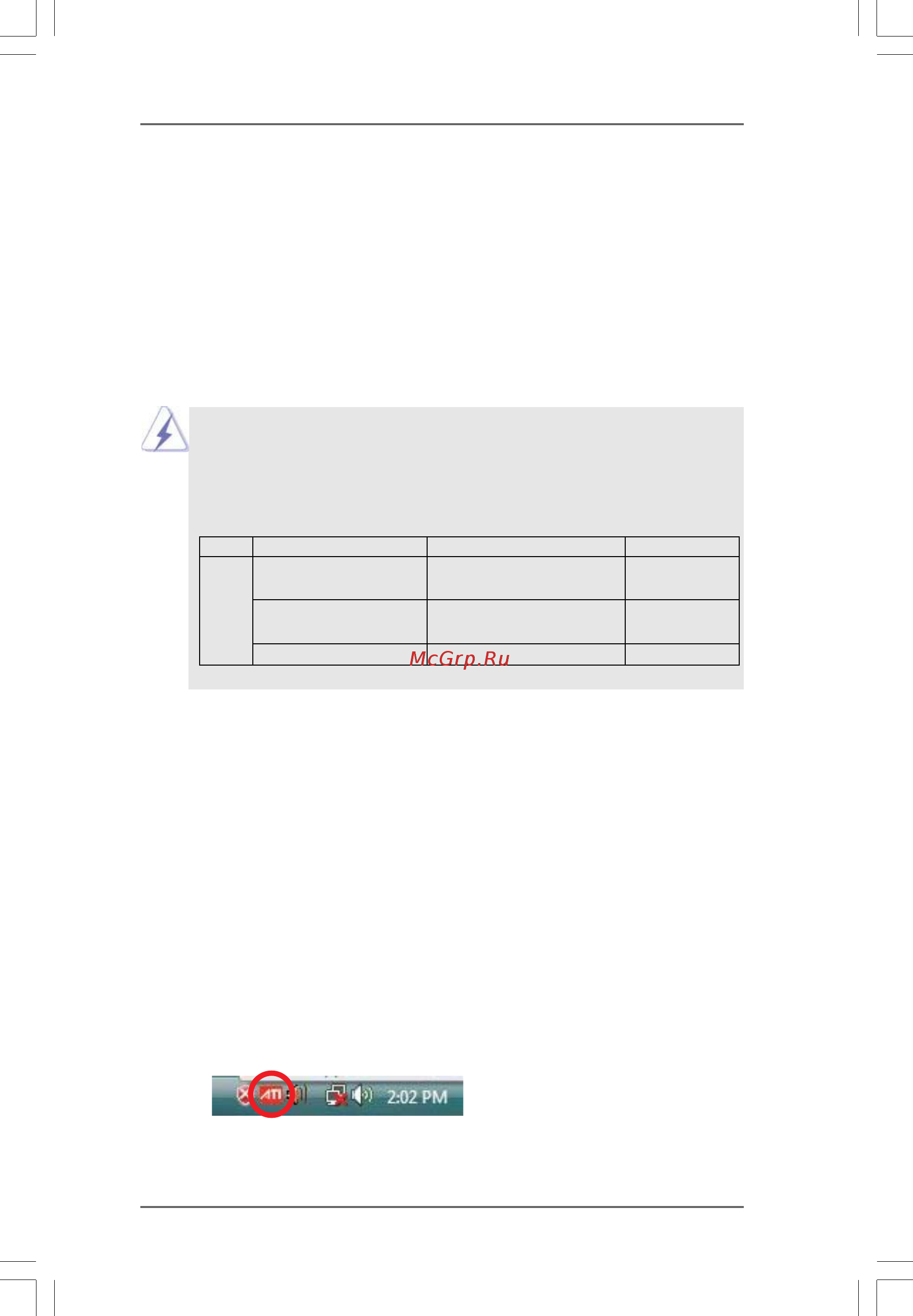

![ASRock 890GX Pro3 [23/66] Hybrid crossf hybrid crossf hybrid crossf hybrid crossf hybrid crossfirex irex irex irex ire](/img/pdf.png)
ASRock 890GX Pro3 [23/66] Hybrid crossf hybrid crossf hybrid crossf hybrid crossf hybrid crossfirex irex irex irex ire
![ASRock 890GX Pro3 [23/66] Hybrid crossf hybrid crossf hybrid crossf hybrid crossf hybrid crossfirex irex irex irex ire](/views2/1691323/page23/bg17.png)
2323
2323
23
2.62.6
2.62.6
2.6
AA
AA
A
TITI
TITI
TI
TMTM
TMTM
TM
Hybrid CrossF Hybrid CrossF
Hybrid CrossF Hybrid CrossF
Hybrid CrossF
ireXireX
ireXireX
ireX
TMTM
TMTM
TM
Operation Guide Operation Guide
Operation Guide Operation Guide
Operation Guide
This motherboard supports ATI
TM
Hybrid CrossFireX
TM
feature. ATI
TM
Hybrid
CrossFireX
TM
brings multi-GPU performance capabilities by enabling an AMD
890GX integrated graphics processor and a discrete graphics processor to
operate simultaneously with combined output to a single display for blisteringly-
fast frame rates. Currently, ATI
TM
Hybrid CrossFireX
TM
Technology is only
supported with Windows
®
Vista
TM
/ 7 OS, and is not available with Windows
®
XP
OS. In the future, ATI
TM
Hybrid CrossFireX
TM
may be supported with Windows
®
XP
OS.
Enjoy the benefit of AEnjoy the benefit of A
Enjoy the benefit of AEnjoy the benefit of A
Enjoy the benefit of A
TITI
TITI
TI
TMTM
TMTM
TM
Hybrid CrossF Hybrid CrossF
Hybrid CrossF Hybrid CrossF
Hybrid CrossF
ireXireX
ireXireX
ireX
TMTM
TMTM
TM
Step 1. Install one compatible PCI Express graphics card to PCIE2 slot (blue). For
the proper installation procedures, please refer to section “Expansion Slots”.
Step 2. Connect the monitor cable to the correspondent connector on the PCI
Express graphics card on PCIE2 slot.
Step 3. Boot your system. Press <F2> to enter UEFI setup. Enter “Advanced”
screen, and enter “North Bridge Configuration”. Then set the option “Sur-
round View” to [Enabled].
Step 4. Boot into OS. Please remove the ATI
TM
driver if you have any VGA driver
installed in your system.
Step 5. Install the onboard VGA driver from our support CD to your system for both
the onboard VGA and the discrete graphics card.
Step 6. Restart your computer. Then you will find “ATI Catalyst Control Center” on
your Windows
®
taskbar.
ATI Catalyst Control Center
Vendor Chipset Model Driver
ATI RADEON HD2400XT POWERCOLOR HD2400 XT Support CD 8.70
256MB DDR3
RADEON HD3450 POWERCOLOR AX3450 Support CD 8.70
256MD2-S
RADEON HD5450 ATI RADEON HD5450 1GB Support CD 8.70
What does an ATI
TM
Hybrid CrossFireX
TM
system include?
An ATI
TM
Hybrid CrossFireX
TM
system includes an ATI
TM
Radeon
TM
2400, 3450 or 5450
series graphics processor and a motherboard based on an AMD 890GX integrated
chipset, all operating in a Windows
®
Vista
TM
/ 7 environment. Please refer to below
PCI Express graphics card support list for ATI
TM
Hybrid CrossFireX
TM
.
