Infrared Module Header This header supports an
(5-pin IR1) optional wireless transmitting
(see p.12 No. 32) and receiving infrared module.
DUMMY
GND
+5V
IRTX
IRRX
1

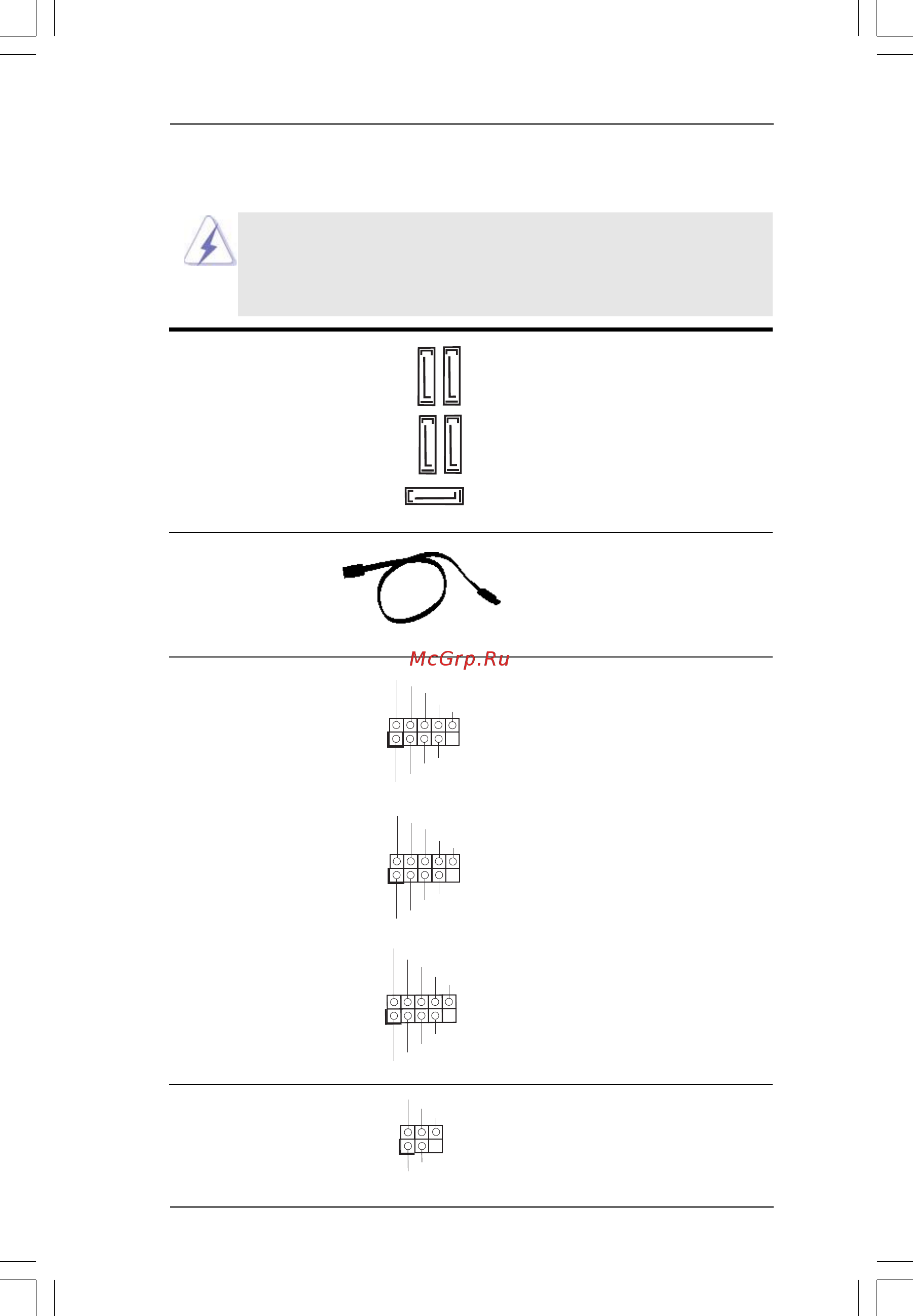

2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA3
(Optional) hard disk or the SATA3
connector on this motherboard.
SATAIII_1 SATAIII_3
Serial ATA3 Connectors These five Serial ATA3
(SATAIII_1: see p.12, No. 17) (SATA3) connectors support
(SATAIII_2: see p.12, No. 16) SATA data cables for internal
(SATAIII_3: see p.12, No. 14) storage devices. The current
(SATAIII_4: see p.12, No. 15) SATA3 interface allows up to
(SATA3_5: see p.12, No. 18) 6.0 Gb/s data transfer rate.
SATA3_5
SATAIII_2 SATAIII_4
USB_PWR
USB_PWR
P+7
P-7
P+6
P-6
GND
GND
DUMMY
1
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB10_11) ports on the I/O panel, there are
(see p.12 No. 27) three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB8_9)
(see p.12 No. 29)
(9-pin USB6_7)
(see p.12 No. 30)
1
USB_ P WR
P-8
GND
DUMMY
USB_ P WR
P +8
GND
P-9
P +9
1
USB_PWR
P-10
GND
DUMMY
USB_PWR
P+10
GND
P-11
P+11
