1.4 Onboard Headers and Connectors1.4 Onboard Headers and Connectors

1.4 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper

caps over the headers and connectors will cause permanent dam-

age of the motherboard!

•

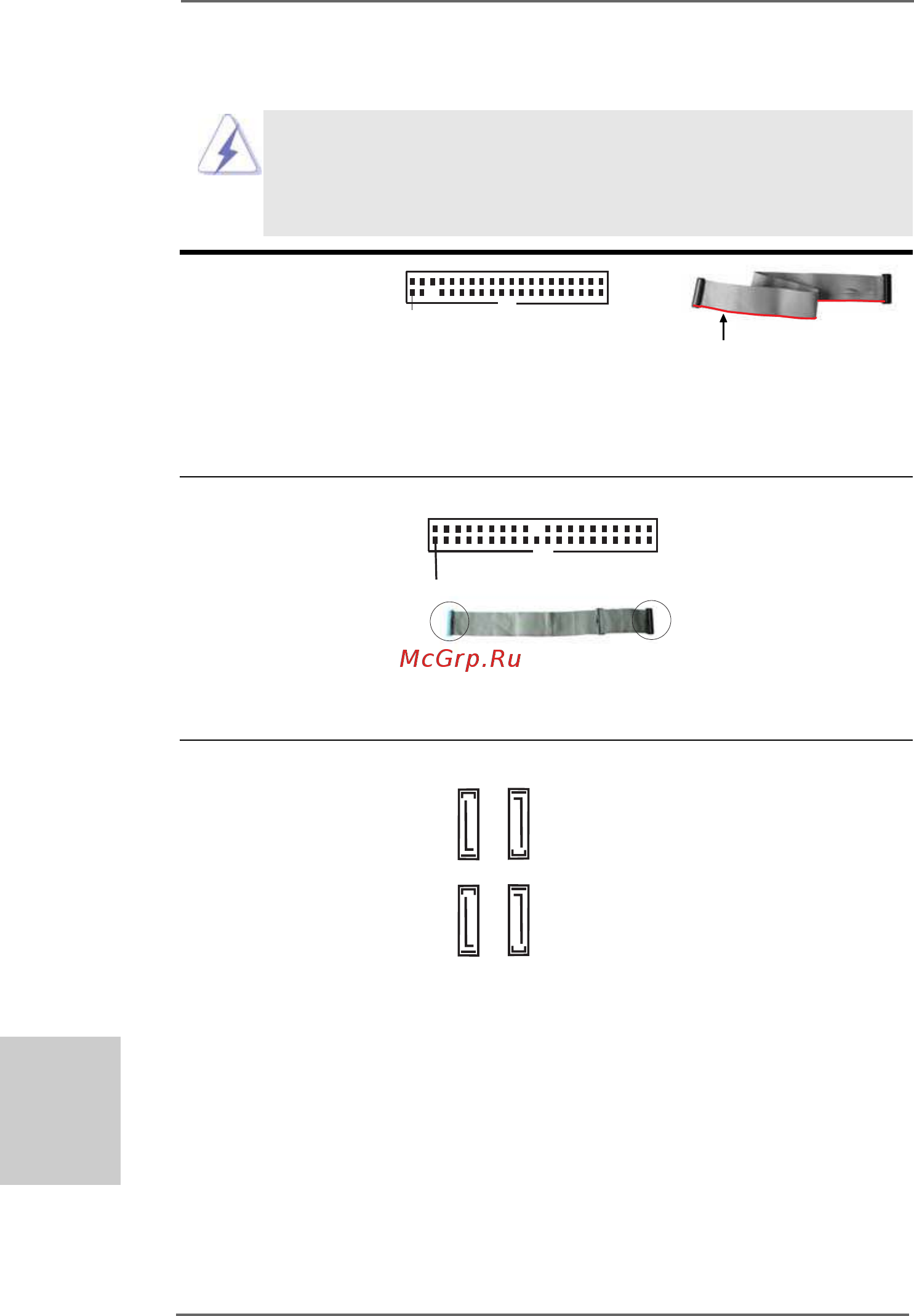

Floppy Connector

(33-pin FLOPPY1)

(see p.2 No. 18)

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector

(39-pin IDE1, see p.2 No. 6)

Note: Please refer to the instruction of your IDE device vendor for the details.

Serial ATA2 Connectors These four Serial ATA2 (SATA2)

(SATAII_1 (PORT 0.0): connectors support SATA2

see p.2, No. 9) or SATA hard disk for internal

(SATAII_2 (PORT 0.1): storage devices. The current

see p.2, No. 5) SATA2 interface allows up to

(SATAII_3 (PORT 1.0): 3.0 Gb/s data transfer rate.

see p.2, No. 8)

(SATAII_4 (PORT 1.1):

see p.2, No. 7)

connect the black end

to the IDE devices

connect the blue end

to the motherboard

IDE1

PIN1

80-conductor ATA 66/100/133 cable

SATAII_3 SATAII_1

(PORT 1.0) (PORT 0.0)

SATAII_4 SATAII_2

(PORT 1.1) (PORT 0.1)
