22
22
2
ASRock N68-GS4 FX / N68-S4 FX Motherboard
EnglishEnglish
EnglishEnglish
English

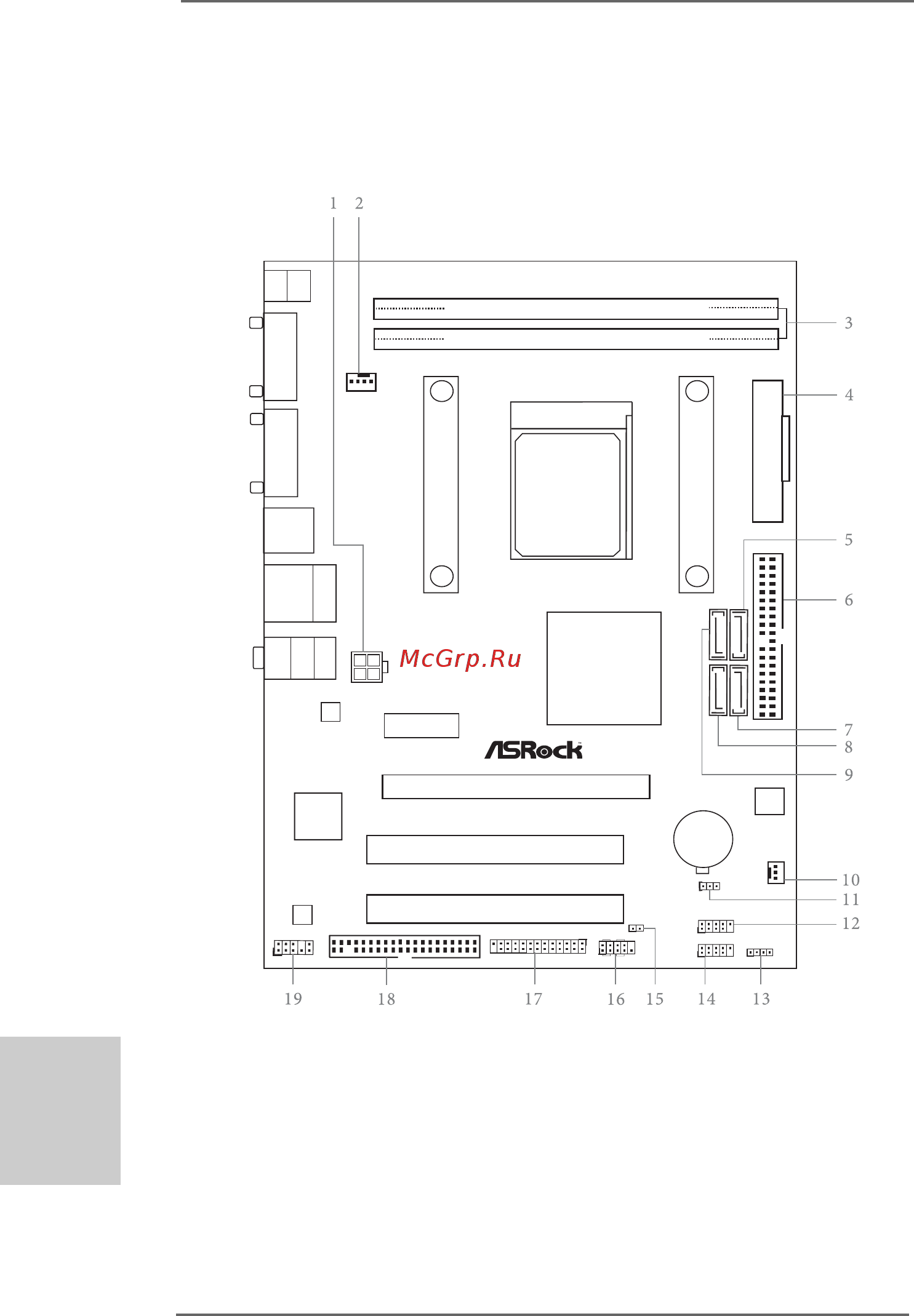

Motherboard LayoutMotherboard Layout
Motherboard LayoutMotherboard Layout
Motherboard Layout
(N68-(N68-
(N68-(N68-
(N68-
GS4 FX / N68-S4 FX)GS4 FX / N68-S4 FX)
GS4 FX / N68-S4 FX)GS4 FX / N68-S4 FX)
GS4 FX / N68-S4 FX)
1 ATX 12V Power Connector (ATX12V1) 10 Chassis Fan Connector (CHA_FAN1)
2 CPU Fan Connector (CPU_FAN1) 11 Clear CMOS Jumper (CLRCMOS1)
3 2 x 240-pin DDR3 DIMM Slots 12 USB 2.0 Header (USB4_5)
(Dual Channel: DDR3_A1, DDR3_B1) 13 Chassis Speaker Header (SPEAKER1)
4 ATX Power Connector (ATXPWR1) 14 USB 2.0 Header (USB6_7)
5 SATA2 Connector (SATAII_2 (PORT 0.1)) 15 Chassis Intrusion Header (CI1)
6 Primary IDE Connector (IDE1) 16 System Panel Header (PANEL1)
7 SATA2 Connector (SATAII_4 (PORT 1.1)) 17 Print Port Header (LPT1)
8 SATA2 Connector (SATAII_3 (PORT 1.0)) 18 Floppy Connector (FLOPPY1)
9 SATA2 Connector (SATAII_1 (PORT 0.0)) 19 Front Panel Audio Header (HD_AUDIO1)
NVIDIA
GeForce
7025 /
nForce
630a
FSB800
DDR3_B1 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
IDE1
SATAII_3
SATAII_4 SATAII_2
(PORT 1.0)
(PORT 1.1) (PORT 0.1)
SATAII_1
(PORT 0.0)
CHA_FAN1
SPEAKER1
1
HDLED RESET
PLED PWRBTN
1
PANEL 1
11
1
USB6_7
ATXPWR1
PCIE1
AUDIO
CODEC
HD_AUDIO1
1
8Mb
BIOS
FLOPPY1
CMOS
BATTERY
1
CLRCMOS1
CPU_FAN1
ATX12V1
Super
I/O
LAN
PHY
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PS2
Mouse
PS2
Keyboard
VGA1
USB 2.0
T: USB2
B: USB3
PCIE2
PCI1
PCI2
1
USB4_5
1
LPT1
COM1
SOCKET AM3
RoHS
CI1
1
XFast USB
XFast LAN
XFast RAM
