1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout

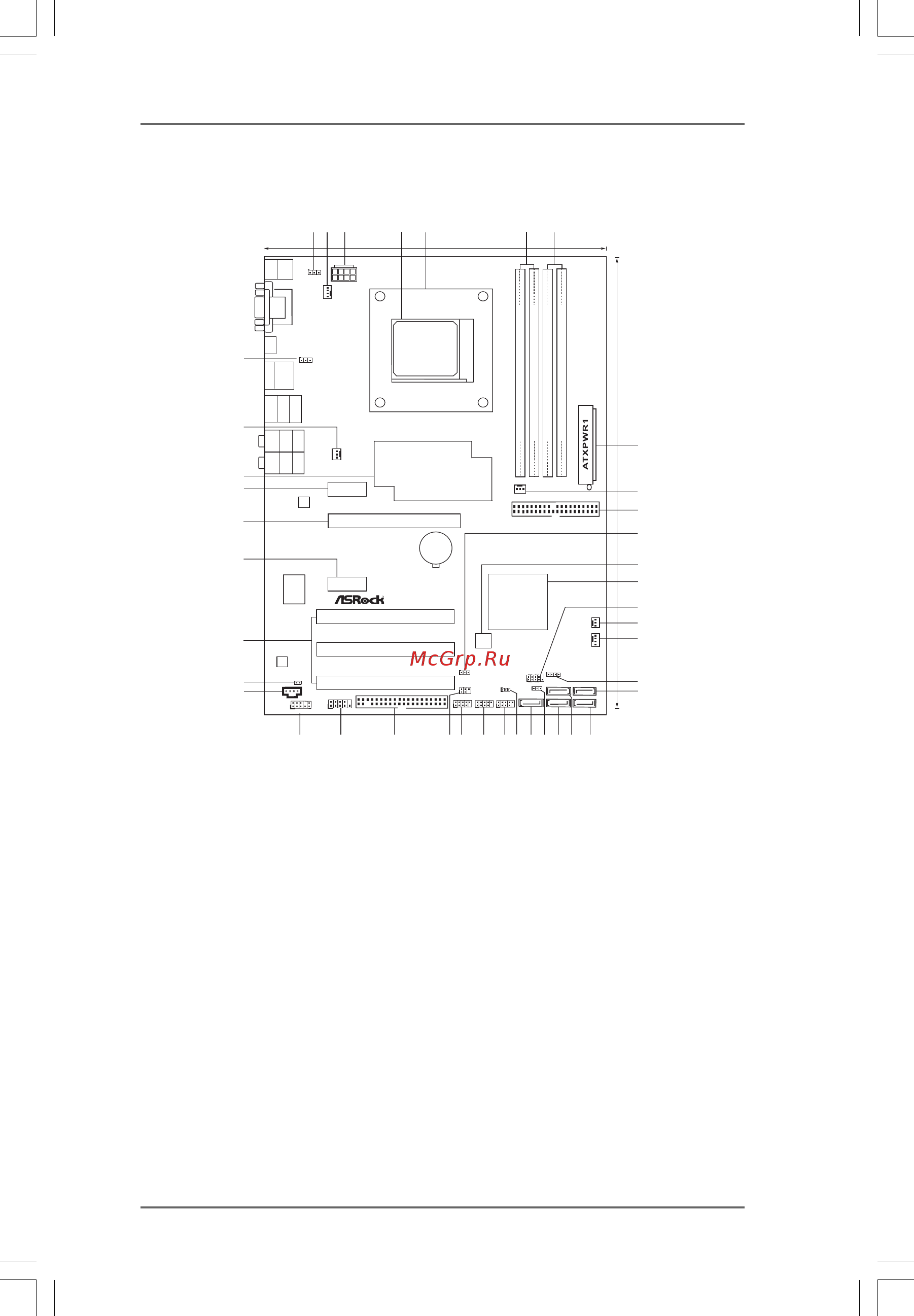

1.3 Motherboard Layout
IDE1
SOCKET AM3
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
FSB800
DDR3_A2 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
AMD
SB710
Chipset
PS2_USB_PW1
1
ATX12V1
CPU_FAN1
8Mb
BIOS
CMOS
BATTERY
CLRCMOS1
1
COM1
LAN
PHY
1
AUDIO
CODEC
Super
I/O
IR1
1
CD1
HD_AUDIO1
1
PCIE1
1
HDMI_SPDIF1
FLOPPY1
HDLED RESET
PLED PWRBTN
1
PANEL1
NB_FAN1
SPEAKER1
1
USB8_9
1
USB6_7
1
22.4cm (8.8-in)
30.5cm (12.0-in)
6
7
1
24
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
2122
23
24
25262728
29
30
31
32
33
AMD
880G
Chipset
PCIE2
PCI1
PCI2
PCI3
RoHS
USB10_11
1
PWR_FAN1
34
35
PCIE3
1
PLED1
36
37
38
39
USB 2.0
T: U SB 2
B: USB3
PS2
Keyboard
VGA1
DVI_CON1
HDMI1
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
eSATAII_1
USB 2.0
T: U SB 4
B: USB5
USB_PW2
1
USB_PW1
1
SATAII_5(PORT 4) SATAII_3(PORT 2) SATAII_1(PORT 0)
SATAII_4(PORT 3) SATAII_2(PORT 1)
CHA_FAN1
CHA_FAN2
SATA3 6Gb/s
Hybrid CrossFire
ErP/EuP Ready
USB 3.0
880GXH/USB3
PCI Express 2.0
Designed in Taipei
Six-Core CPU Ready
Phenom II
F
SB2.6GHz
D
DR3 1800
Dual Channel
1
40W CPU
AM3
DX10.1
HT3.0
40
USB 3.0:USB1
USB 2.0:USB0
1 PS2_USB_PW1 Jumper 21 SATAII Connector (SATAII_3 (PORT 2), Blue)
2 CPU Fan Connector (CPU_FAN1) 22 Power LED Header (PLED1)
3 ATX 12V Power Connector (ATX12V1) 23 SATAII Connector (SATAII_5 (PORT 4), Blue)
4 AM3 CPU Socket 24 USB_PW1 Jumper
5 CPU Heatsink Retention Module 25 USB 2.0 Header (USB6_7, Blue)
6 2 x 240-pin DDR3 DIMM Slots 26 USB 2.0 Header (USB8_9, Blue)
(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 27 USB 2.0 Header (USB10_11, Blue)
7 2 x 240-pin DDR3 DIMM Slots 28 Infrared Module Header (IR1)
(Dual Channel B: DDR3_A2, DDR3_B2; White) 29 Floppy Connector (FLOPPY1)
8 ATX Power Connector (ATXPWR1) 30 Serial Port Connector (COM1)
9 Northbridge Fan Connector (NB_FAN1) 31 Front Panel Audio Header
10 Primary IDE Connector (IDE1, Blue) (HD_AUDIO1, White)
11 Clear CMOS Jumper (CLRCMOS1) 32 Internal Audio Connector: CD1 (Black)
12 SPI Flash Memory (8Mb) 33 HDMI_SPDIF Header
13 Southbridge Controller (HDMI_SPDIF1, White)
14 System Panel Header (PANEL1, White) 34 PCI Slots (PCI1-3)
15 Chassis Fan Connector (CHA_FAN2) 35 PCI Express 2.0 x1 Slot (PCIE3; White)
16 Chassis Fan Connector (CHA_FAN1) 36 PCI Express 2.0 x16 Slot (PCIE2; Blue)
17 Chassis Speaker Header (SPEAKER 1, White) 37 PCI Express 2.0 x1 Slot (PCIE1; White)
18 SATAII Connector (SATAII_2 (PORT 1), Blue) 38 Northbridge Controller
19 SATAII Connector (SATAII_1 (PORT 0), Blue) 39 Power Fan Connector (PWR_FAN1)
20 SATAII Connector (SATAII_4 (PORT 3), Blue) 40 USB_PW2 Jumper
