![ASRock 880GXH/USB3 [27/61] 2 7 2 7 2 7 2 7](/img/pdf.png)
ASRock 880GXH/USB3 [27/61] 2 7 2 7 2 7 2 7

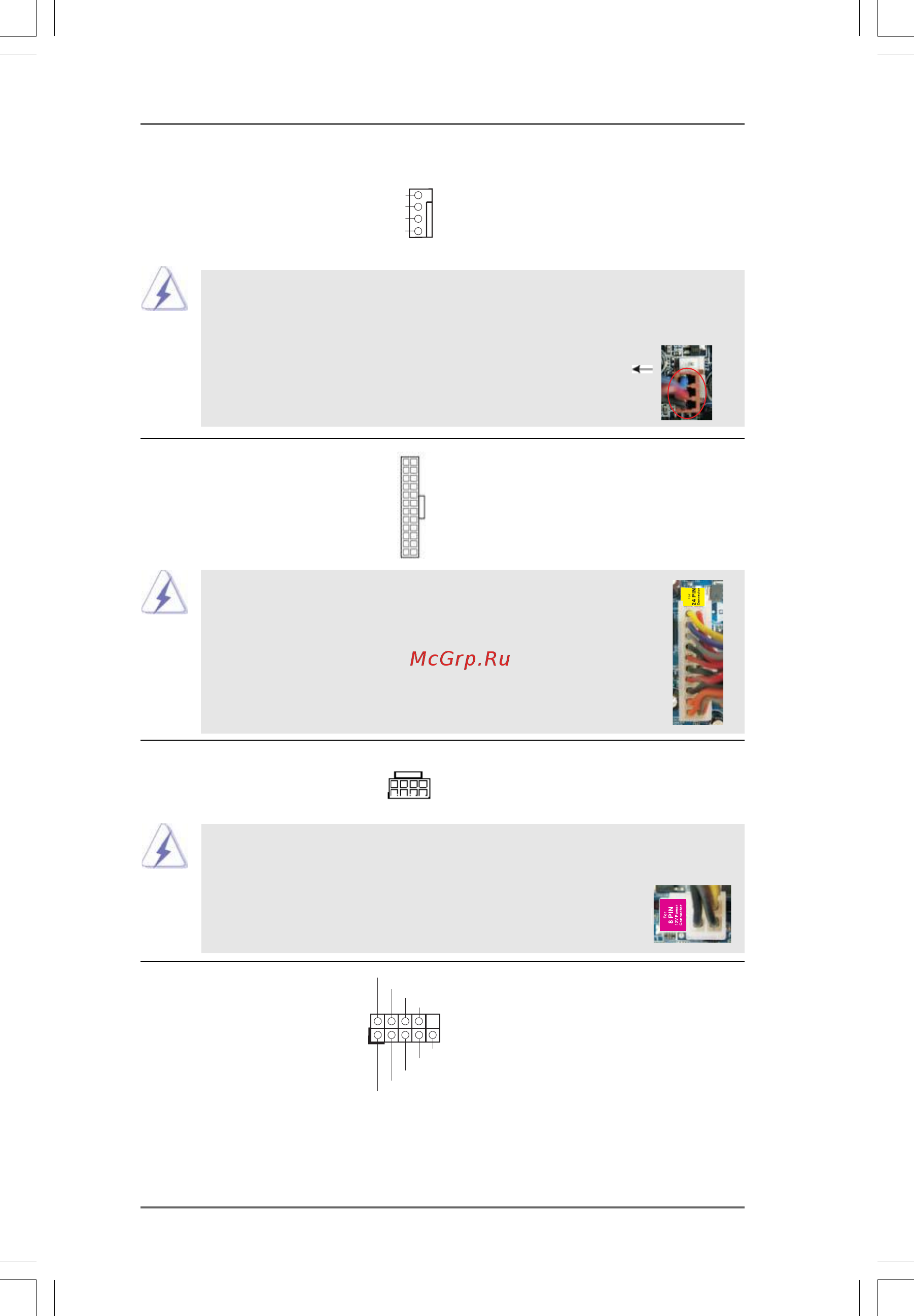

![ASRock 880GXH/USB3 [27/61] 2 7 2 7 2 7 2 7](/views2/1691396/page27/bg1b.png)
2727
2727
27
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to this connector and
(see p.11 No. 2) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
4
3
2
1
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1) supply to this connector.
(see p.11 No. 8)
12
1
24
13
20-Pin ATX Power Supply Installation
Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your power
supply along with Pin 1 and Pin 13.
12
1
24
13
ATX 12V Power Connector Please connect an ATX 12V
(8-pin ATX12V1) power supply to this connector.
(see p.11 No. 3)
8 5
4 1
Serial port Header This COM1 header supports a
(9-pin COM1) serial port module.
(see p.11 No.30)
CCTS #1
DDSR#1
DDTR#1
RRX D 1
DDCD#1
TTXD1
GN D
RRTS #1
RRI#1
1
4-Pin ATX 12V Power Supply Installation
Though this motherboard provides 8-pin ATX 12V power connector, it can still work
if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power
supply, please plug your power supply along with Pin 1 and Pin 5.
8 5
4 1
