ASRock N68-GS3 UCC / N68-S3 UCC Motherboard

EnglishEnglish

English

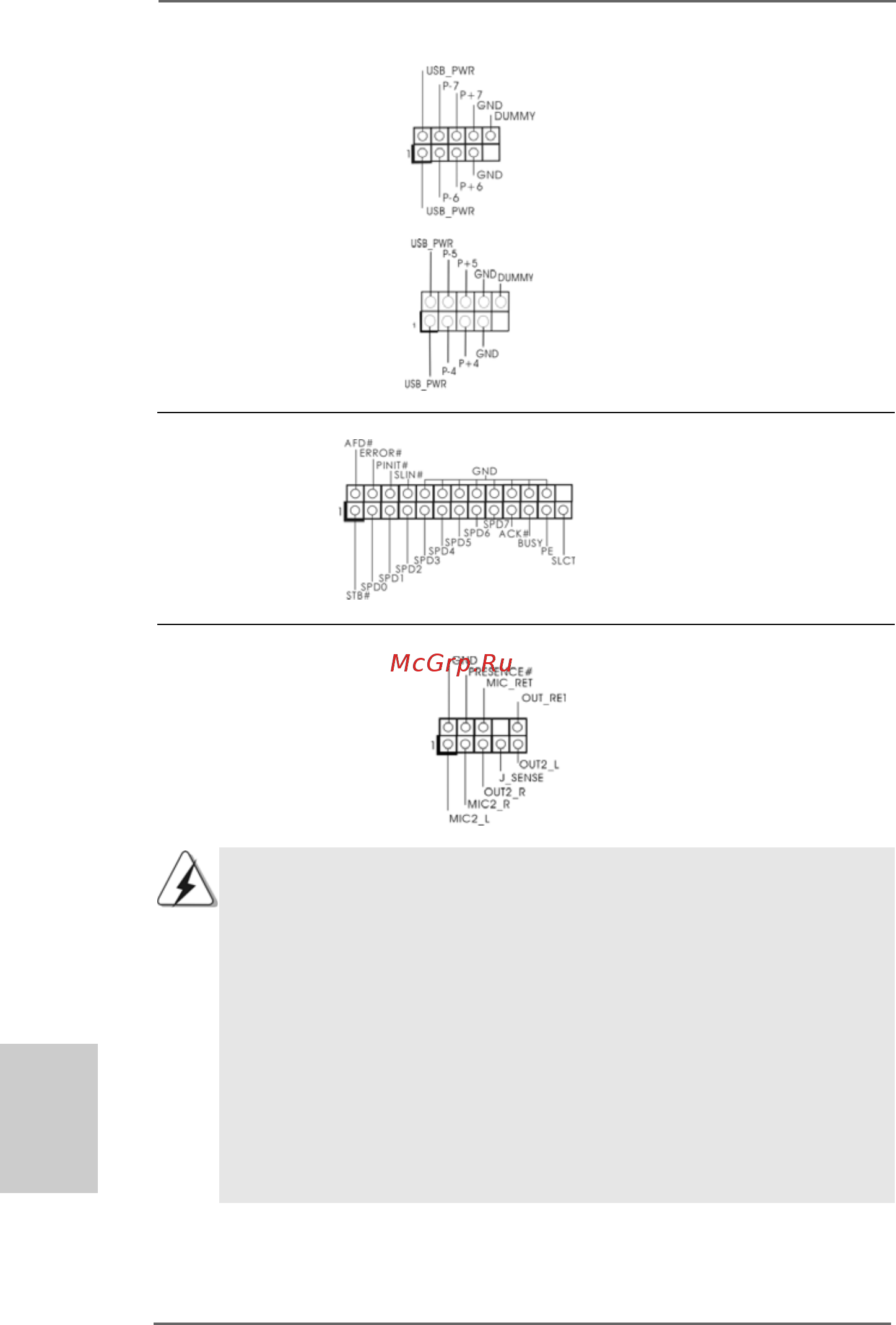

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB6_7) ports on the I/O panel, there are

(see p.2 No. 16) two USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB

2.0 ports.

(9-pin USB4_5)

(see p.2 No. 14)

Front Panel Audio Header This is an interface for the front

(9-pin HD_AUDIO1) panel audio cable that allows

(see p.2, No. 20) convenient connection and

control of audio devices.

Print Port Header This is an interface for print

(25-pin LPT1) port cable that allows

(see p.2 No. 18) convenient connection of printer

devices.

1. High Definition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select

Chipset Configuration. Set the Front Panel Control option from

[Auto] to [Enabled].
