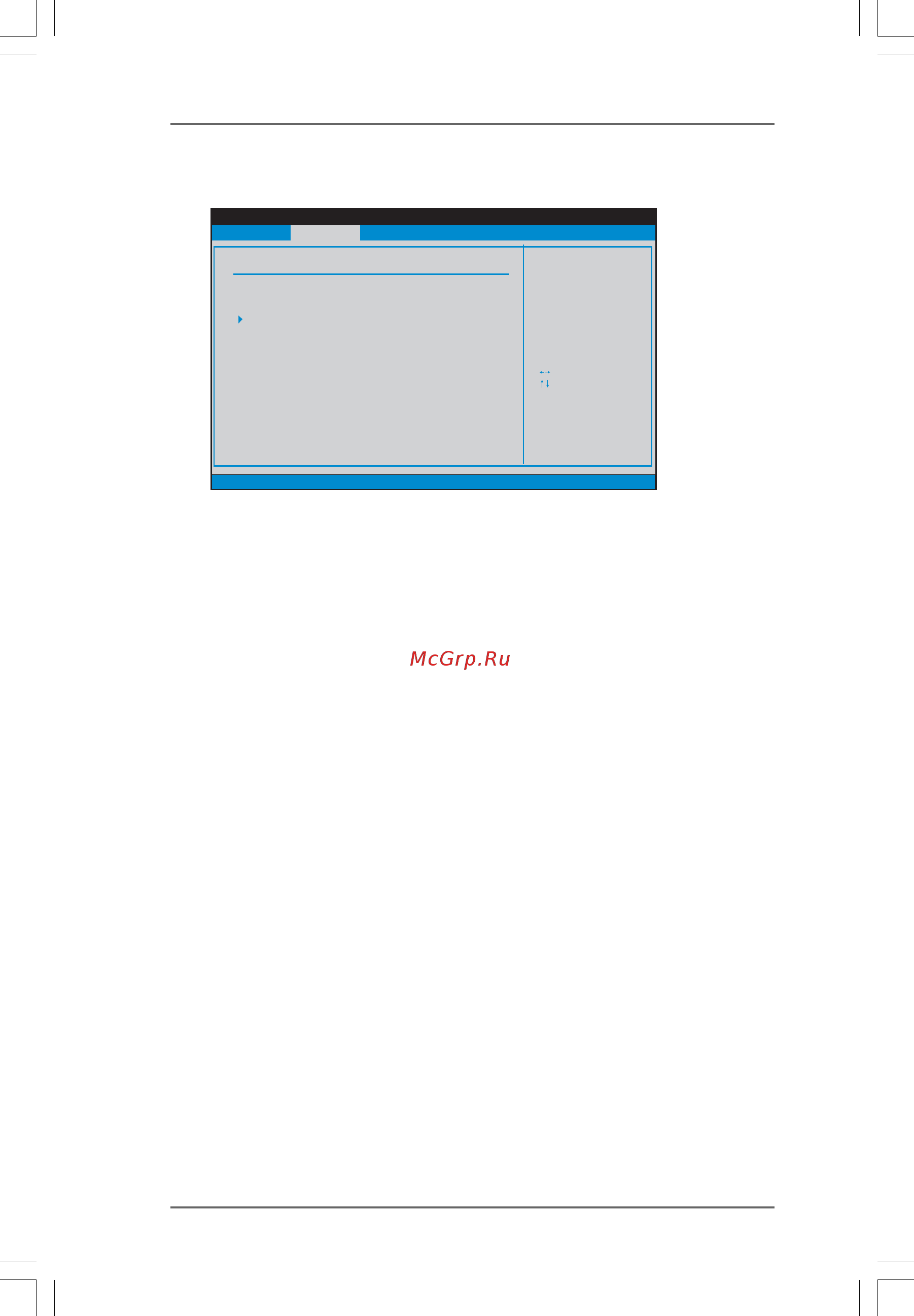

BIOS SETUP UTILITY
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
Chipset Settings
Front Panel
OnBoard Lan
Dr. LAN
Primary Graphics Adapter
[PCI]
[Auto]
[Auto]
[Enabled]
Select Screen
Select Item
+ - Change Option
F1 General Help
F10 Save and Exit
ESC Exit
F9 Load Defaults
Advanced
Auto/Enable/Disable
Onboard HD Audio.
Onboard HD Audio
[Auto]
Link speed : 10Mbps
3.4.23.4.2
3.4.23.4.2
3.4.2
Chipset ConfigurationChipset Configuration
Chipset ConfigurationChipset Configuration
Chipset Configuration
Onboard HD Audio
Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If
you select [Auto], the onboard HD Audio will be disabled when PCI Sound
Card is plugged.
Front Panel
Select [Auto] or [Disabled] for the onboard HD Audio Front Panel.
OnBoard Lan
This allows you to enable or disable the onboard Lan feature.
Dr. LAN
This allows you to select “LAN Cable Detection” function.
Primary Graphics Adapter
This item will switch the PCI Bus scanning order while searching for video
card. It allows you to select the type of Primary VGA in case of multiple
video controllers. The default value of this feature is [PCI]. Configuration
options: [PCI] and [PCI Express].
