ASRock ALiveNF5-eSATA2+ Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

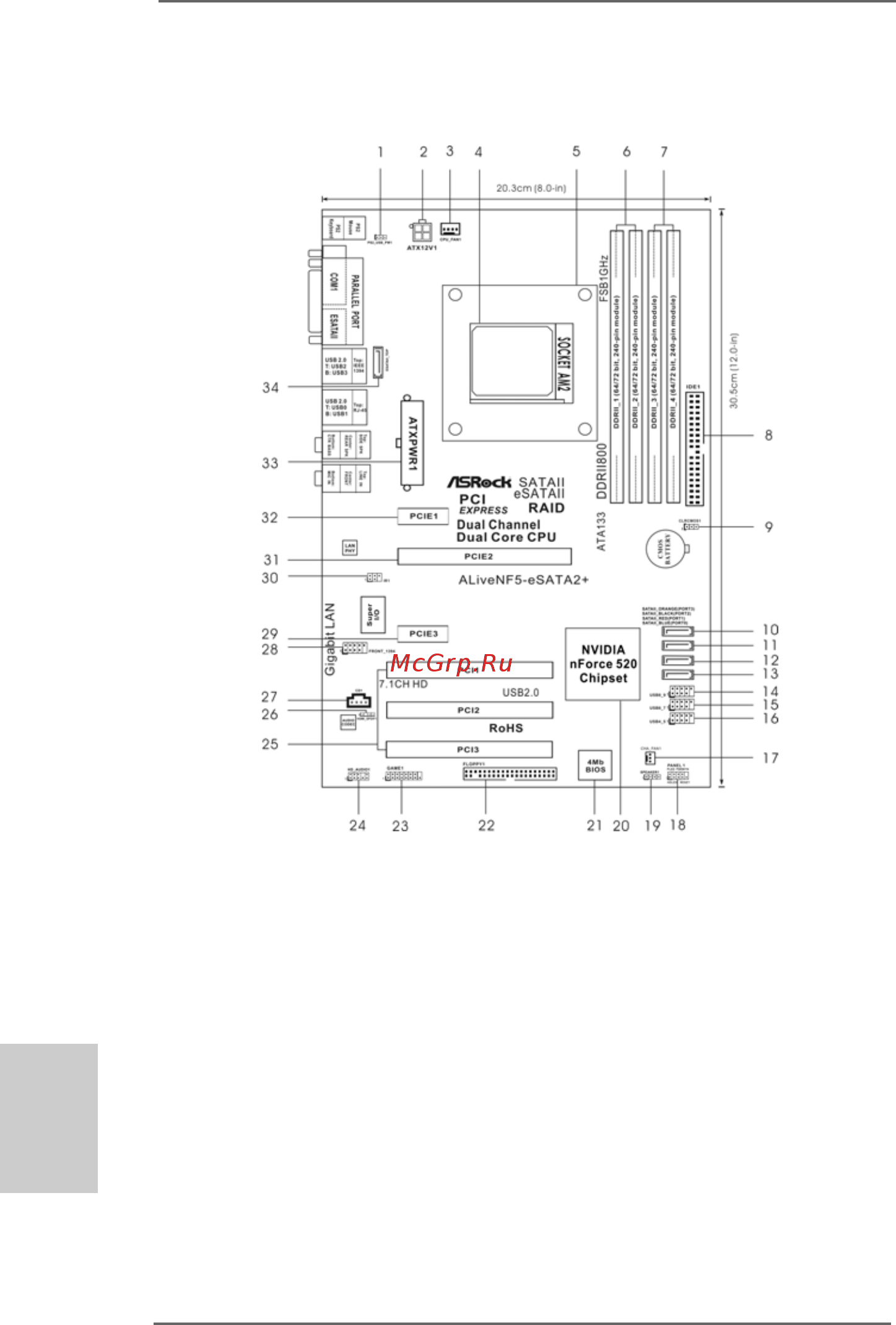

1 PS2_USB_PW1 Jumper 18 System Panel Header (PANEL1)

2 ATX 12V Power Connector (ATX12V1) 19 Chassis Speaker Header (SPEAKER 1)

3 CPU Fan Connector (CPU_FAN1) 20 NVIDIA nForce 520 Single Chip

4 AM2 940-Pin CPU Socket 21 Flash Memory

5 CPU Heatsink Retention Module 22 Floppy Connector (FLOPPY1)

6 2 x 240-pin DDRII DIMM Slots 23 Game Port Header (GAME1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 24 Front Panel Audio Header (HD_AUDIO1)

7 2 x 240-pin DDRII DIMM Slots 25 PCI Slots (PCI1- 3)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 26 HDMI_SPDIF Header (HDMI_SPDIF1)

8 Primary IDE Connector (IDE1, Blue) 27 Internal Audio Connector: CD1 (Black)

9 Clear CMOS Jumper (CLRCMOS1) 28 Front Panel IEEE 1394 Header

10 SATAII Connector (SATAII_ORANGE (PORT3)) (FRONT_1394)

11 SATAII Connector (SATAII_BLACK (PORT2)) 29 PCI Express x1 Slot (PCIE3)

12 SATAII Connector (SATAII_RED (PORT1)) 30 DeskExpress Hot Plug Detection Header

13 SATAII Connector (SATAII_BLUE (PORT0)) (IR1)

14 USB 2.0 Header (USB8_9, Blue) 31 PCI Express x16 Slot (PCIE2)

15 USB 2.0 Header (USB6_7, Blue) 32 PCI Express x1 Slot (PCIE1)

16 USB 2.0 Header (USB4_5, Blue) 33 ATX Power Connector (ATXPWR1)

17 Chassis Fan Connector (CHA_FAN1) 34 eSATAII Connector (eSATAII_TOP)
