ASRock ALiveNF5-eSATA2+ Motherboard

EnglishEnglish

English

ASRASR

ASR

ock 1394_eSock 1394_eS

ock 1394_eS

AII I/O PlusAII I/O Plus

AII I/O Plus

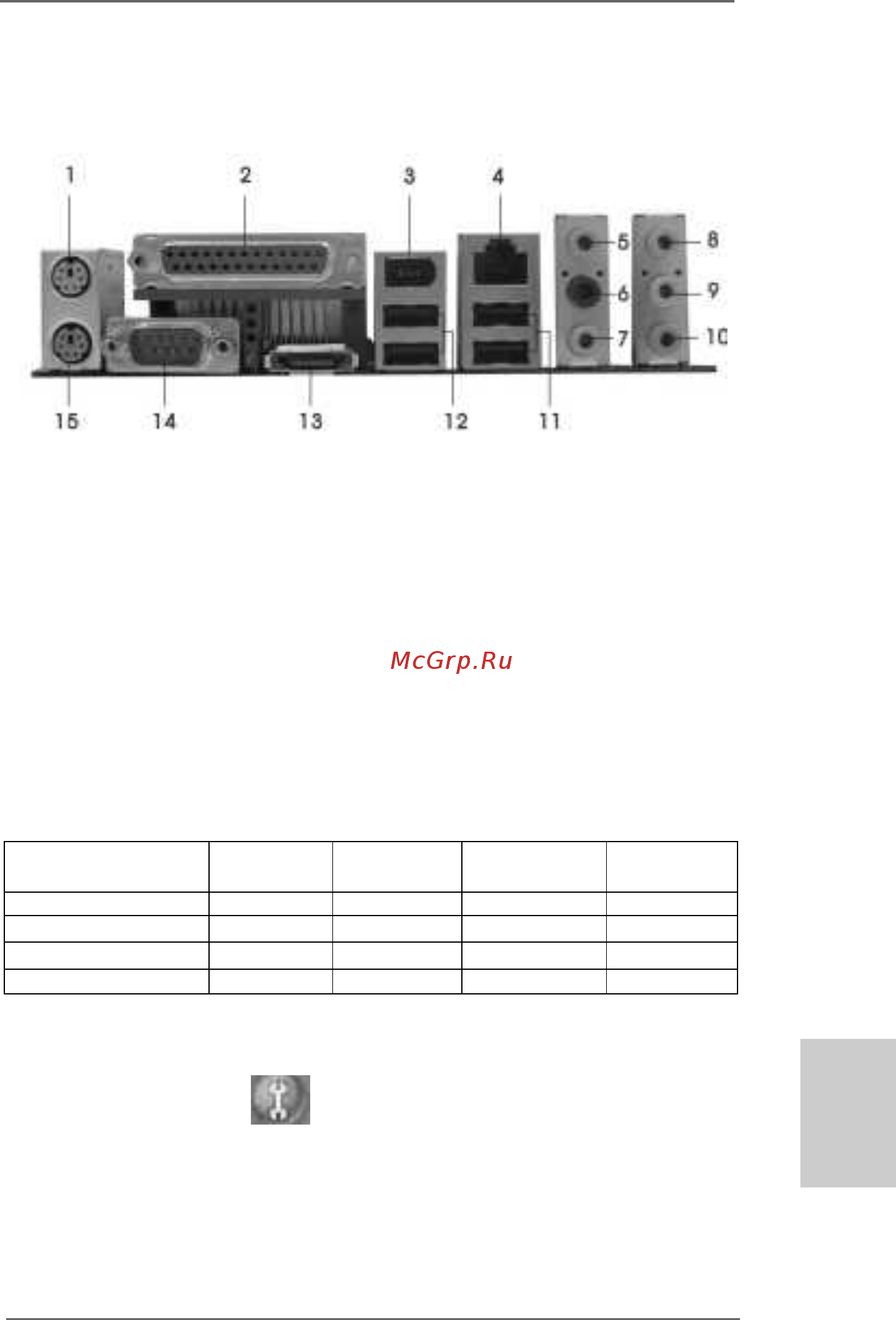

1 PS/2 Mouse Port (Green) * 9 Front Speaker (Lime)

2 Parallel Port 10 Microphone (Pink)

3 IEEE 1394 Port 11 USB 2.0 Ports (USB23)

4 RJ-45 Port 12 USB 2.0 Ports (USB01)

5 Side Speaker (Gray) 13 eSATAII Port

6 Rear Speaker (Black) 14 COM Port

7 Central / Bass (Orange) 15 PS/2 Keyboard Port (Purple)

8 Line In (Light Blue)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output ChannelsFront Speaker Rear Speaker Central / Bass Side Speaker

(No. 9) (No. 6) (No. 7) (No. 5)

2 V -- -- --

4VV----

6VVV--

8VVVV

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.
