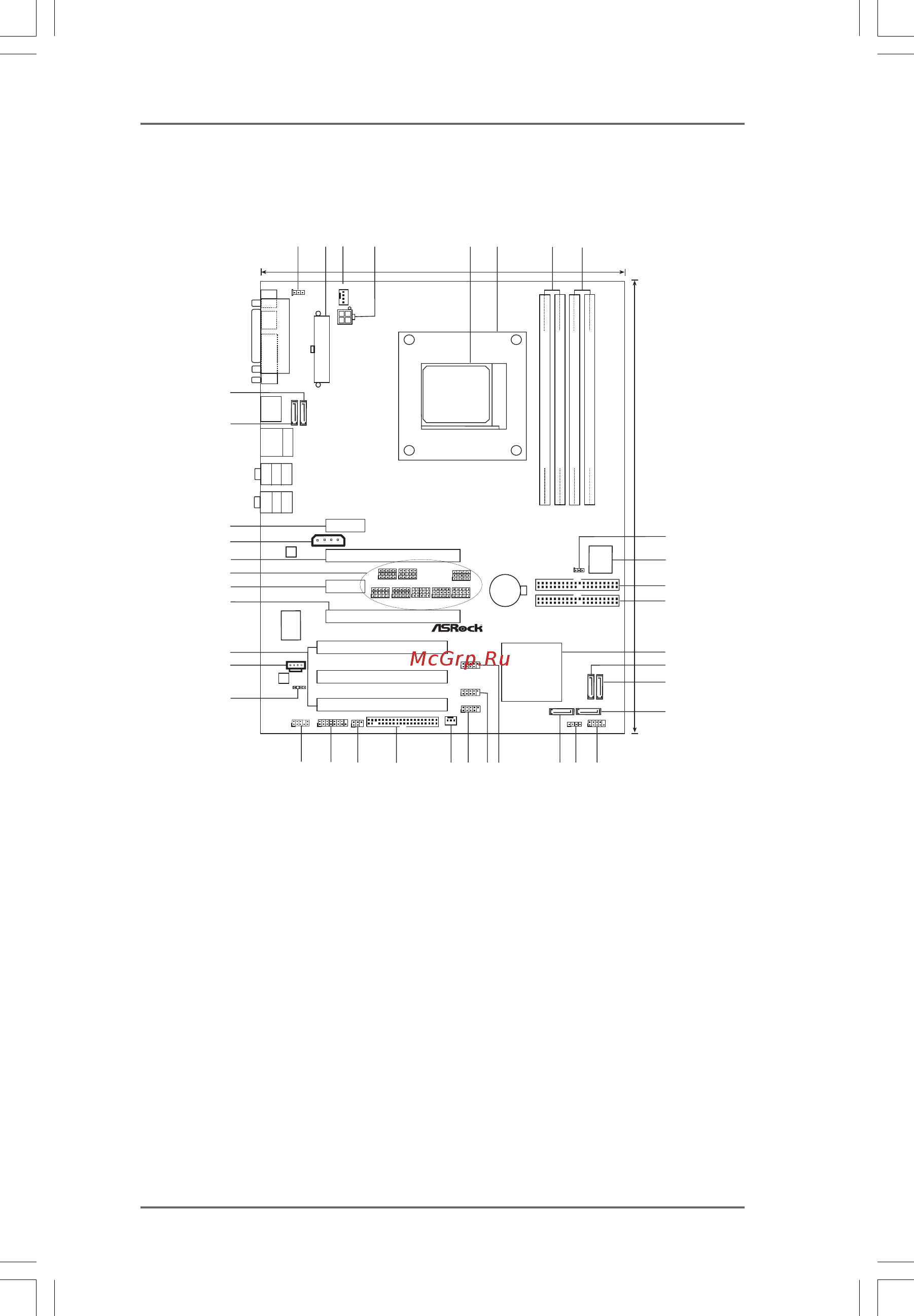

1.5 Motherboard Layout1.5 Motherboard Layout
1.5 Motherboard Layout1.5 Motherboard Layout
1.5 Motherboard Layout
`
ULi
M1697
Chipset
1
J12
1
J13
1
J14
1
J15
1
2
4
3
5
7
8
9
6
16
11
13
14
15
12
10
17
18
19
20
21
22
23
24
25
26
27
29
28
30
PARALLEL PORT
COM1
PS2
Mouse
PS2
Keyboard
USB 2.0
T:USB0
B: USB1
Top:
RJ-45
eSATAII_12
T:eSATAII_1
B: eSATAII_2
eSATAII_TOP
eSATAII_BOTTOM
ATXPWR1
SLI/XFIRE_PWR1
PCIE2
IDE2
IDE1
ATX12V1
1
PS2_USB_PWR1
eSATAII
PCI
EXPRESS
RoHS
ATA133
AM2XLI-eSATA2
Super
I/O
LAN
PHY
AUDIO
CODEC
CD1
IR1
1
CHA_FAN1
FLOPPY1
1
HD_AUDIO1
HDLED RESET
PLED PWRBTN
USB45
1
SPEAKER1
1
PANEL1
1
1
USB67
11
GAME1
1
SATAII_RED
SATAII_BLUE
SATAII_BLACK
SATAII_ORANGE
4Mb
BIOS
CMOS
Battery
CLRTC1
1
SATAII
1
J16
1
J17
J18
1
J19
1
7.1CH HD
USB2.0
30.5cm (12.0 in)
24.4cm (9.6 in)
31
32
33
34
35
36
37
38
SOCKET AM2
FSB800
DDRII_1 (64/72 bit, 240-pin module)
DDRII_2 (64/72 bit, 240-pin module)
FSB800
DDRII_3 (64/72 bit, 240-pin module)
DDRII_4 (64/72 bit, 240-pin module)
DDRII800
Dual Core CPU
FSB1GHz
Dual Channel
RAID
CPU_FAN1
Top:
REAR SPK
Center:
SIDE SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PCIE1
PCIE3
PCIE4
PCI1
PCI2
PCI3
USB23
11
1
HDMI_SPDIF1
1 PS2_USB_PWR1 Jumper 19 Serial ATAII Connector (SATAII_RED)
2 ATX Power Connector (ATXPWR1) 20 USB 2.0 Header (USB23, Blue)
3 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB45, Blue)
4 ATX 12V Power Connector (ATX12V1) 22 USB 2.0 Header (USB67, Blue)
5 AM2 940-Pin CPU Socket 23 Chassis Fan Connector (CHA_FAN1)
6 CPU Heatsink Retention Module 24 Floppy Connector (FLOPPY1)
7 2 x 240-pin DDRII DIMM Slots 25 Infrared Module Header (IR1)
(Dual Channel A: DDRII_1, DDRII_2; Yellow) 26 Game Port Header (GAME1)
8 2 x 240-pin DDRII DIMM Slots 27 Front Panel Audio Header (HD_AUDIO1)
(Dual Channel B: DDRII_3, DDRII_4; Orange) 28 HDMI_SPDIF Header (HDMI_SPDIF1)
9 Clear CMOS Jumper (CLRTC1) 29 Internal Audio Connector: CD1 (Black)
10 Flash Memory 30 PCI Slots (PCI1- 3)
11 Primary IDE Connector (IDE1, Blue) 31 PCI Express x8 Slot (PCIE4)
12 Secondary IDE Connector (IDE2, Black) 32 PCI Express x1 Slot (PCIE3)
13 ULi M1697 Single Chip 33 J12 - J19 Jumpers
14 Serial ATAII Connector (SATAII_BLUE) 34 PCI Express x16 / x8 Slot (PCIE2)
15 Serial ATAII Connector (SATAII_BLACK) 35 SLI / XFIRE Power Connector
16 Serial ATAII Connector (SATAII_ORANGE) 36 PCI Express x1 Slot (PCIE1)
17 System Panel Header (PANEL1) 37 eSATAII Connector (eSATAII_TOP)
18 Chassis Speaker Header (SPEAKER 1) 38 eSATAII Connector (eSATAII_BOTTOM)
