ASRock NF6-GLAN Motherboard

EnglishEnglish

English

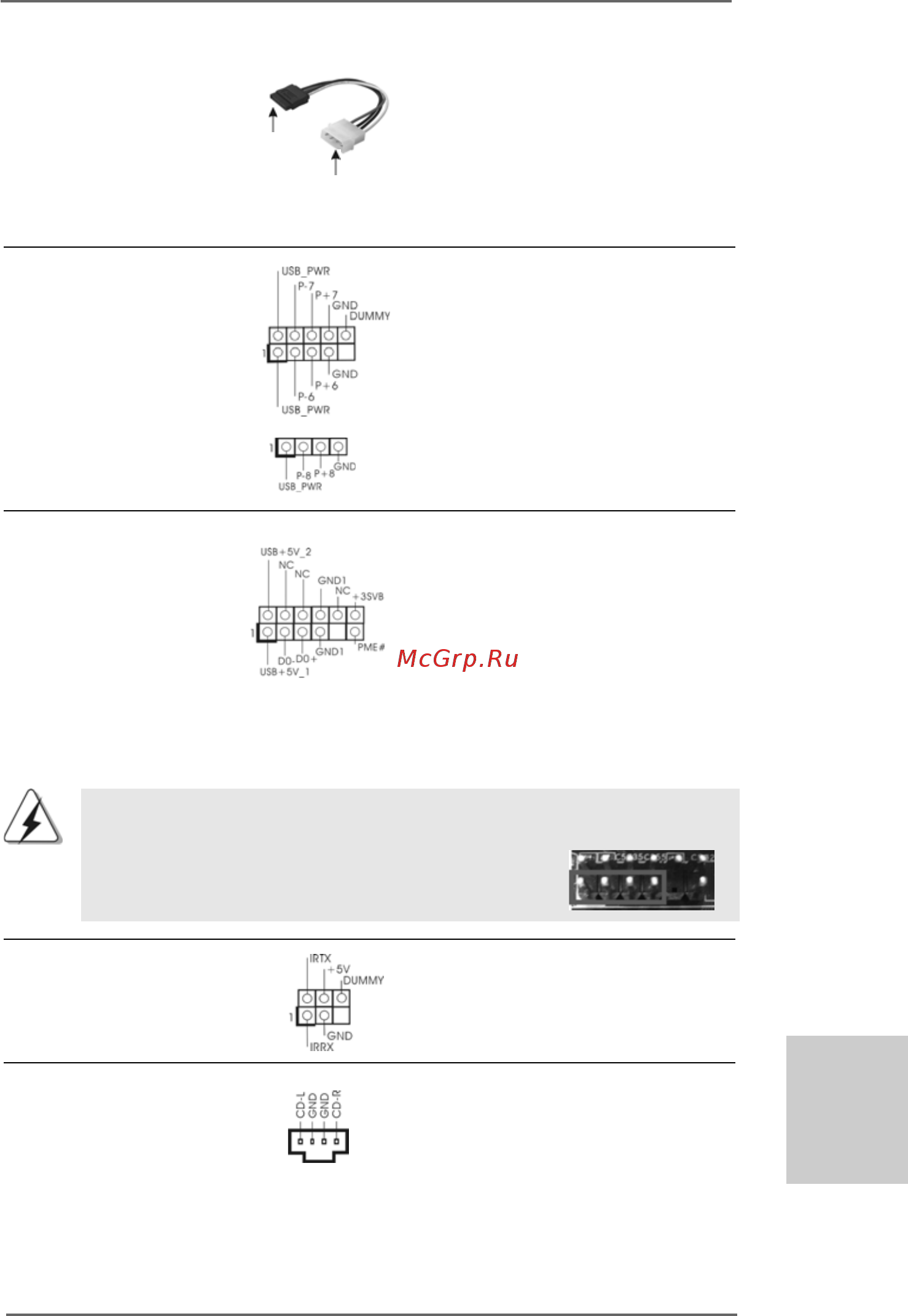

Serial ATA (SATA) Please connect the black end of

Power Cable SATA power cable to the power

(Optional) connector on each drive. Then

connect the white end of SATA

power cable to the power

connector of the power supply.

USB 2.0 Headers Besides six default USB 2.0

(9-pin USB6_7) ports on the I/O panel, there are

(see p.2 No. 14) two USB 2.0 headers on this

motherboard. USB6_7 header

cansupport two USB 2.0 ports,

and USB8 header can support

(4-pin USB8) one USB 2.0 port.

(see p.2 No. 13)

WiFi Header This header supports WiFi+AP

(11-pin WIFI) function with ASRock

(see p.2 No. 25) WiFi-802.11g or WiFi-802.11n

module, an easy-to-use wireless

local area network (WLAN)

adapter. It allows you to create

a wireless environment and

enjoy the convenience of wirel-

ess network connectivity.

If you don’t plan to use WiFi+AP function on this motherboard, this header can be

used as a 4-Pin USB 2.0 header to support one USB 2.0 port. To connect the

4-Pin USB device cable to this header, please refer to this

picture for proper installation.

Internal Audio Connectors This connector allows you

(4-pin CD1) to receive stereo audio input

(CD1: see p.2 No. 23) from sound sources such as

a CD-ROM, DVD-ROM, TV

tuner card, or MPEG card.

Infrared Module Header This header supports an

(5-pin IR1) optional wireless transmitting

(see p.2 No. 21) and receiving infrared module.

CD1

connect to the

power supply

connect to the SATA

HDD power connector
