ASRock NF6-GLAN [2/91] Motherboard l motherboard l motherboard l motherboard l motherboard layout ayout ayout ayout ayout

ASRock NF6-GLAN Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

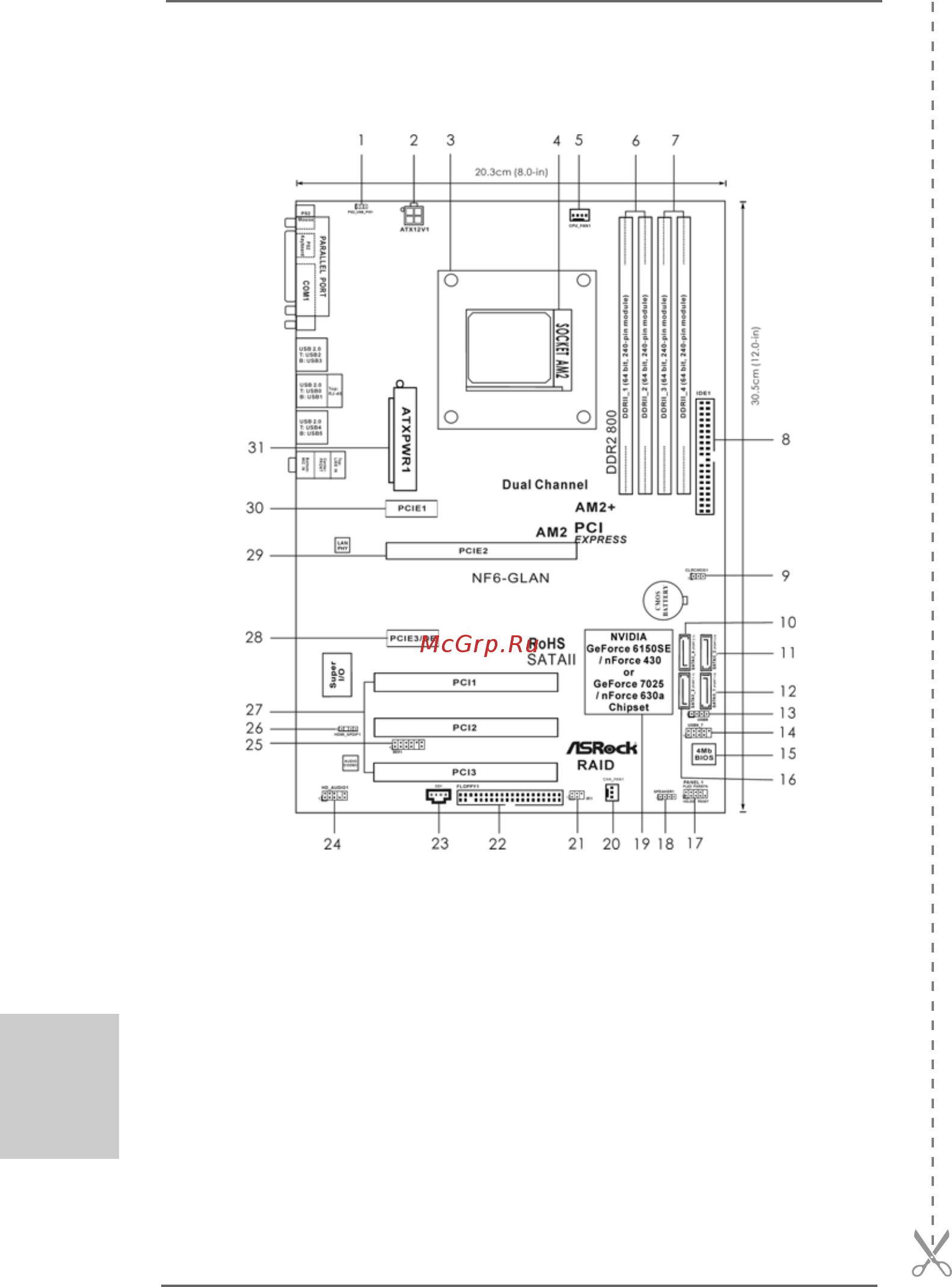

1 PS2_USB_PW1 Jumper 16 SATAII Connector (SATAII_2 (PORT 1.1), Red)

2 ATX 12V Power Connector (ATX12V1) 17 System Panel Header (PANEL1)

3 CPU Heatsink Retention Module 18 Chassis Speaker Header (SPEAKER 1)

4 AM2 940-Pin CPU Socket 19 NVIDIA Chipset

5 CPU Fan Connector (CPU_FAN1) 20 Chassis Fan Connector (CHA_FAN1)

6 2 x 240-pin DDR2 DIMM Slots 21 Infrared Module Header (IR1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 22 Floppy Connector (FLOPPY1)

7 2 x 240-pin DDR2 DIMM Slots 23 Internal Audio Connector: CD1 (Black)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 24 Front Panel Audio Header (HD_AUDIO1)

8 Primary IDE Connector (IDE1, Blue) 25 WiFi Header (WIFI)

9 Clear CMOS Jumper (CLRCMOS1) 26 HDMI_SPDIF Header (HDMI_SPDIF1)

10 SATAII Connector (SATAII_4 (PORT 2.1), Red) 27 PCI Slots (PCI1- 3)

11 SATAII Connector (SATAII_3 (PORT 2.0), Red) 28 PCI Express x1 Slot (PCIE3/DE)

12 SATAII Connector (SATAII_1 (PORT 1.0), Red) 29 PCI Express x16 Slot (PCIE2)

13 USB 2.0 Header (USB8, Blue) 30 PCI Express x1 Slot (PCIE1)

14 USB 2.0 Header (USB6_7, Blue) 31 ATX Power Connector (ATXPWR1)

15 BIOS SPI Chip
