File Name:HBG-60-SPEC 2015-01-29
60W Single Output LED Power Supply
HBG-60 series
DRIVING METHODS OF LED MODULE
This LED power supply is suggested to work in constant current mode area (CC) to drive the LEDs.
Typical LED power supply I-V curve
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
HBG-60 series possess superior working efficiency that up to 91% can be reached in field applications.
EFFICIENCY (%)
LOAD

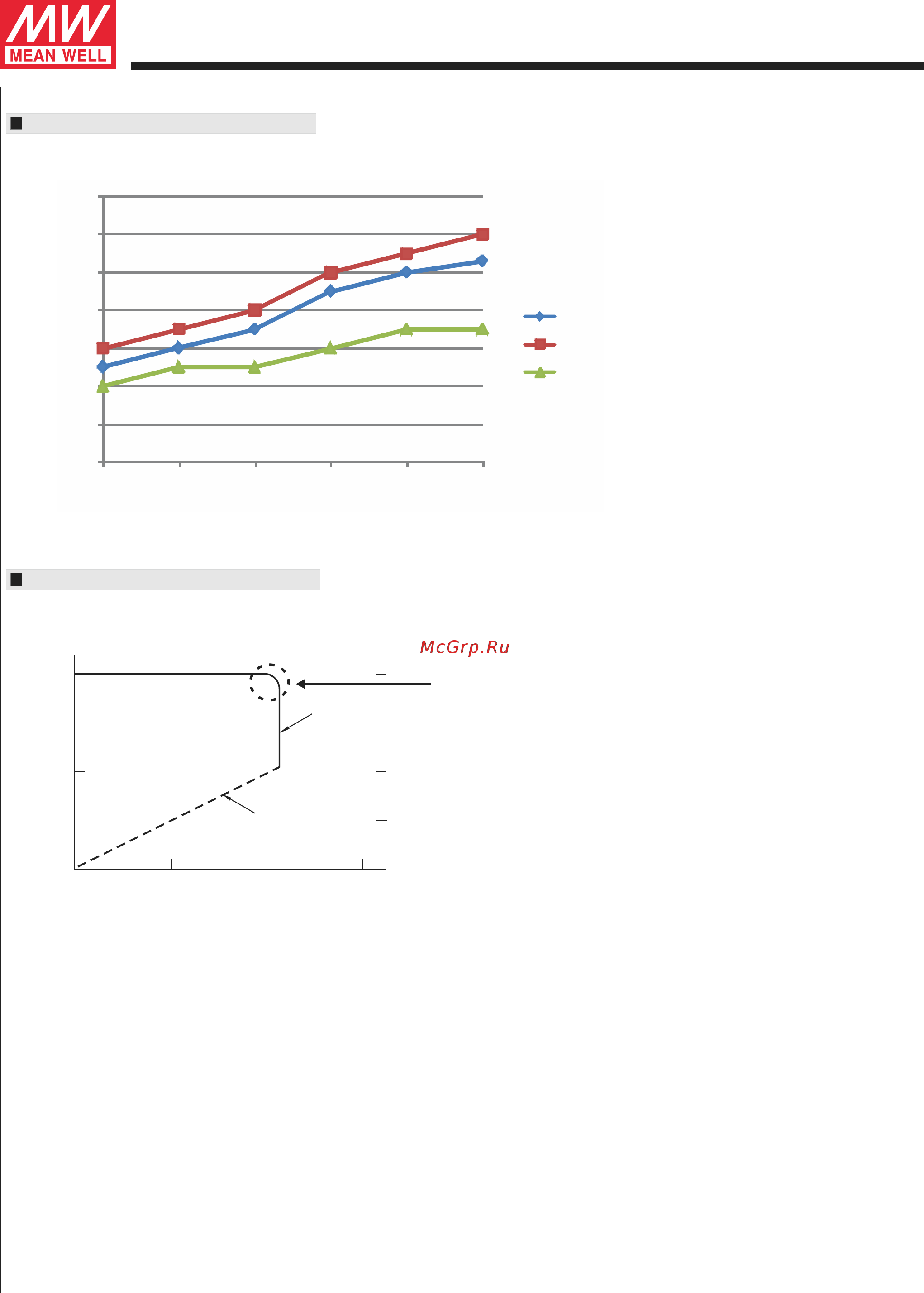

EFFICIENCY vs LOAD (1050mA Model)
100
65%
Vo(%)
50
100
Io(%)
Constant
Current area
Hiccup
Protection
