300W Constant Power Mode LED Driver
HBGC-300 series
File Name:HBGC-300-SPEC 2019-06-24

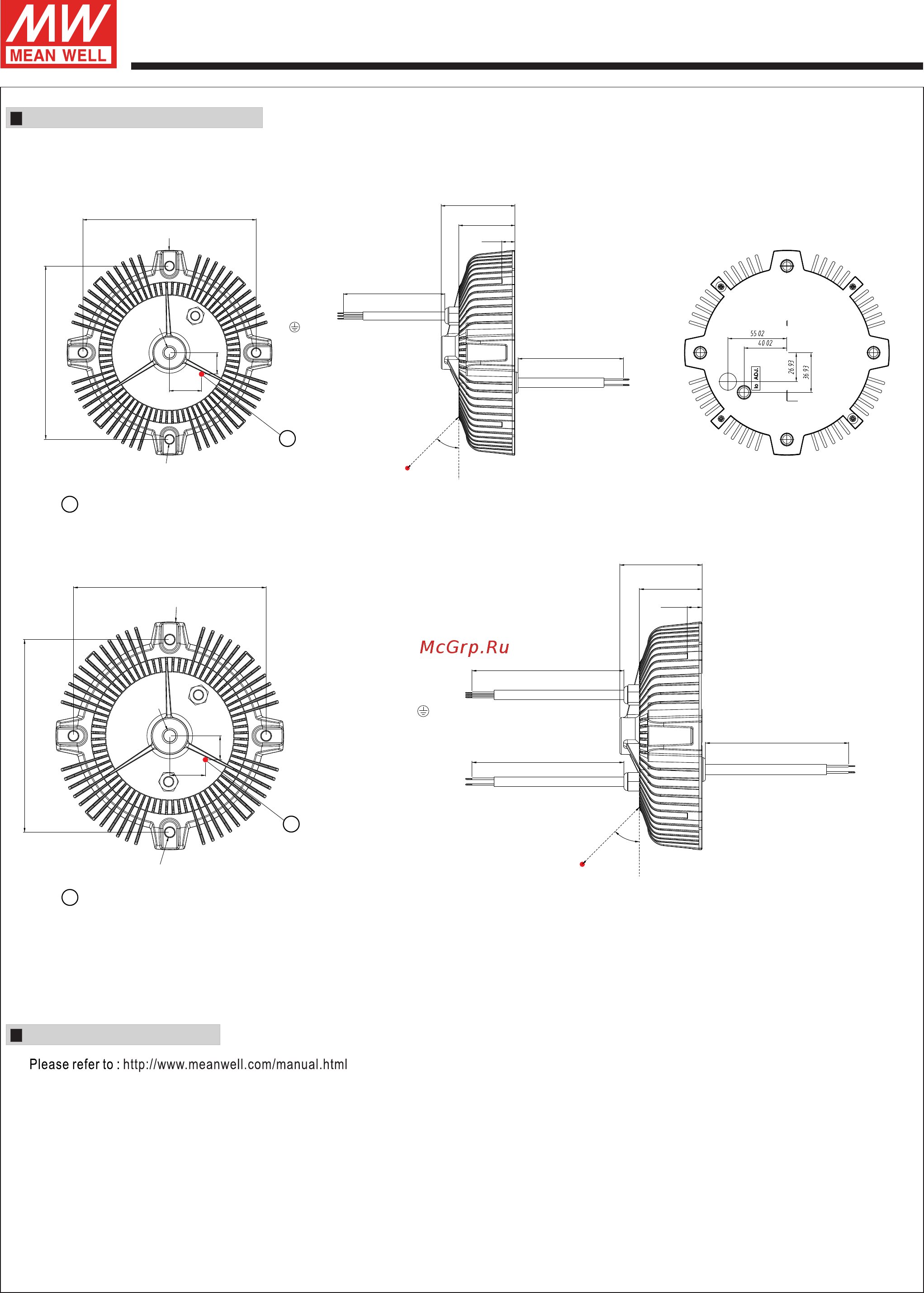

MECHANICAL SPECIFICATION
Case No.213 Unit:mm
※ A-Type
※ AB/DA-Type
SJTW 14AWG*2C
SJTW 18AWG*3C
+V(Red)
-V(Black)
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
Ta
162
162
ψ191.5
4-ψ8.0
12.5
52.5
69
20
30
M12*P1.75-18h
300±20
300±20
150
45°
SJTW 14AWG*2C
SJTW 18AWG*3C
+V(Red)
-V(Black)
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
DIM+,DA+(BLUE)
DIM-,DA-(WHITE)
UL2517 20AWG*2C
Ta
162
162
ψ191.5
4- 8.0ψ
12.5
52.5
69
20
30
M12*P1.75-18h
300±20
300±20
300±20
45°
150
‧Ta: Ambient Temperature measured point
‧ : Max. Case Temperature.(case temperature measured point)
tc
‧Ta: Ambient Temperature measured point
‧ : Max. Case Temperature.(case temperature measured point)
tc
tc
tc
