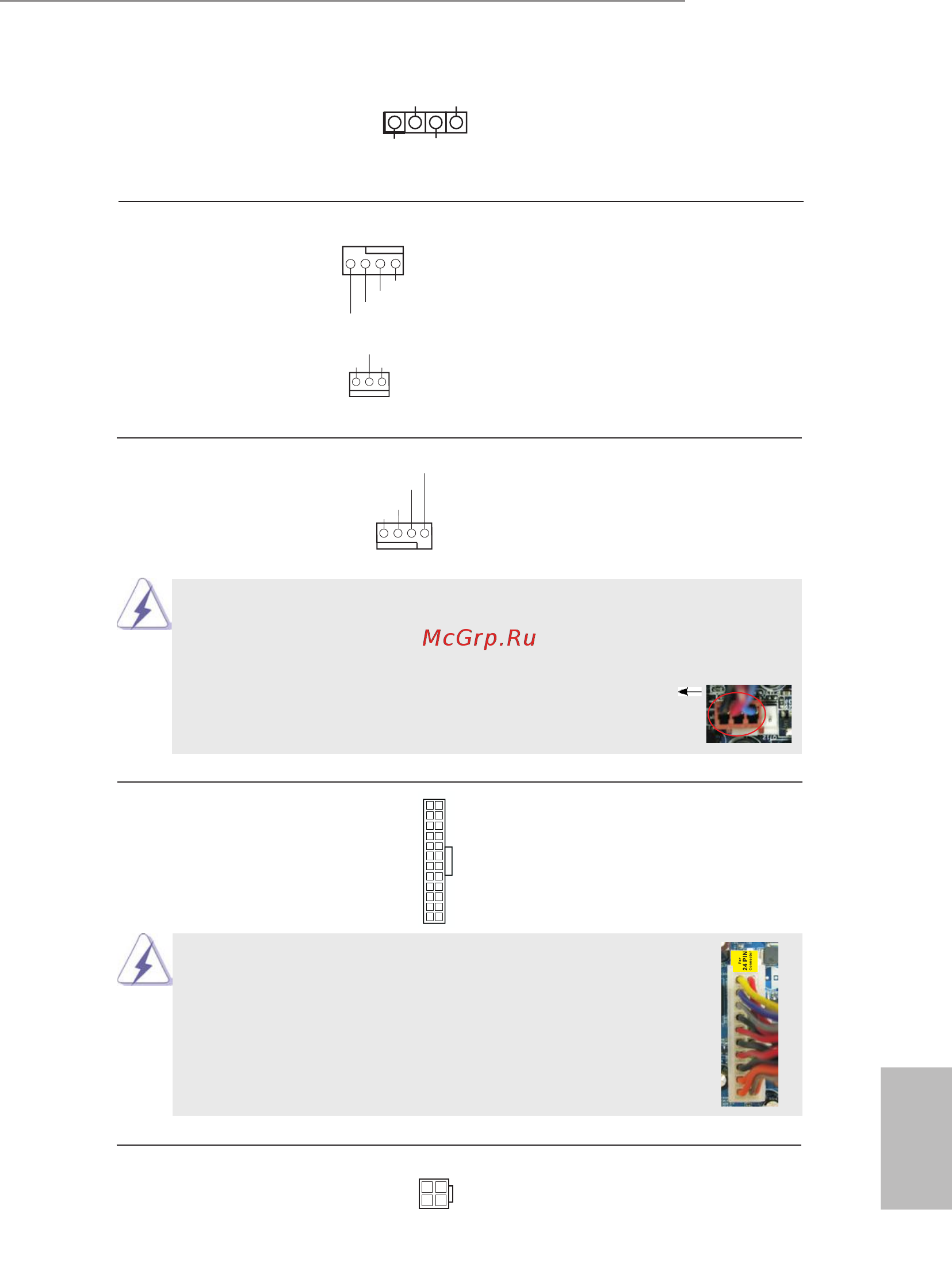

13
English
FM2A58M-VG3+
Chassis Speaker Header Please connect the chassis
(4-pin SPEAKER 1)
speaker to this header.
(see p.2 No. 11)
1
+5V
DUMMY
DUMMY
SPEAKER
Chassis and Power Fan Connectors Please connect the fan cables
(4-pin CHA_FAN1)
to the fan connectors and
(see p.2 No. 10)
match the black wire to the
ground pin. CHA_FAN1 fan
(3-pin PWR_FAN1)
speed can be controlled through
(see p.2 No. 2)
UEFI or A-Tuning.
GN D
+1 2V
PW R_FAN _SPEED
CPU Fan Connectors Please connect the CPU fan
(4-pin CPU_FAN1)
cable to the connector and
(see p.2 No. 3)
match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1)
supply to this connector.
(see p.2 No. 5)
Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your power
supply along with Pin 1 and Pin 13.
20-Pin ATX Power Supply Installation
Pin 1-3 Connected
3-Pin Fan Installation
12
1
24
13
GND
+ 12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
ATX 12V Power Connector Please connect an ATX 12V
(4-pin ATX12V1)
power supply to this connector.
(see p.2 No. 1)
FAN_SPEED
FAN_SPEED_ CONT ROL
+12V
GND
12
1
24
13
