14

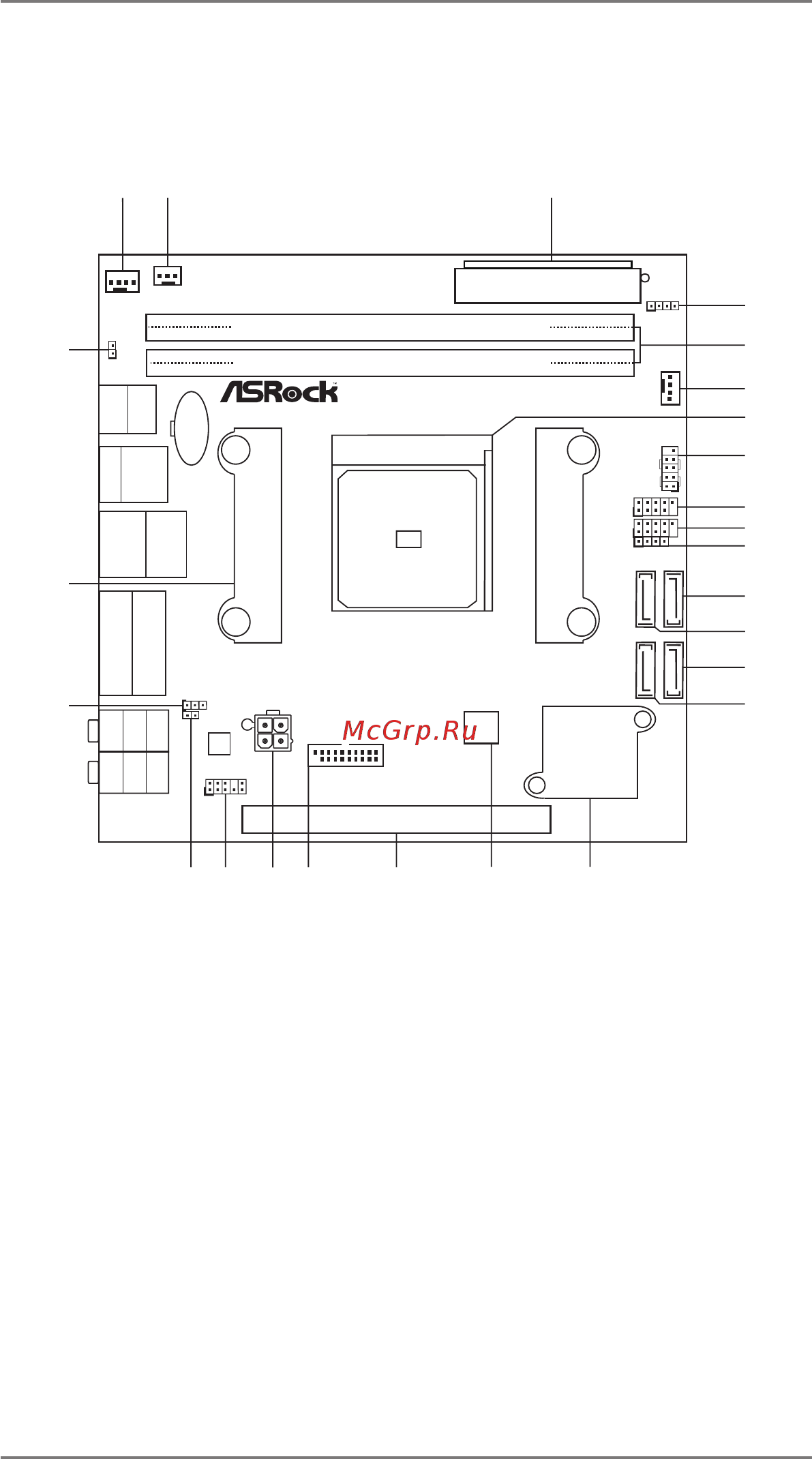

1.4 Motherboard Layout
1 CPU Fan Connector (CPU_FAN1) 13 SATA3 Connector (SATA3_4)
2 CPU Fan Connector (CPU_FAN2) 14 SATA3 Connector (SATA3_1)
3 ATX Power Connector (ATXPWR1) 15 SATA3 Connector (SATA3_2)
4 Chassis Speaker Header (SPEAKER1) 16 Southbridge Controller
5 2 x 240-pin DDR3 DIMM Slots 17 SPI Flash Memory (64Mb)
(Dual Channel: DDR3_A1, DDR3_B1) 18 PCI Express 2.0 x16 Slot (PCIE1)
6 Chassis Fan Connector (CHA_FAN1) 19 USB 3.0 Header (USB3_0_1)
7 CPU Socket 20 ATX 12V Power Connector (ATX12V1)
8 System Panel Header (PANEL1) 21 Front Panel Audio Header (HD_AUDIO1)
9 USB 2.0 Header (USB_45) 22 HDMI_SPDIF Header (HDMI_SPDIF1)
10 USB 2.0 Header (USB_67) 23 Clear CMOS Jumper (CLRCMOS1)
11 Consumer Infrared Module Header (CIR1) 24 CPU Heatsink Retention Module
12 SATA3 Connector (SATA3_3) 25 Chassis Intrusion Header (CI1)
ATXPWR1
DDR3_B1 (64 bit, 240-pin modul e)
DDR3_A1 (64 bit, 240-pin modul e)
SOCKET FM2
PCIE1
AMD
A75 FCH
(Huds on-D3)
Chipset
CPU _FAN 1
CPU _FAN 2
DDR3 2600+
Dual Graphics
X
Fast RAM
DX11
Front USB 3.0
USB 2 .0
T: US B0
B: US B1
Ps2
Key boa rd
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
Top:
RJ-4 5
USB 3.0
T: USB2
B: USB3
USB 2.0
T: USB2
B: USB3
eSATA3_1
HDMI1
VGA1
HD_ AU DI O1
1
1
CLR CMO S1
64Mb
BIOS
RoHS
FM2A75M-ITX
SPE AKE R1
1
HDLE D RESE T
PLED PWRBT N
1
PANE L 1
CHA _FAN 1
SATA3_ 2
SATA3_ 4
SATA3_ 1
SATA3_ 3
CIR 1
1
1
USB _67
1
USB _45
AUD IO
COD EC
1
HDM I_S PD IF1
CMOS
Battery
ATX1 2V1
USB 3_0 _1
1
2
14
15
16
17
18
19
20
21
3
4
7
9
8
5
6
10
11
12
13
22
23
CI1
1
25
24
