ASRock K8Upgrade-NF3 [2/96] Motherboard l motherboard l motherboard l motherboard l motherboard layout ayout ayout ayout ayout

ASRock K8Upgrade-NF3 Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

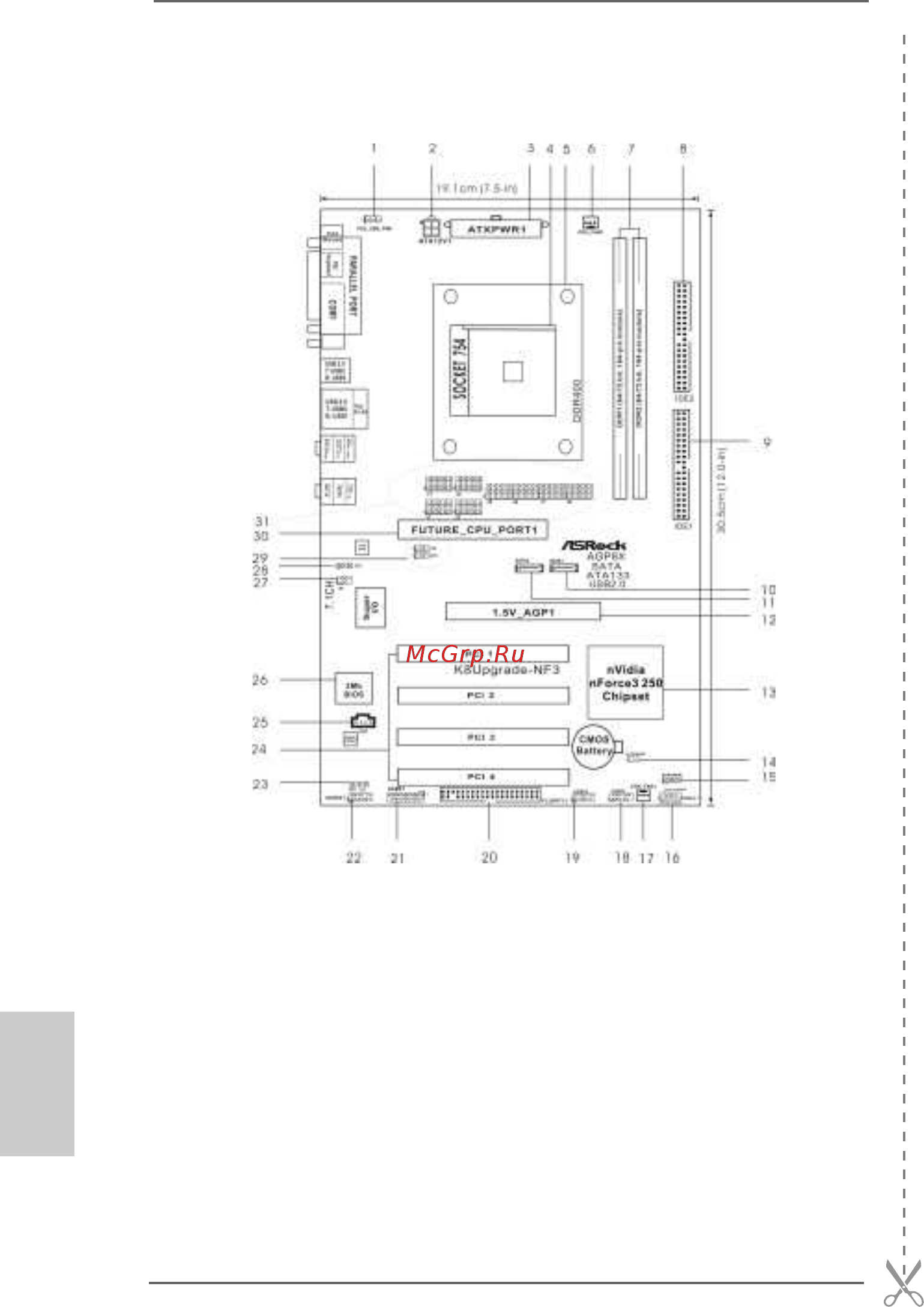

1 PS2_USB_PW1 Jumper 17 Chassis Fan Connector (CHA_FAN1)

2 ATX 12V Power Connector (ATX12V1) 18 USB 2.0 Header (USB67, Blue)

3 ATX Power Connector (ATXPWR1) 19 USB 2.0 Header (USB45, Blue)

4 754-Pin CPU Socket 20 Floppy Connector (FLOPPY1)

5 CPU Heatsink Retention Module 21 Game Port Header (GAME1)

6 CPU Fan Connector (CPU_FAN1) 22 Front Panel Audio Header (AUDIO1)

7 184-pin DDR DIMM Slots (DDR1- 2) 23 JR1 JL1 Jumper

8 Secondary IDE Connector (IDE2, Black) 24 PCI Slots (PCI1- 4)

9 Primary IDE Connector (IDE1, Blue) 25 Internal Audio Connector: CD1 (Black)

10 Primary Serial ATA Connector (SATA1) 26 Flash Memory

11 Secondary Serial ATA Connector (SATA2) 27 Infrared Module Header (IR1)

12 AGP Slot (1.5V_AGP1) 28 J15 Jumper

13 nVidia Chipset 29 J9 / J10 Jumper

14 Clear CMOS Jumper (CLRCMOS2) 30 Future CPU Port (FUTURE_CPU_PORT1)

15 Chassis Speaker Header (SPEAKER 1) 31 J1-J8 Jumpers

16 System Panel Header (PANEL1)
