ASRock K8NF6P-VSTA Motherboard

EnglishEnglish

English

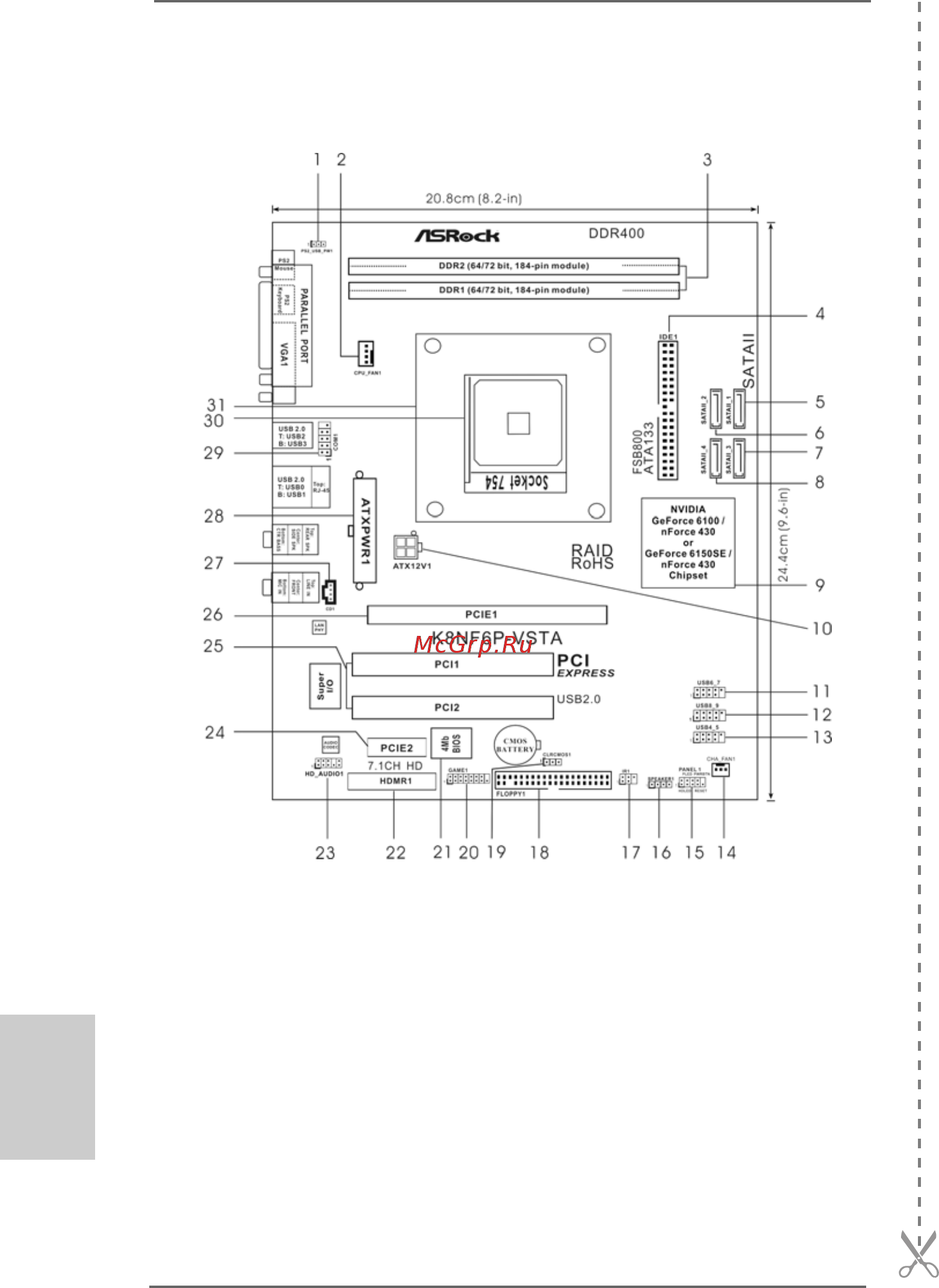

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PW1 Jumper 17 Infrared Module Header (IR1)

2 CPU Fan Connector (CPU_FAN1) 18 Floppy Connector (FLOPPY1)

3 184-pin DDR DIMM Slots (DDR1- 2) 19 Clear CMOS Jumper (CLRCMOS1)

4 Primary IDE Connector (IDE1, Blue) 20 Game Port Header (GAME1)

5 Primary SATAII Connector (SATAII_1, Red) 21 Flash Memory

6 Secondary SATAII Connector (SATAII_2, Red) 22 HDMR Slot (HDMR1)

7 Third SATAII Connector (SATAII_3, Red) 23 Front Panel Audio Header (HD_AUDIO1)

8 Fourth SATAII Connector (SATAII_4, Red) 24 PCI Express x1 Slot (PCIE2)

9 NVIDIA Single Chip 25 PCI Slots (PCI1- 2)

10 ATX 12V Power Connector (ATX12V1) 26 PCI Express x16 Slot (PCIE1)

11 USB 2.0 Header (USB6_7, Blue) 27 Internal Audio Connector: CD1 (Black)

12 USB 2.0 Header (USB8_9, Blue) 28 ATX Power Connector (ATXPWR1)

13 USB 2.0 Header (USB4_5, Blue) 29 Serial Port Connector (COM1)

14 Chassis Fan Connector (CHA_FAN1) 30 754-Pin CPU Socket

15 System Panel Header (PANEL1) 31 CPU Heatsink Retention Module

16 Chassis Speaker Header (SPEAKER 1)
