ASRock 939A8X-M Motherboard

EnglishEnglish

English

2.5 Connectors2.5 Connectors

2.5 Connectors

Connectors are NOT jumpers. DO NOT place jumper caps over these

connectors. Placing jumper caps over the connectors will cause perma-

nent damage of the motherboard!

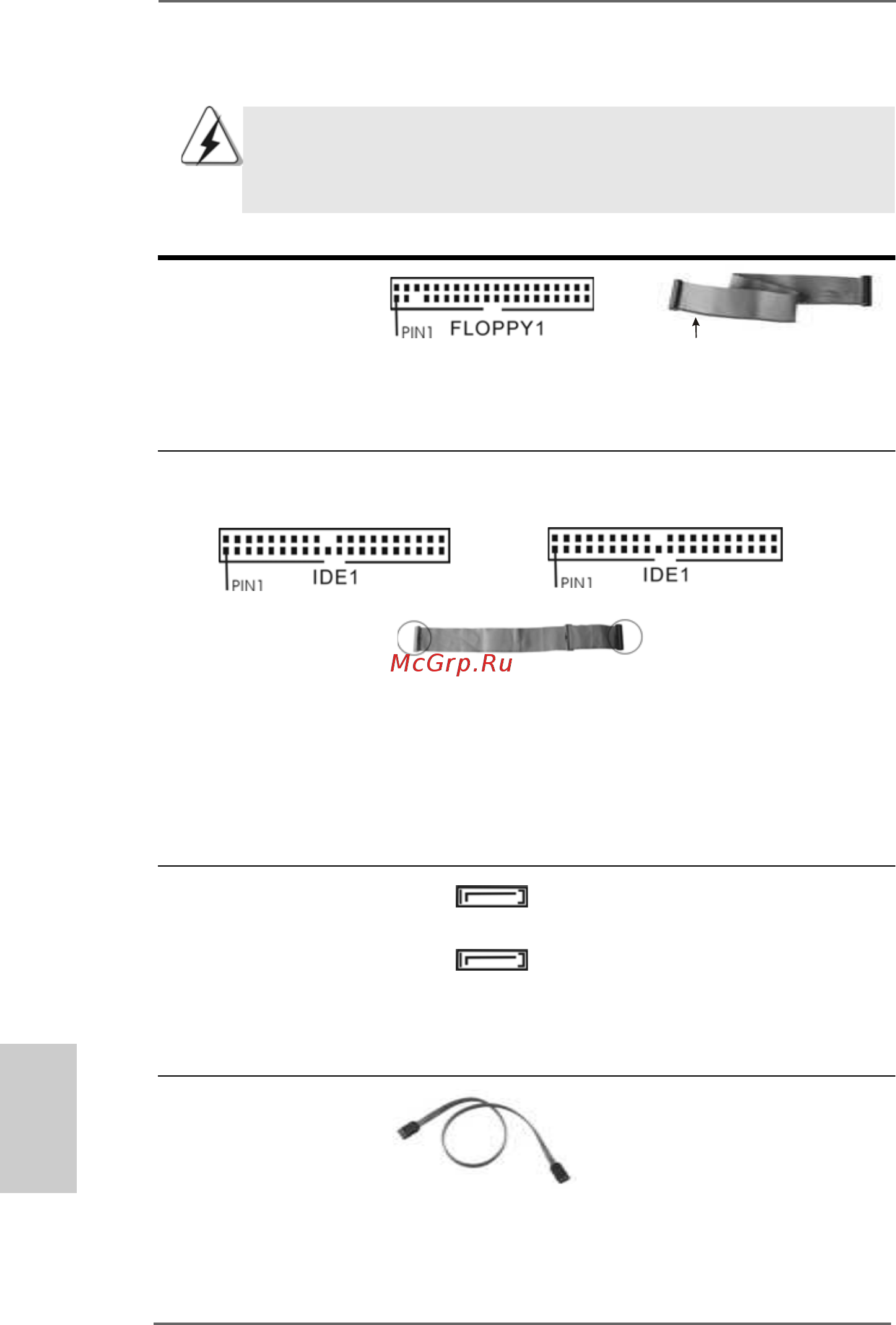

Connector Figure Description

FDD Connector

(33-pin FLOPPY1)

(see p.2 item 4)

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE Connector (Blue) Secondary IDE Connector (Black)

(39-pin IDE1, see p.2 item 9) (39-pin IDE2, see p.2 item 8)

80-conductor, ATA 66/100/133 cable

Note: If you use only one IDE device on this motherboard, please set the IDE

device as “Master”. Please refer to the instruction of your IDE device

vendor for the details. Besides, to optimize compatibility and performance,

please connect your hard disk drive to the primary IDE connector (IDE1,

blue) and CD-ROM to the secondary IDE connector (IDE2, black).

Serial ATA Connectors These two Serial ATA (SATA)

(SATA1: see p.2 item 16) connectors support SATA data

(SATA2: see p.2 item 17) cables for internal storage

devices. The current SATA

interface allows up to 1.5 Gb/s

data transfer rate.

Serial ATA (SATA) Either end of the SATA data

Data Cable cable can be connected to the

SATA hard disk or the SATA

connector on the motherboard.

connect the black end

to the IDE devices

connect the blue end

to the motherboard

the red-striped side to Pin1

SATA1

SATA2
