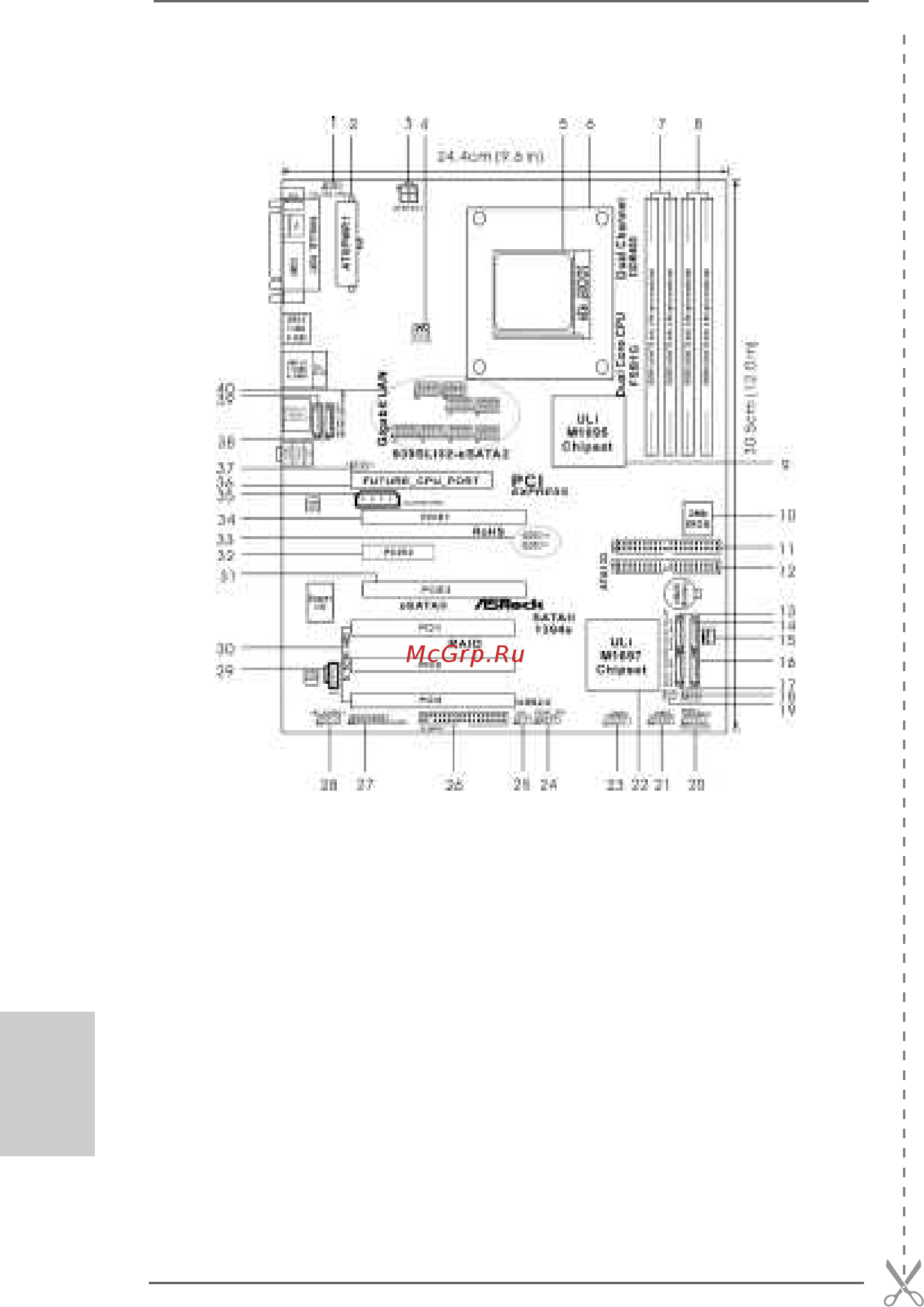

ASRock 939SLI32-eSATA2 [2/152] Motherboard l motherboard l motherboard l motherboard l motherboard layout ayout ayout ayout ayout

ASRock 939SLI32-eSATA2 Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 20 System Panel Header (PANEL1)

2 ATX Power Connector (ATXPWR1) 21 USB 2.0 Header (USB67, Blue)

3 ATX 12V Power Connector (ATX12V1) 22 Southbridge Controller

4 CPU Fan Connector (CPU_FAN1) 23 USB 2.0 Header (USB45, Blue)

5 939-Pin CPU Socket 24 Front Panel IEEE 1394 Header (FRONT_1394)

6 CPU Heatsink Retention Module 25 Infrared Module Header (IR1)

7 2 x 184-pin DDR DIMM Slots 26 Floppy Connector (FLOPPY1)

(Dual Channel A: DDR1, DDR2; Blue) 27 Game Port Header (GAME1)

8 2 x 184-pin DDR DIMM Slots 28 Front Panel Audio Header (HD_AUDIO1)

(Dual Channel B: DDR3, DDR4; Black) 29 Internal Audio Connector: CD1 (Black)

9 Northbridge Controller 30 PCI Slots (PCI1- 3)

10 Flash Memory 31 PCI Express x 16 Slot (PCIE3)

11 Primary IDE Connector (IDE1, Blue) 32 PCI Express x 4 Slot (PCIE2)

12 Secondary IDE Connector (IDE2, Black) 33 J9 / J10 Jumpers

13 Serial ATAII Connector (SATAII_BLACK) 34 PCI Express x 16 Slot (PCIE1)

14 Serial ATAII Connector (SATAII_BLUE) 35 SLI / XFIRE Power Connector

15 Chassis Fan Connector (CHA_FAN1) 36 Future CPU Port (FUTURE_CPU_PORT1)

16 Serial ATAII Connector (SATAII_RED) 37 J11 Jumper

17 Serial ATAII Connector (SATAII_ORANGE) 38 eSATAII Connector (eSATAII_BOTTOM)

18 Chassis Speaker Header (SPEAKER 1) 39 eSATAII Connector (eSATAII_TOP)

19 Clear CMOS Jumper (CLRTC1) 40 J1 / J2 / J3 / J4 / J5 / J6 / J7 / J8 Jumpers
