Internal Audio Connectors This connector allows you

(4-pin CD1) to receive stereo audio input

(CD1: see p.2 No. 28) from sound sources such as

a CD-ROM, DVD-ROM, TV

tuner card, or MPEG card.

Front Panel Audio Header This is an interface for the front

(9-pin HD_AUDIO1) panel audio cable that allows

(see p.2, No. 29) convenient connection and

control of audio devices.

Infrared Module Header This header supports an

(5-pin IR1) optional wireless transmitting

(see p.2 No. 30) and receiving infrared module.

CD1

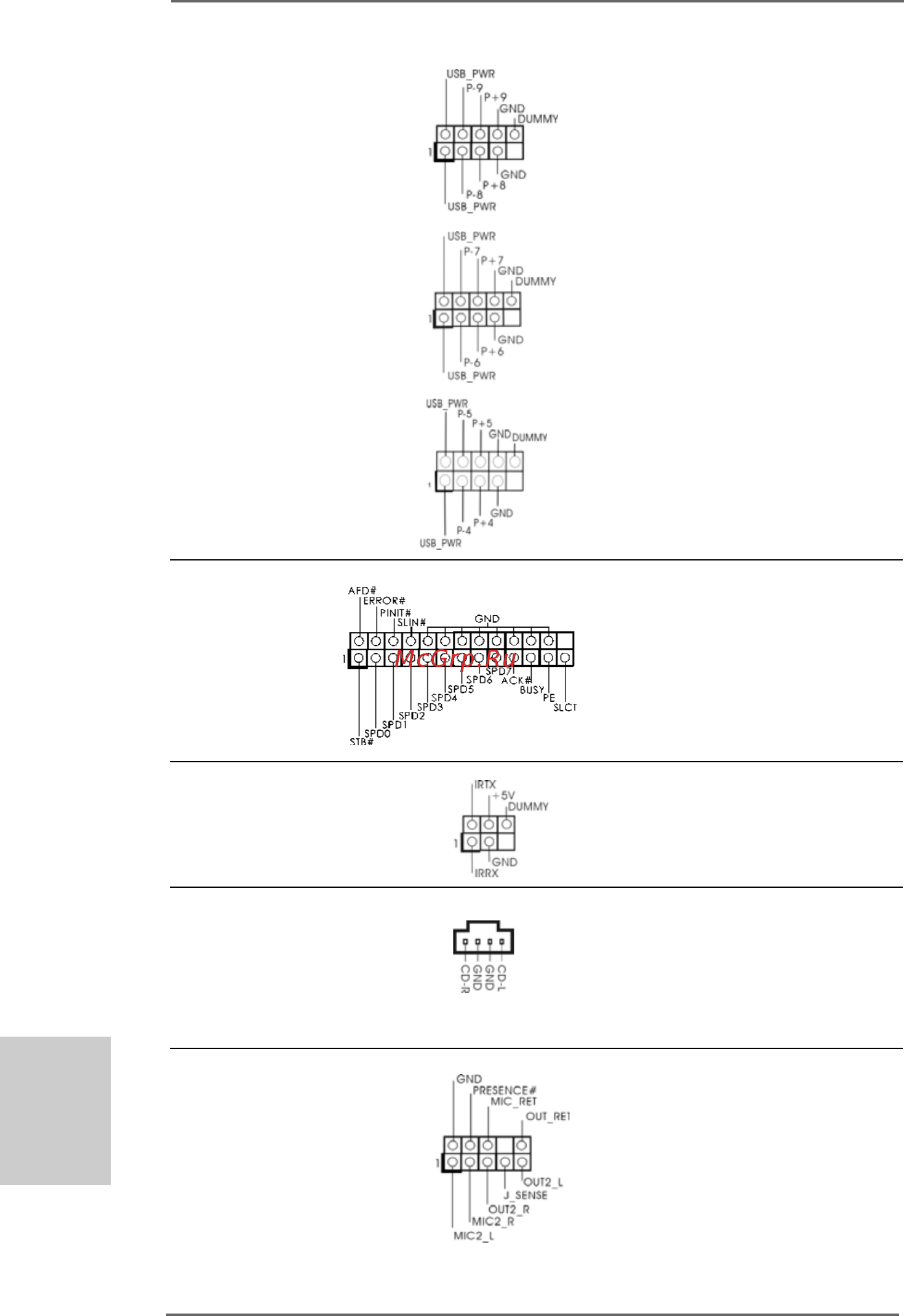

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB8_9) ports on the I/O panel, there are

(see p.2 No. 10) three USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB

2.0 ports.

(9-pin USB6_7)

(see p.2 No. 11)

(9-pin USB4_5)

(see p.2 No. 12)

Print Port Header This is an interface for print

(25-pin LPT1) port cable that allows

(see p.2 No. 25) convenient connection of printer

devices.
