2.7 Onboard Headers and Connectors2.7 Onboard Headers and Connectors

2.7 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

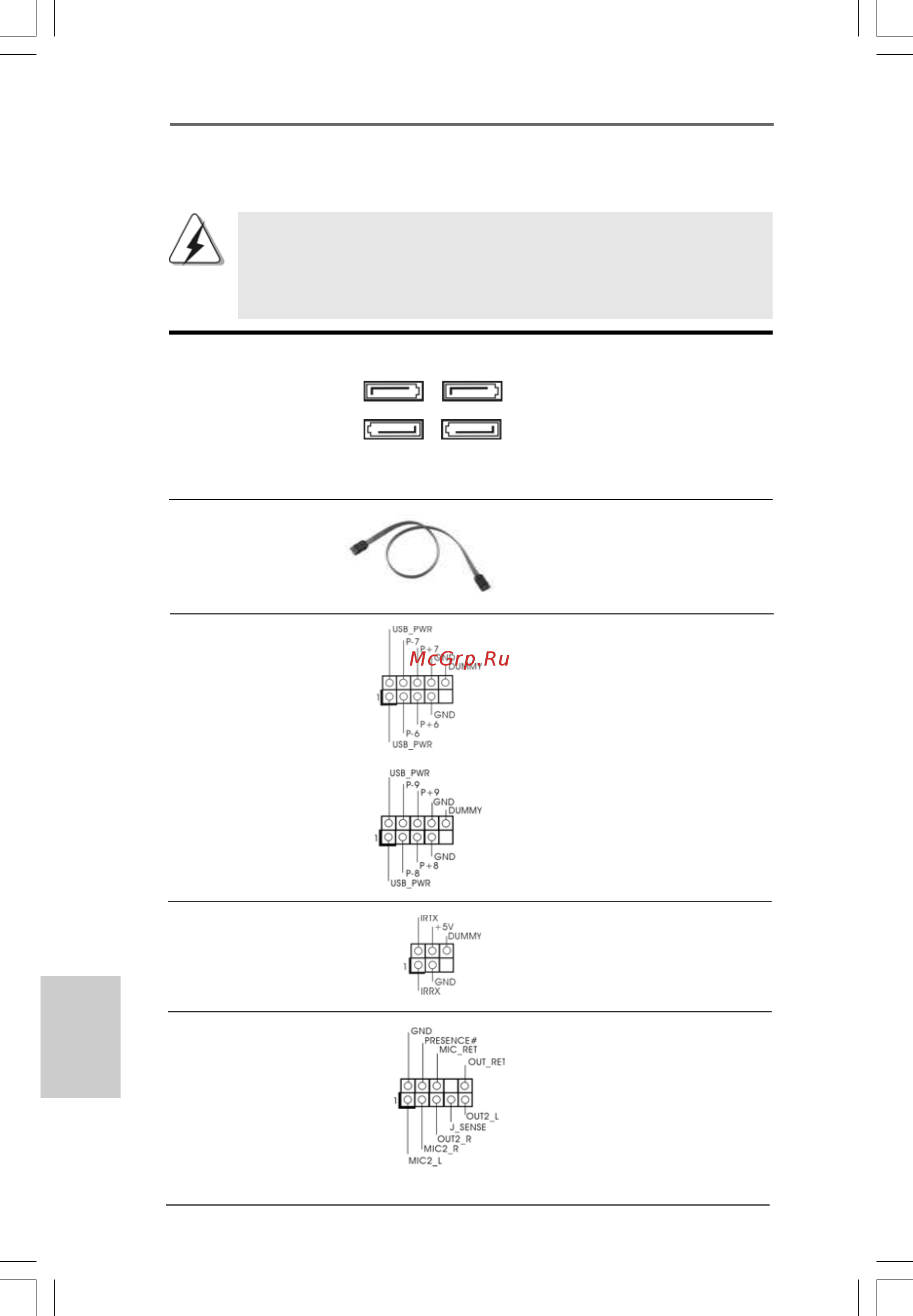

Serial ATAII Connectors These Serial ATAII (SATAII)

(SATAII_1: see p.2, No. 15) connectors support SATAII

(SATAII_2: see p.2, No. 16) or SATA hard disk for internal

(SATAII_3: see p.2, No. 14) storage devices. The current

(SATAII_4: see p.2, No. 10) SATAII interface allows up to

3.0 Gb/s data transfer rate.

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on the motherboard.

SATAII_2 SATAII_4

SATAII_1 SATAII_3

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB6_7) ports on the I/O panel, there are

(see p.2 No. 24) two USB 2.0 headers on this

motherboard. Each USB 2.0

header cansupport two USB

2.0 ports.

(9-pin USB8_9)

(see p.2 No. 22)

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1) panel audio cable that allows

(see p.2 No. 19) convenient connection and

control of audio devices.

Infrared Module Header This header supports an

(5-pin IR1) optional wireless transmitting

(see p.2 No. 12) and receiving infrared module.
