Motherboard LayoutMotherboard Layout

Motherboard Layout

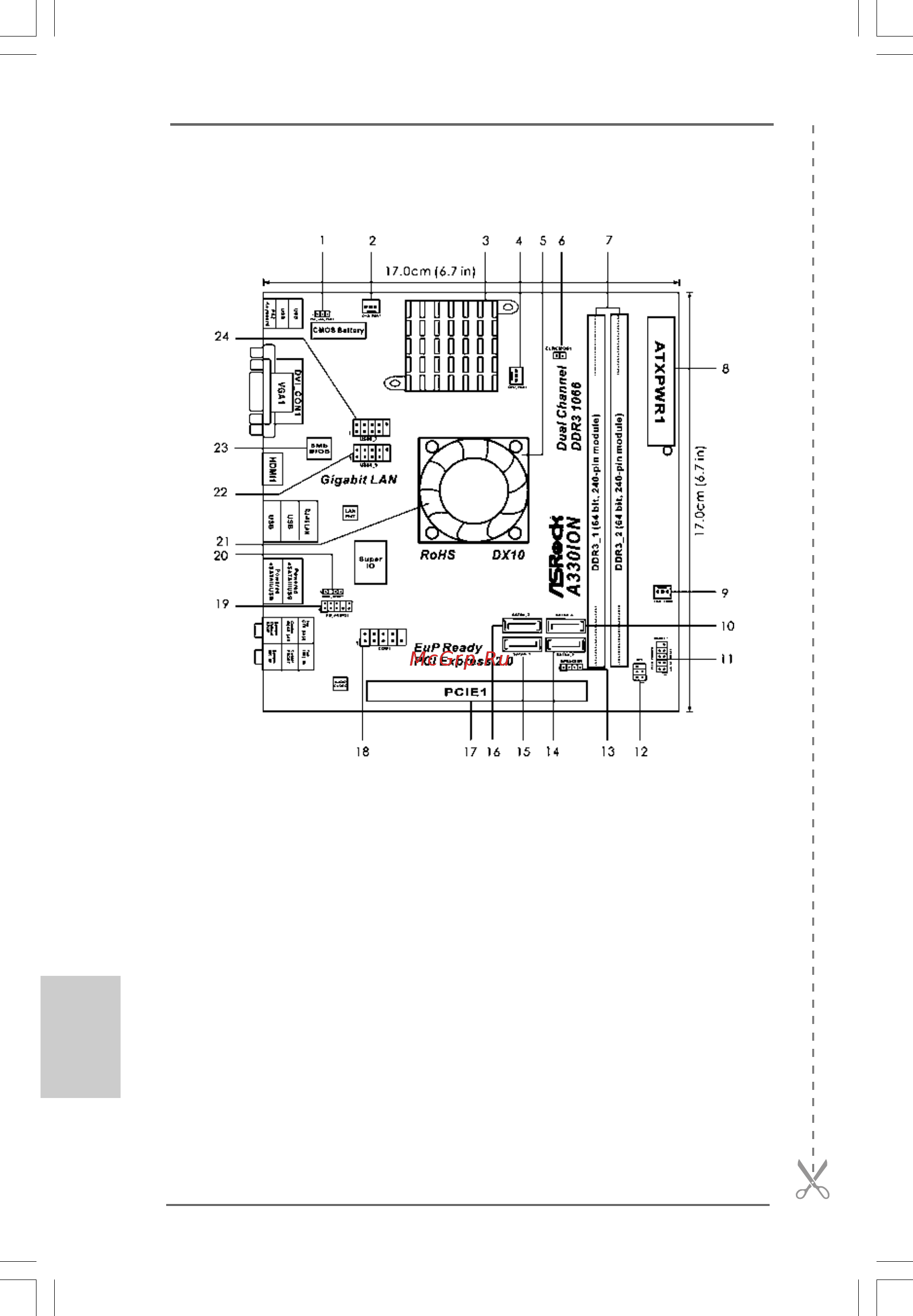

1 PS2_USB_PWR1 Jumper 14 Third SATAII Connector (SATAII_3; Red)

2 Chassis Fan Connector (CHA_FAN1) 15 Primary SATAII Connector (SATAII_1; Red)

3 CPU Heatsink 16 Secondary SATAII Connector (SATAII_2; Red)

4 CPU Fan Connector (CPU_FAN1) 17 PCI Express 2.0 x16 Slot (PCIE1, Blue)

5 Chipset Heatsink 18 COM Port Header (COM1)

6 Clear CMOS Jumper (CLRCMOS1) 19 Front Panel Audio Header

7 2 x 240-pin DDR3 DIMM Slots (HD_AUDIO1, Lime)

(Dual Channel: DDR3_1, DDR3_2; Blue) 20 HDMI_SPDIF Header

8 ATX Power Connector (ATXPWR1) (HDMI_SPDIF1, Yellow)

9 Chassis Fan Connector (CHA_FAN2) 21 Chipset Fan

10 Fourth SATAII Connector (SATAII_4; Red) 22 USB 2.0 Header (USB8_9, Blue)

11 System Panel Header (PANEL1, Orange) 23 BIOS SPI Chip

12 Infrared Module Header (IR1) 24 USB 2.0 Header (USB6_7, Blue)

13 Chassis Speaker Header (SPEAKER 1, Purple)
