2727
2727
27
3.4.13.4.1
3.4.13.4.1
3.4.1

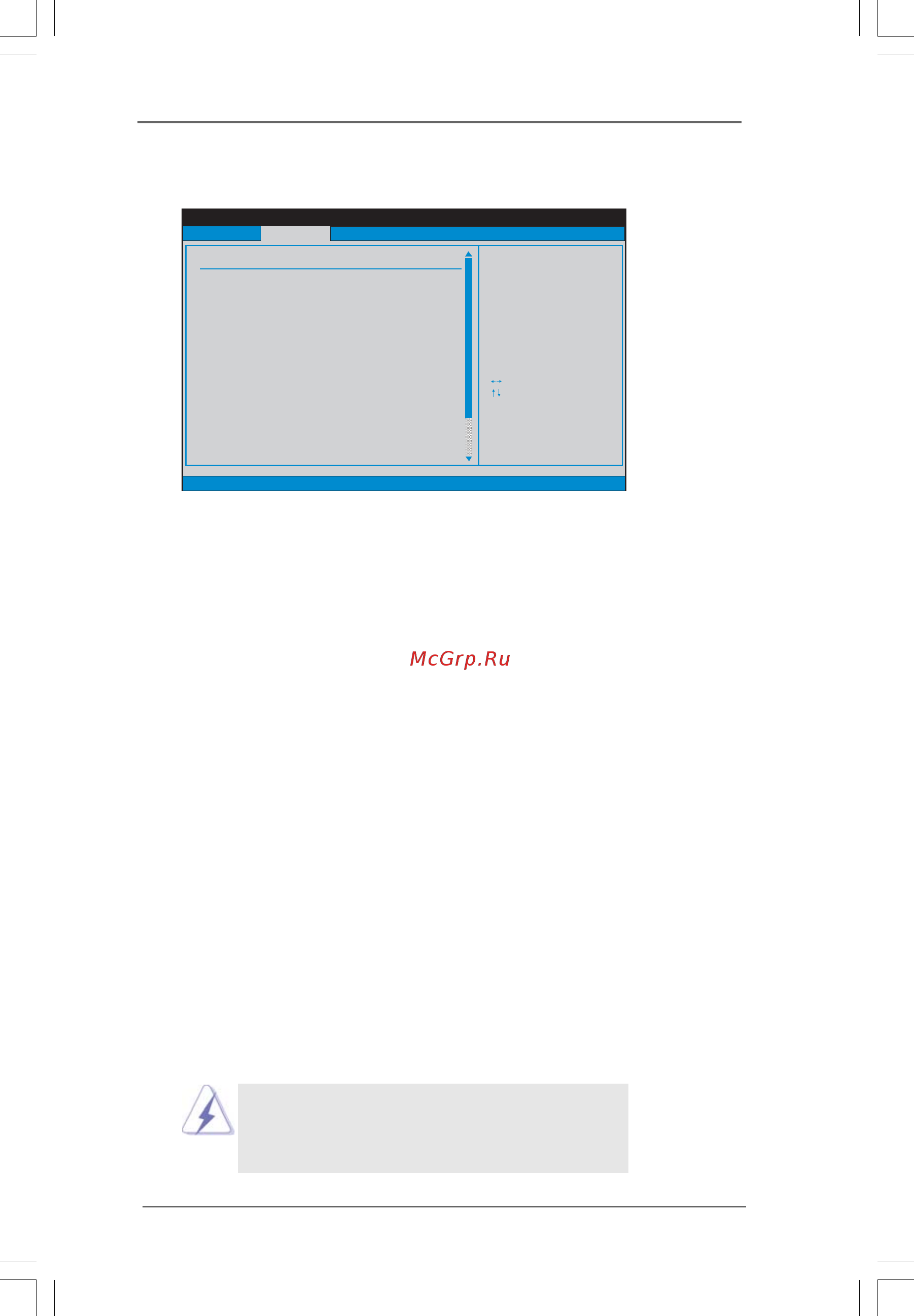

CPU ConfigurationCPU Configuration
CPU ConfigurationCPU Configuration
CPU Configuration
BIOS SETUP UTILITY
CPU Configuration
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
Advanced
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
CPU Host Frequency
[By Jumper]
Spread Spectrum
Boot Failure Guard
Boot Failure Guard Count
Over Vcore Voltage
[Auto]
[Enabled]
[3]
[Normal]
Actual Frequency
[166]
[Enter] to select how
to set the CPU host
frequency.
CPU Host Frequency
[By Jumper]
It is recommended to select this option, which will let the CPU host
frequency of this motherboard determined by the jumper-setting.
[Manual]
This allows user to set CPU host frequency manually. However, because
the CPU host frequency of this motherboard is determined by the jumper-
setting, you must set the FSB jumper adjustment according to your AMD
CPU before you use this “Manual” option as the FSB setting in BIOS setup
to perform over clocking. This is not recommended unless you thoroughly
know the feature. Wrong setup may cause problems during operation.
Actual Frequeny
This is a read-only item, which displays the actual frequency of this
motherboard.
Spread Spectrum
This field should always be [Disabled] for better system stability.
Boot Failure Guard
Enable or disable the feature of Boot Failure Guard.
Boot Failure Guard Count
Enable or disable the feature of Boot Failure Guard Count.
Over Vcore Voltage
This feature allows you to increase the CPU Vcore voltage by 3% or 6%.
The default value is [Disabled].
It is not recommended to enable “Over Vcore
Voltage” feature. Doing so may cause CPU
damage.
