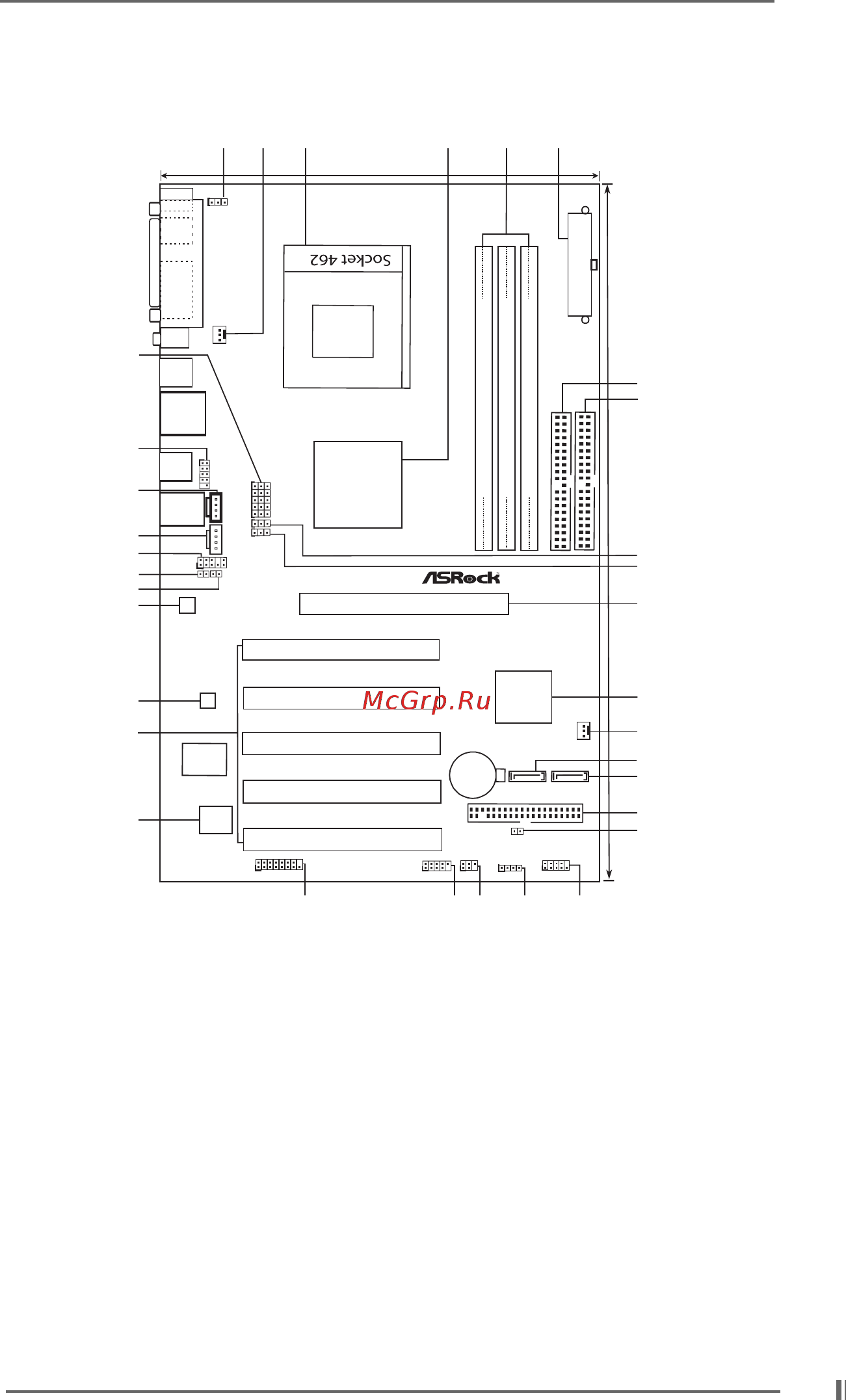

1.3 Motherboard Layout
1 PS2_USB_PWR1 Jumper 18 System Panel Connector (PANEL1)
2 CPU Fan Connector (CPU_FAN1) 19 Chassis Speaker Connector (SPEAKER 1)
3 CPU Socket 20 Infrared Module Connector (IR1)
4 North Bridge Controller 21 USB 2.0 Header (USB67, Blue)
5 184-pin DDR DIMM Slots (DDR1- 3) 22 Game Connector (GAME1)
6 ATX Power Connector (ATXPWR1) 23 Flash Memory
7 Secondary IDE Connector (IDE2, Black) 24 PCI Slots (PCI1- 5)
8 Primary IDE Connector (IDE1, Blue) 25 LAN PHY
9 FSB Select Jumper (FSB_SEL0) 26 AUDIO CODEC
10 FSB Select Jumper (FSB_SEL1) 27 JL1 Jumper
11 AGP Slot (AGP1) 28 JR1 Jumper
12 South Bridge Controller 29 Front Panel Audio Connector (AUDIO1)
13 Chassis Fan Connector (CHA_FAN1) 30 Internal Audio Connector: AUX1 (White)
14 Primary Serial ATA Connector (SATA1) 31 Internal Audio Connector: CD1 (Black)
15 Secondary Serial ATA Connector (SATA2) 32 Shared USB 2.0 Header (USB45, Blue)
16 Floppy Connector (FLOPPY1) 33 FID Jumpers (FID0, FID1, FID2, FID3, FID4)
17 Clear CMOS Jumper (CLRCMOS2)
PCI 2
PCI 3
PCI 4
PCI 5
PCI 1
2MB
BIOS
Super
I/O
USB67
1
IR1
1
PAN EL 1
HDLED RESET
PLED PWRBTN
1
PS2_USB_PWR1
1
K7S8XE+
SiS
964
SPEAKER1
1
FLOPPY1
CHA_FAN1
CMOS
Battery
CLRCMOS2
AGP 8X
ATA133
USB 2.0
5.1 CH
SATA
DDR400
DDR1 (64/72 bit, 184-pin module)
DDR2 (64/72 bit, 184-pin module)
DDR3 (64/72 bit, 184-pin module)
AGP1
SiS
748
IDE2
1
AUDIO1
Audio CODEC
CPU_FAN1
ATXPWR1
1
GAME1
JR1
JL1
PARALLEL PORT
PS/2
Mouse
PS/2
Keyboard
COM1
USB 2.0
Ports
USB 2.0
Ports
LAN
USB 2.0
Ports
Line In
Line Out
Mic In
SATA2SATA1
CD1
AUX1
USB45
FSB_SEL0
FSB_SEL1
1
1
1
1
1
1
1
FID0
FID1
FID2
FID3
FID4
LAN
PHY
12
15
16
17
18
19
20
21
25
24
23
53
2
7
8
29
26
1
32
27
19.1cm (7.5 in)
30.5cm (12 in)
6
22
28
30
4
11
13
14
31
IDE1
9
10
33
1
