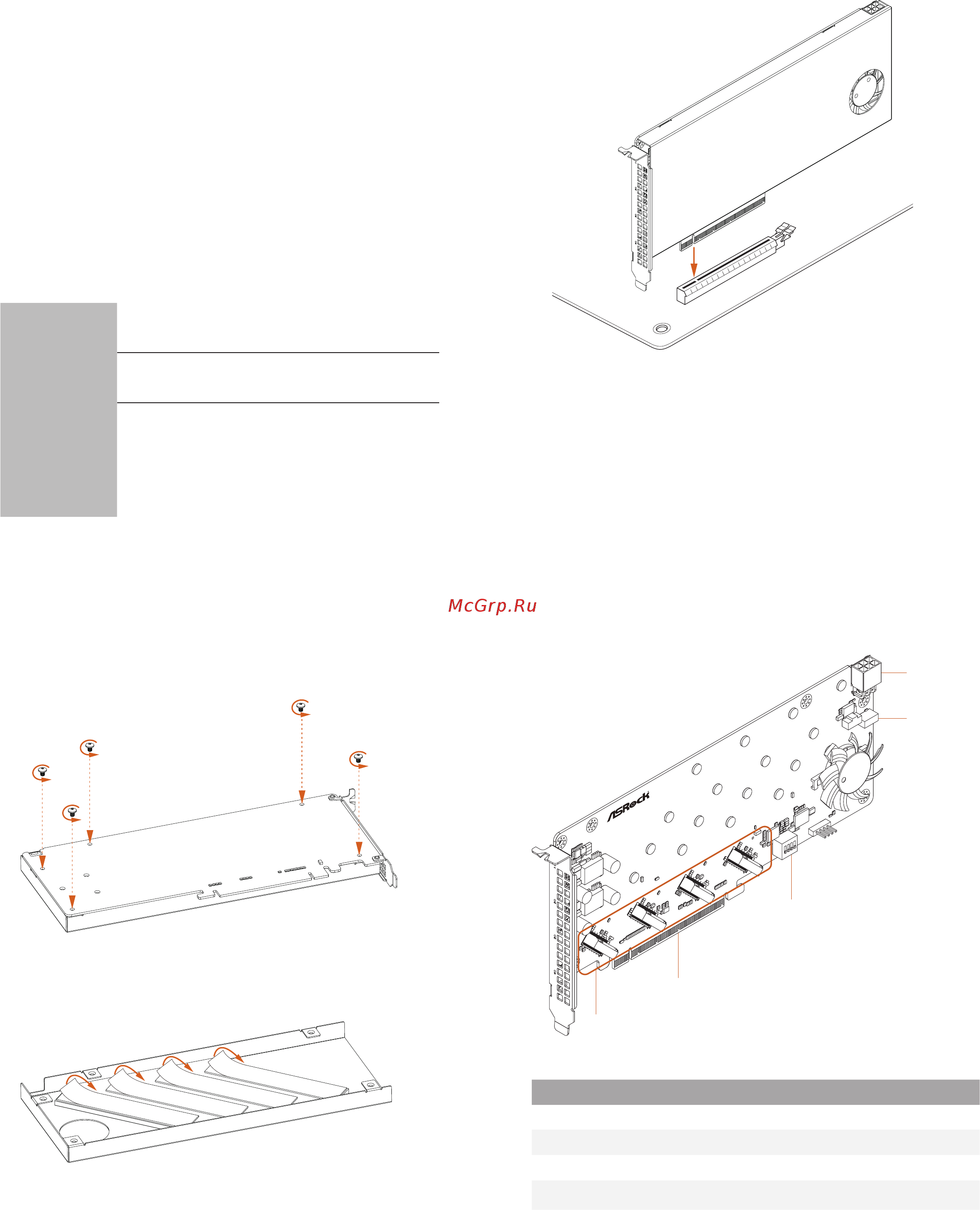

Card Layout
1
5
2
3
4
HYPER QUAD M.2 card
1
ON
2
3
4
No. Description
1 Hyper M.2 Sockets
2 PCI Express 4.0 x 16 Interface
3 ASRock Utility Control Switch
4 Card Fan Switch
5 Graphics 12V Power Connector
ASRock HYPER QUAD M.2 CARD
Package Contents
•
ASRock HYPER QUAD M.2 CARD
•
Quick Installation Guide
•
Support CD
•
M.2 screws
Specications
Dimensions •
9.6-in x 4.4-in
Interface •
PCI Express 4.0 x 16 interface
Connector
•
4 x Hyper M.2 Sockets, support M Key type
2242/2260/2280/22110 M.2 PCI Express
module up to Gen4x4 (64 Gb/s)
•
1 x Graphics 12V Power Connector
Installation Procedure
1. Remove the ve screws holding the bracket in place.
2. Peel o the protective lm(s) on the bracket's thermal pad(s) before you
install M.2 SSD module(s).
3. Fasten the ve screws holding the bracket in place.
Power o the PC and unplug the power cord. Detach all other cables from
the PC.
4. Remove the PC cover.
5. Align and insert the card into a PCI Express 3.0 x16 slot on the motherboard.
Press rmly until the card is securely seated in place.
*15G062184000AK*
P/N: 15G062184000AK V1.0
6. (is step is only for motherboards with an Intel® X299 chipset.)
Locate the VROC1 header on your motherboard, then install a VROC
key module to enable the Intel® Virtual RAID on CPU feature.
*Please refer to the user manual that comes with your motherboard for the
accurate location of the Virtual RAID On CPU Header (VROC1).
