How to Install the VESA Bracket
1. Attach the two screws to the base of the
Beebox series.
2. Attach the VESA Bracket to the rear of
a compatible display using the four screws.
*Choose mounting holes depending on the
mounting hole pattern of your LCD screen
(75 mm × 75 mm or 100 mm × 100 mm).
3. Mount the Beebox series by sliding it into place.
USB Power On Function:
Beebox 系列擺放/ Positionen der Beebox-Serie / Positions de la série Beebox / Posizioni della
serie Beebox / Posiciones de la serie Beebox / Положения серии Beebox /
Posições de série Beebox / Beebox 시리즈의 위치 / Beebox シリーズの位置
Vertical Position
Horizontal Position
Positions of the Beebox series
*Please note that keeping the Beebox series in a vertical position
will ensure better cooling performance.
e Beebox series can be placed in vertical or horizontal position.
To enable USB Power On Function:
1. Enter BIOS by pressing <F2> or <Del> during device startup.
2. Select “Advanced > ACPI Configuration” from the menu.
3. Set “USB Keyboard/ Remote Power On” and “ USB Mouse Power On”
settings to “Enabled”.
4. Press F10 to Save and Exit.
USB Power On Function allows
system power on via USB
keyboard/mouse.
is function is useful when the
Beebox series is mounted behind
your display/TV.
*You can also easily power on/off
the Beebox series by using the
remote controller.
Please visit our web site at http:/www.asrock.com for:
A list of tested memory, M.2, 2.5” SATA HDD, wireless interface cards and operating systems that
are supported; for information about downloading the latest driver and BIOS updates; as well
as the latest product support information.
- 如需參考已測試過 記憶體、M.2、2.5” SATA HDD、無線介面卡和支援的作業系統清單
- 若要下載最新驅動程式和BIOS更新
- 如需產品支援資訊請前往 http:/www.asrock.com
Folgendes finden Sie auf unserer Webseite unter http:/www.asrock.com:
- Eine Liste unterstützter getesteter Speichermodule, M.2-, 2,5-Zoll SATA-Festplatten,
WLAN-Schnittstellenkarten und Betriebssysteme;
- Informationen zum Herunterladen aktuellster Treiber- und BIOS-Versionen;
- sowie aktuellste Informationen über unterstützte Produkte.
Veuillez visiter notre site Web à l'adresse http:/www.asrock.com pour :
- Une liste de mémoires, disques M.2, disques durs SATA 2,5", cartes d'interface sans fil et
systèmes d'exploitation testés et pris en charge ;
- Des informations sur le téléchargement des dernières mises à jour du pilote et du BIOS ;
- Les dernières informations d'assistance produit.
Visitare il nostro sito all’indirizzo http:/www.asrock.com per:
- L’elenco di memorie, M.2, HDD SATA 2.5", schede d’interfaccia wireless e sistemi operativi che
sono stati testati e sono supportati;
- Informazioni sul download dei driver più recenti e degli aggiornamenti BIOS;
- Informazioni aggiornate sul supporto dei prodotti.
Visite nuestro sitio Web en http:/www.asrock.com para:
- Obtener una lista de memorias, M.2, HDD SATA de 2,5”, tarjetas de interfaz inalámbricas y
sistemas operativos admitidos probados;
- Obtener información acerca de la descarga del controlador y de las actualiz aciones del BIOS
más recientes;
- Obtener la información más reciente sobre el soporte técnico del producto.
Посетите наш веб-сайт: http:/www.asrock.com для просмотра о:
- Списке проверенной памяти, M.2, жестком диске SATA 2,5 дюйма, беспроводных
интерфейсных платах и поддерживаемых операционных системах;
- информации о загрузке последних версий драйверов и обновлений BIOS
- а также актуальной информации о поддержке изделия.
Por favor, visite nosso Website em http: /www.asrock.com para:
- Uma lista de memórias testadas, M.2, HDD 2.5" SATA, placas de interface sem fio e
sistemas operacionais que são suportados;
- para informações sobre como baixar as últimas atualizações de drivers e BIOS;
- bem como as mais recentes informações de suporte do produto.
다음 항목은 당사 웹사이트 http:/www.asrock.com을 참조하십시오.
-테스트한 메모리, M.2, 2.5” SATA HDD, 무선 인터페이스 카드 및 지원되는 운영
체제의 목록
-최신 드라이버 및 BIOS 업데이트 다운로드에 관한 정보
-최신 제품 지원 정보
次については弊社ウェブサイト（http:/www.asrock.com）をご覧ください:
- テスト済みメモリ、M.2、2.5” SATA HDD、ワイヤレスインターフェースカード、
対応するオペレーティングシステム
- 最新のドライバと BIOS アップデートのダウンロードに関する情報
-最新製品サポート情報
M.2 SSD (Type 2280): How to Install the M.2 SSD
B
如何安裝 M.2 / SSD So installieren Sie die M.2-SSD / Comment installer le SSD M.2 / Come installare l’unità SSD M.2 / Cómo instalar el disco de estado sólido M.2/
Установка твердотельного диска M.2 / Como Instalar o SSD M.2 / M.2 SSD를 설치하는 방법 / M.2 SSD の取り付け方法
3. Carefully insert the M.2 SSD into
the slot.
1. Remove the standoff screw.
2. Tighten the screw to secure the
extended bracket to the
motherboard.
4. Tighten the screw to secure the
M.2 SSD to the motherboard.
Extended Bracket.
Wall-mounted
支援 / Support / Assistance / Supporto / Soporte técnico / Поддержка / Suporte / 지원 / サポート
Support
如何安裝硬碟/ So installieren Sie die Festplatte / Comment installer le disque dur / Come installare l’unità HDD / Cómo instalar la unidad de disco duro / Установка жесткого диска /
Como Instalar o Disco Rígido / 하드 드라이브를 설치하는 방법 / ハードドライブの取り付け方法
如何安裝記憶體模組 / So installieren Sie die Speichermodule / Comment installer les modules de mémoire / Come installare i moduli di memoria / Cómo instalar los módulos de memoria /
Установка модулей памяти / Como Instalar os Módulos de Memória / 메모리 모듈/ メモリモジュール
2.5-inch Hard Drive: How to Install the Hard Drive
C
SO-DIMM Slots: How to Install the Memory Modules
D

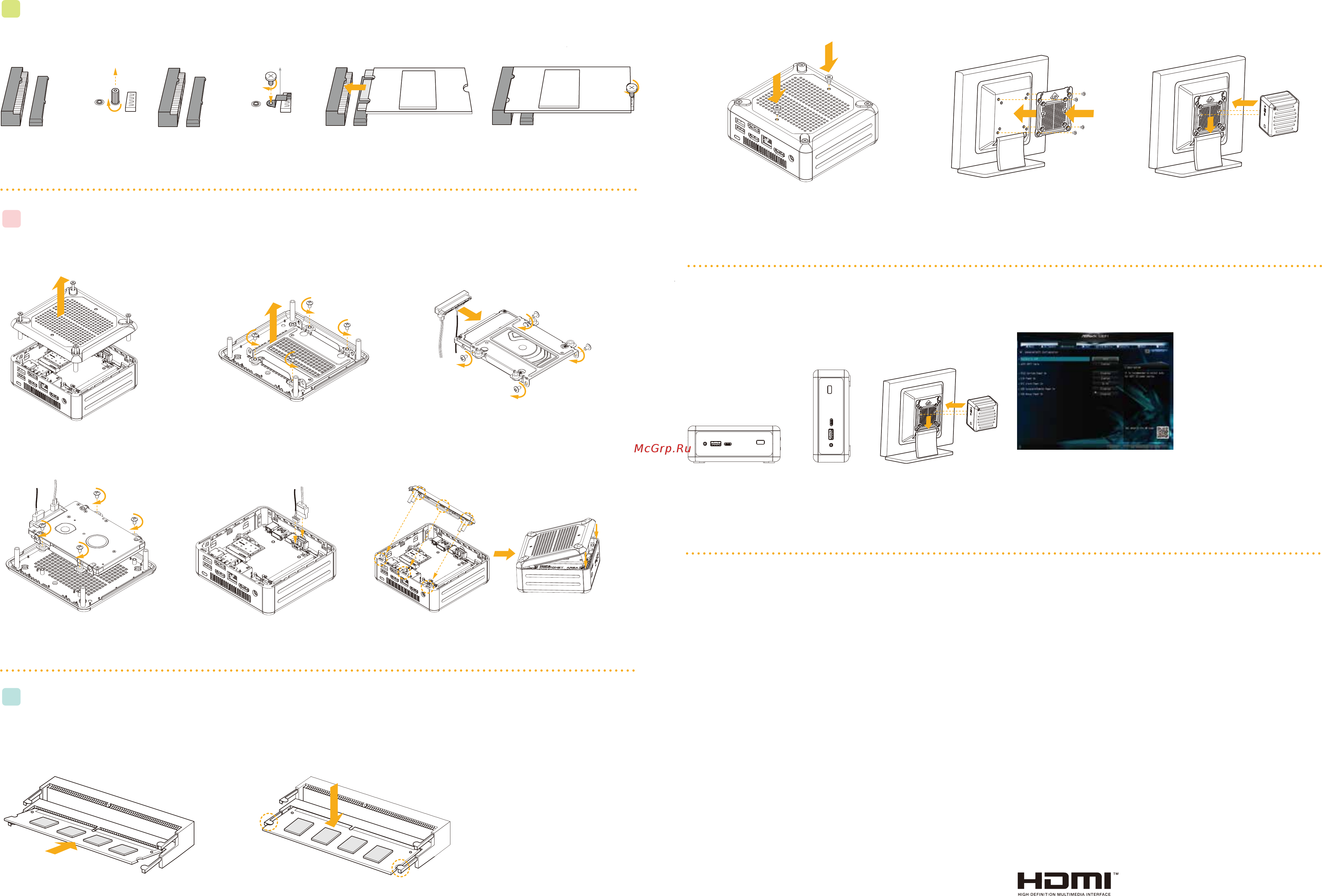

1. Remove the four screws on the bottom case.
en li up and remove the bottom panel.
2. Unscrew the four screws that hold the HDD
cage in place.
3. Install the HDD in the cage using the four
screws. en connect the SATA cable to the
HDD.
4. Attach the HDD cage to the bottom
panel and secure it using the four screws.
5. Connect the SATA Data and Power
Cable to the motherboard.
6. Align the three latches on the bottom panel with the three latch
holes on the chassis. en reinstall the bottom panel until it
clicks into place.
1. Carefully insert the SO-DIMM memory modules
into the slot at a 30-degree angle.
2. Push down until the modules snap into place.
Note:
- e Beebox series requires DDR4 SO-DIMM.
- For dual channel configuration, you always need to
install identical (the same brand, speed, size and chip-type)
DDR4 SO-DIMM pairs.
