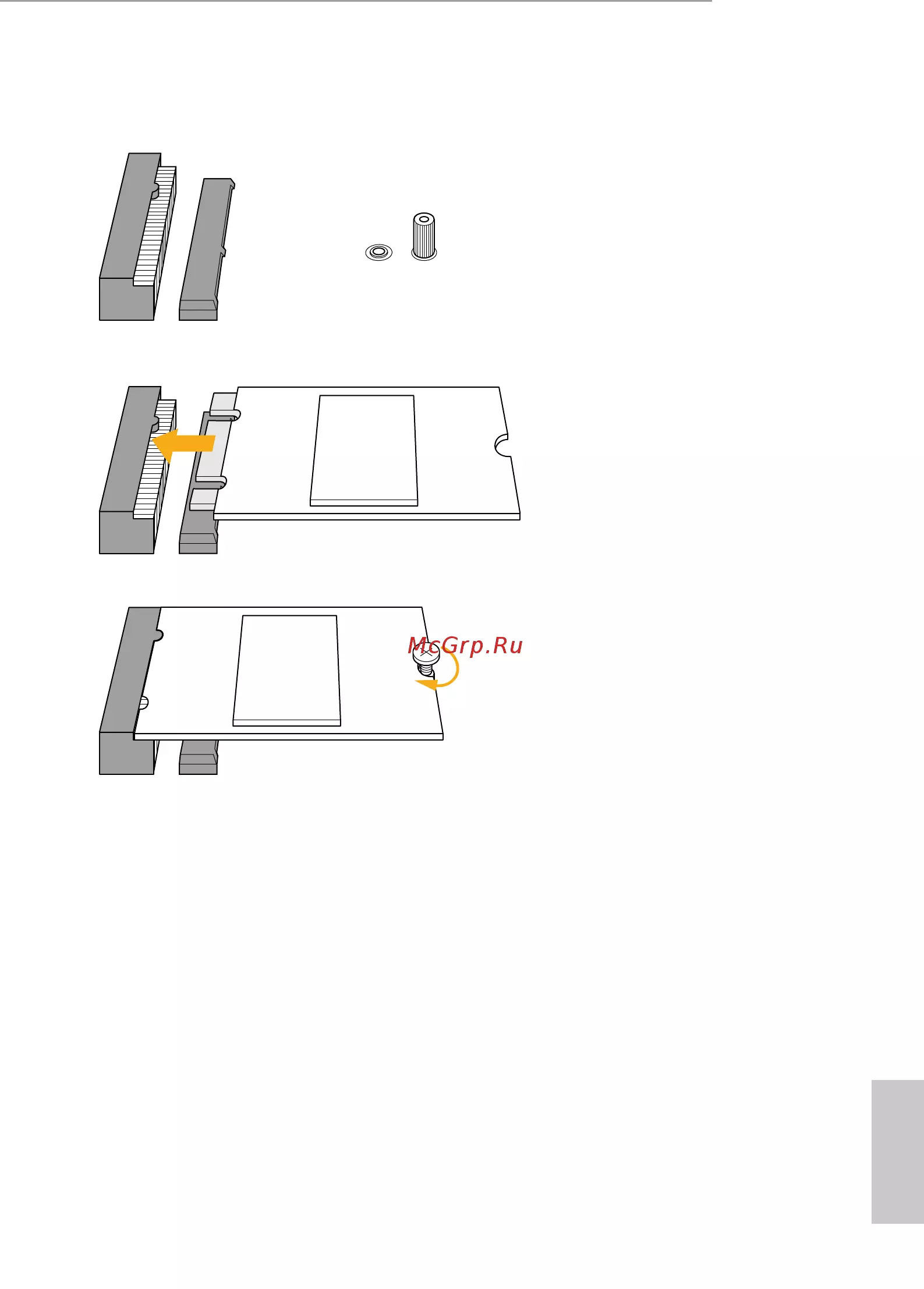

3.4 How to Install the M.2 SATA SSD (Type 2280)

1. Remove the stando screw.

2. Tighten the screw to secure the extended bracket to the motherboard.

3. Carefully insert the M.2 SSD into the slot.

4. Tighten the screw to secure the M.2 SATA SSD to the motherboard.

Extended Bracket.
