1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
10
11
12
1
2
4
3
5
6
7
8 9

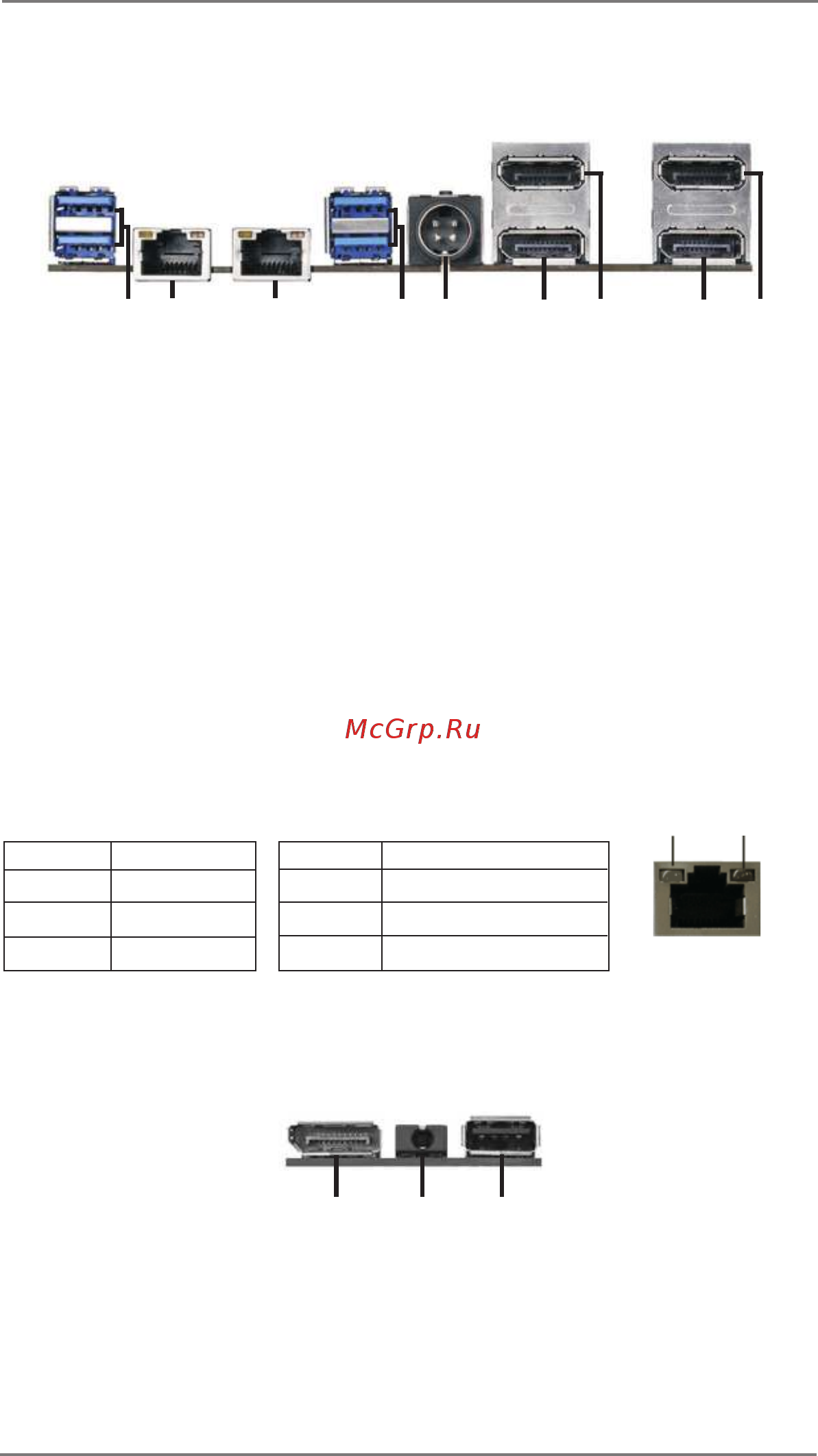

1 : USB3.0 Ports (USB3_3_4)
2 :
RJ45 LAN Port (LAN1)*
3 :
RJ45 LAN Port (LAN2)*
4 : USB3.0 Ports (USB3_1_2)
5 : DC Jack (DC_JACK1)
6 : Bottom :
MXMDP Port (MXMDP_2)
7 : Top : MXMDP Port (MXMDP_1)
8 : Bottom :
MXMDP Port (MXMDP_4)
9 : Top : MXMDP Port (MXMDP_3)
10 : FDP Port (FDP1)
11 : Audio Jack (AUDIO1)
12 : USB2.0 Port (USB2_7)
