10

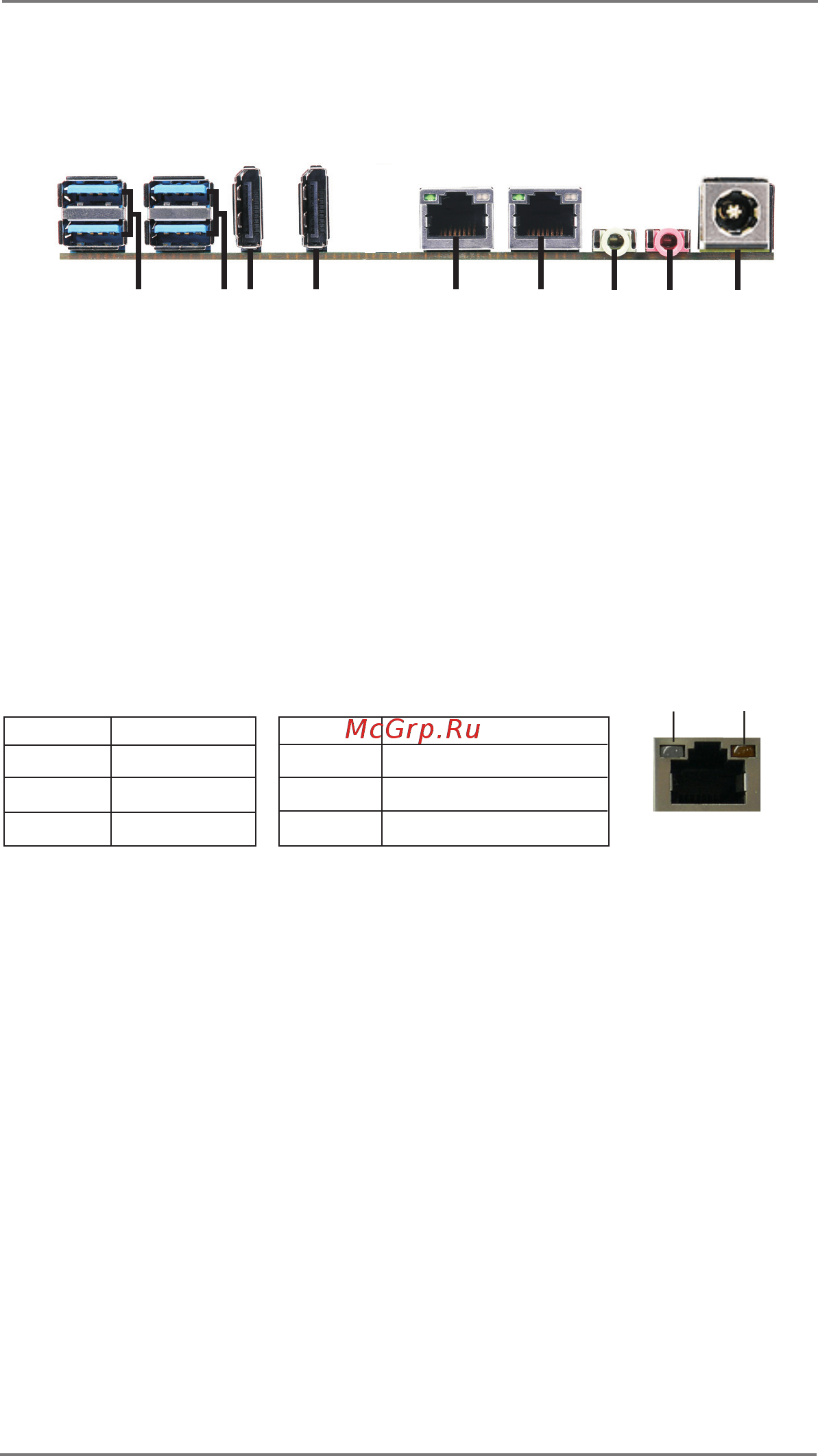

1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Yellow 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 USB 3.1 Ports (USB3_0_1)
2 USB 3.1 Ports (USB3_2_3)
3 DisplayPort (DP1)
4 DisplayPort (DP2)
5 LAN RJ-45 Port (LAN1)*
6 LAN RJ-45 Port (LAN2)*
7 Line out (Lime)
8 Microphone (Pink)
9 DC Jack (DC_JACK1)
1
2
4
3
5
6
7
8
9
