31

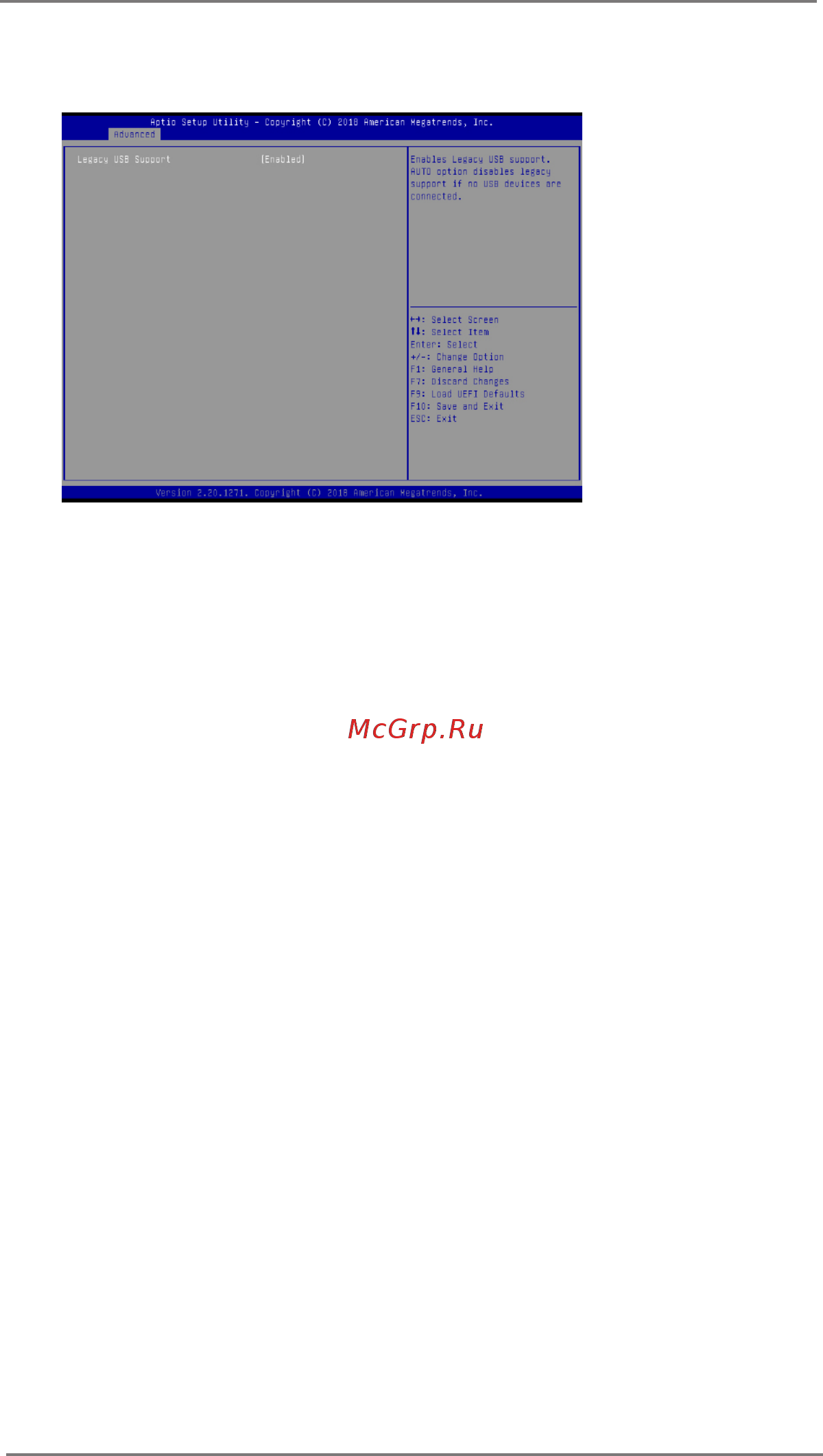

3.3.6 USB Conguration
Legacy USB Support
Use this option to select legacy support for USB devices. There are two
conguration options: [Enabled], and [UEFI Setup Only]. The default value
is [Enabled]. Please refer to below descriptions for the details of these four
options:
[Enabled] - Enables support for legacy USB.
[UEFI Setup Only] - USB devices are allowed to use only under UEFI
setup and Windows / Linux OS.
