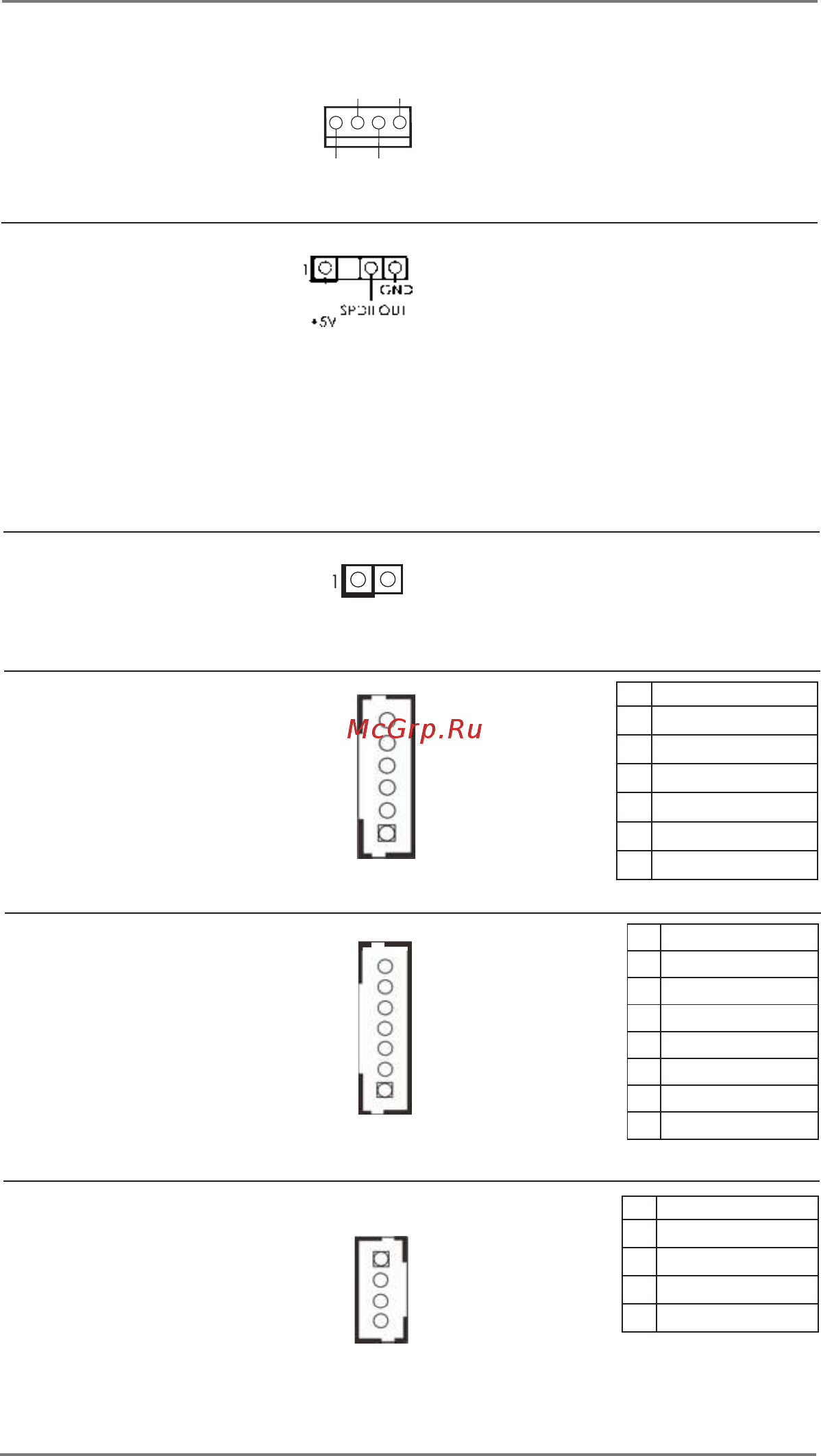

22
SATA Power Connector
Please connect a SATA
(SATA_PWR1)
power cable to this connector.
(see p.8 No. 6)
HDMI_SPDIF Header HDMI_SPDIF header, providing
(3-pin HDMI_SPDIF1)
SPDIF audio output to HDMI
(see p.8, No. 30)
VGA card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the HDMI_SPDIF
connector of HDMI VGA card to
this header.
Backlight Power Connector
(6-pin BLT_PWR1)
(see p.8, No. 11)
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 31)
Buzzer
(2-pin BUZZ2)
(see p.8 No. 22)
GND
+5V
+12 V
GND
1
1
PIN Signal Name
6 LCD_BLT_VCC
5 LCD_BLT_VCC
4 CON_LBKLT_EN
3 CON_LBKLT_CTL
2 GND
1 GND
PIN Signal Name
7 GND
6 GND
5 BLT_DW
4 BLT_UP
3 PWRDN
2 GPIO_VOL_DW
1 GPIO_VOL_UP
1
Backlight Volume Control
(7-pin BLT_VOL1)
(see p.8, No. 12)
PIN Signal Name
1 OUTLN
2 OUTLP
3 OUTRP
4 OUTRN
1
