23
1
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
10
DDC_DATA
8
VSYNC
6
GND
4
GND
2
GND
9
DDC_CLK
7
HSYNC
5
BLUE
3
GREEN
1
RED
*
VGA Connector is shared with DisplayPort. If you enable one, the other one will not function.

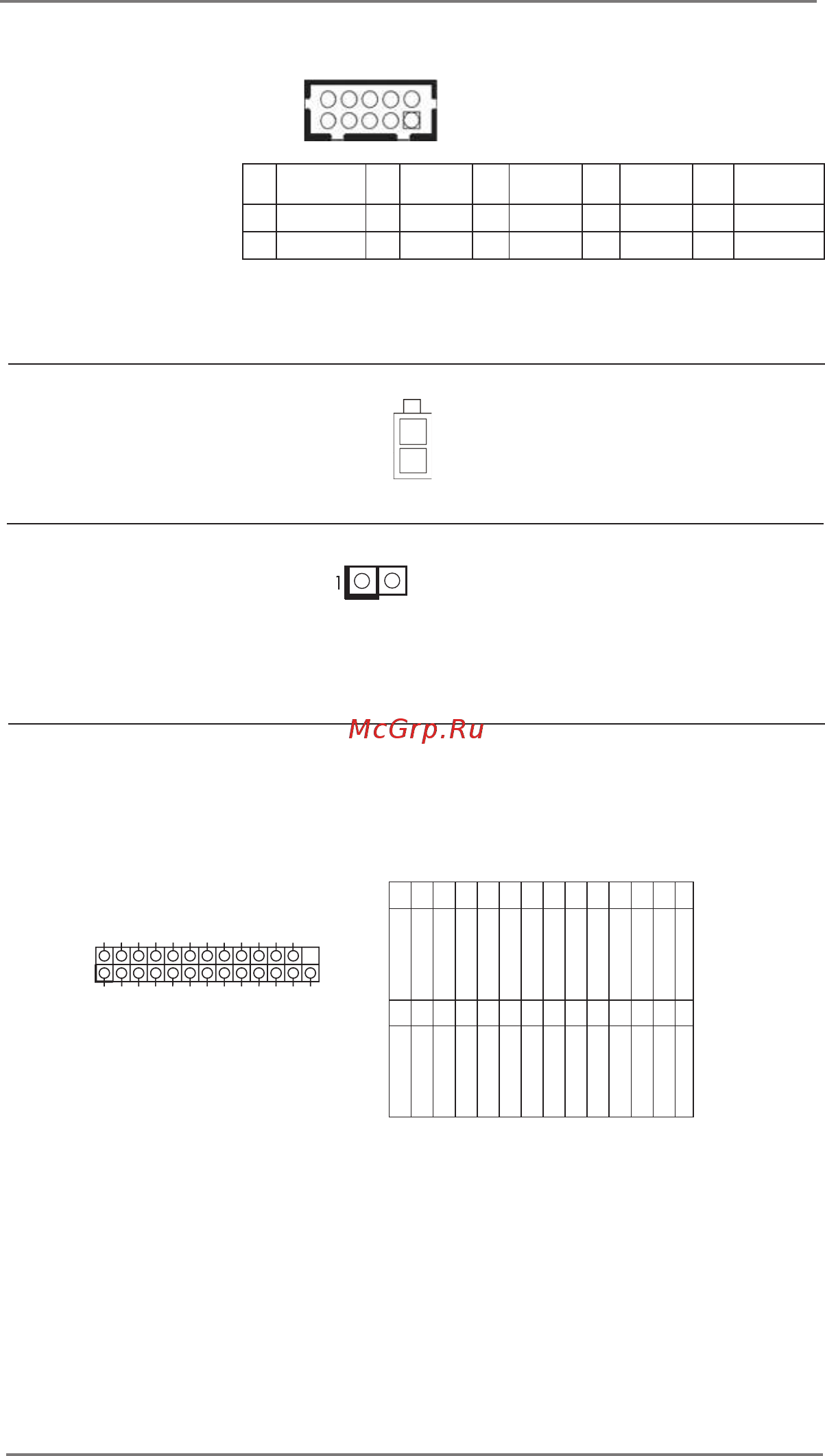

VGA Connector (Optional)
(10-pin VGA_H1)
(see p.8 No. 34)
2
1
1
SPD0
STB#
SPD1
SPD2
SPD3
SPD4
SPD6
SPD7
GND
GND
SLIN#
PINIT#
ERROR#
AFD#
GND
GND
GND
GND
GND
GND
SPD5
ACK#
BUSY
PE
SLCT
*
If you want to use the printer port function, please
short pin4 and pin5 on
Digital Input / Output
Power Select (JGPIO_PWR1).
PIN Signal Name PIN Signal Name
26 NC 25 NA
24 GND 23 SIO_GP30
22 GND 21 SIO_GP31
20 GND
19 SIO_GP32
18 GND 17 SIO_GP33
16 GND 15 SIO_GP34
14 GND 13 SIO_GP35
12 JGPIOPWR 11 SIO_GP36
10 JGPIOPWR 9 SIO_GP37
8 SIO_GP43 7 SIO_GP40
6 SIO_GP44 5 SIO_GP41
4 SIO_GP45 3 SIO_GP42
2 SIO_GP46 1 SIO_GP47
UPS Module Power Input Connector Pin
1 : GND
(2-pin TO_UPS1)
Pin
2 : DC Input
(see p.8 No. 2)
BL1, BL2
(2-pin BL1)
(see p.8 No. 10)
(2-pin BL2)
(see p.8 No. 8)
Printer Port / GPIO Header
(25-pin LPT_GPIO1)
(see p.8 No. 27)
Printer Port: GPIO:
