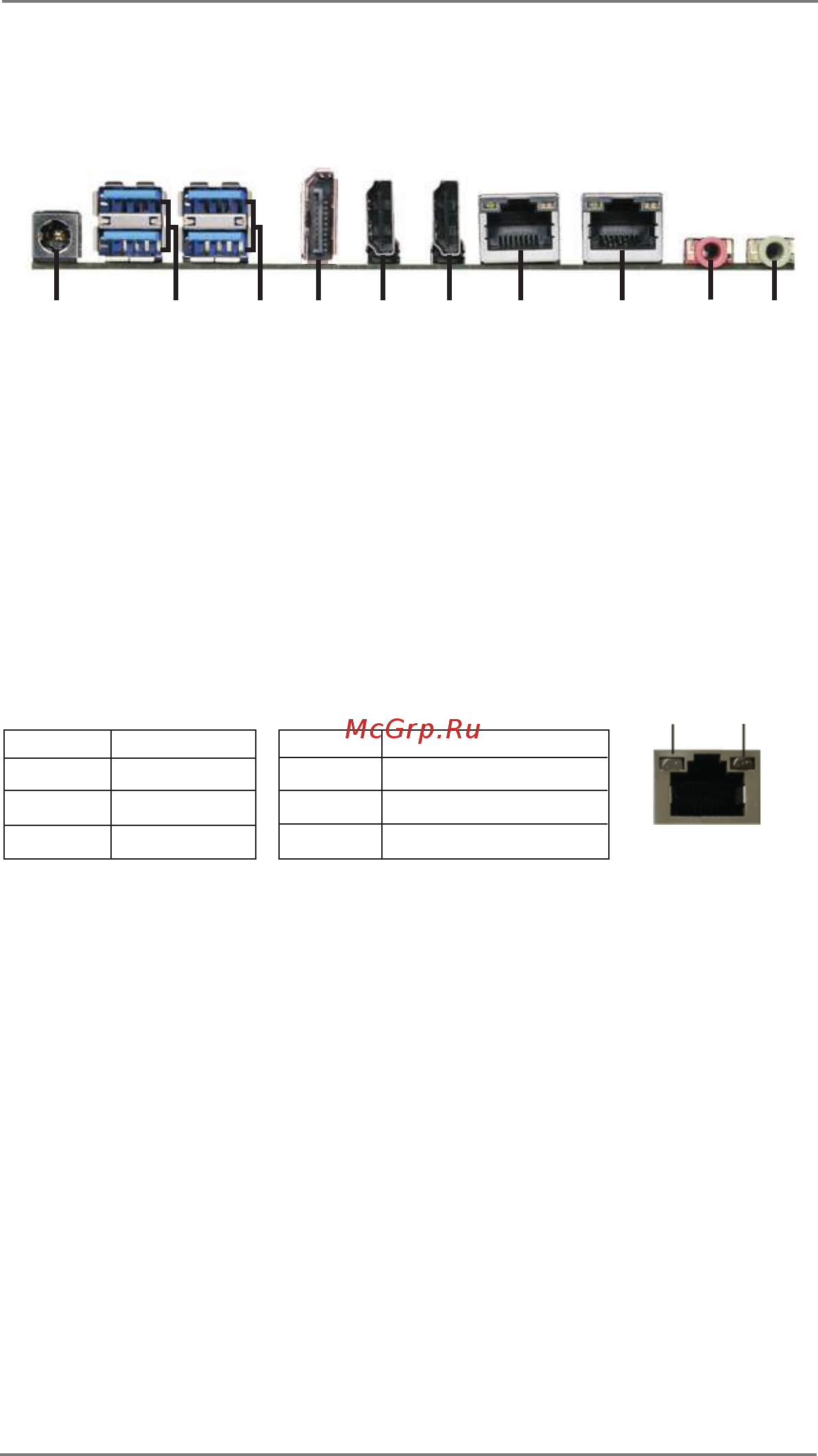

1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Off 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 DC Jack (+19V only) (DC_JACK1)
2 USB 3.0 Ports (USB3_0_1)
3 USB 3.0 Ports (USB3_2_3)
4 DisplayPort (DISPLAY1)
5 HDMI Port (HDMI2)
6 HDMI Port (HDMI3)
7 LAN RJ-45 Port*
8 LAN RJ-45 Port*
9 Microphone (Pink)
10 Line out (Lime)
1
2
4
3
5
6
7
8
9
10
