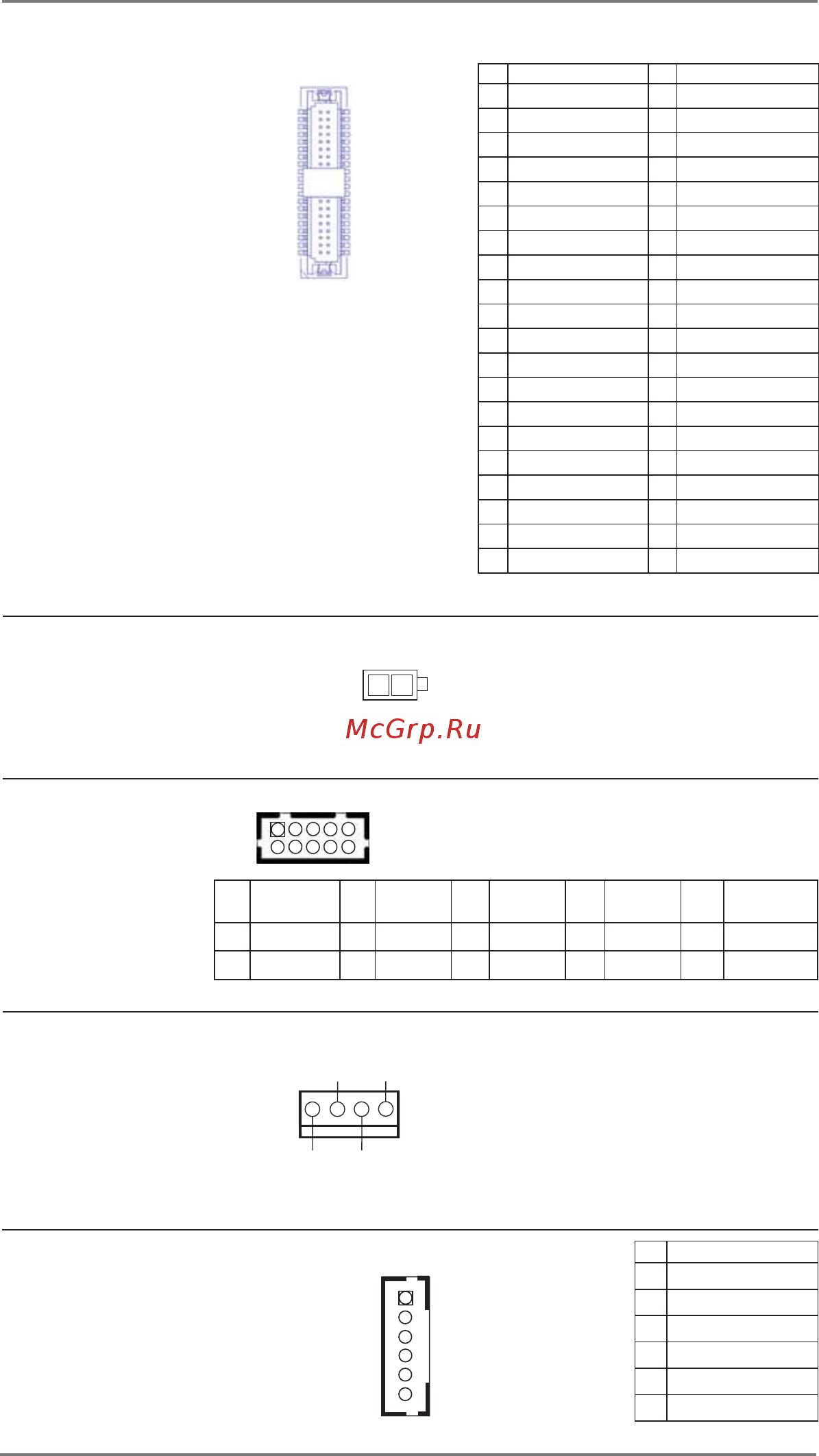

LVDS Connector
(40-pin LVDS1)
(see p.8 No. 13)
1
39
40
2
SATA Power Output Connectors
Please connect a SATA
(SATA_PWR1)
power cable to this connector.
(see p.8 No. 6)
(SATA_PWR2)
(see p.8 No. 7)
UPS Module Power Input Connector Please connect an UPS
(2-pin UPS_IN1)
power cable to this connector.
(see p.8 No. 1)
VGA Connector
(10-pin VGA1: see p.8, No. 4)
PIN Signal Name PIN Signal Name
2 LCD_VCC 1 LCD_VCC
4 LDDC_CLK 3 +3.3V
6 LVDS_A_DATA0# 5 LDDC_DATA
8 GND 7 LVDS_A_DATA0
10
LVDS_A_DATA1
9 LVDS_A_DATA1#
12 LVDS_A_DATA2# 11 GND
14
GND
13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18
LVDS_A_CLK#
17 GND
20 GND 19 LVDS_A_CLK
22
LVDS_B_DATA0
21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23 GND
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29 DPLVDD_EN
32 GND 31 LVDS_B_DATA3
34 LVDS_B_CLK 33 LVDS_B_CLK#
36 CON_LBKLT_EN 35 GND
38 LCD_BLT_VCC 37 CON_LBKLT_CTL
40 LCD_BLT_VCC 39 LCD_BLT_VCC
1
GND
+5V
+12V
GND
1
1
PIN Signal Name
1 GND
2 GND
3 CON_LBKLT_CTL
4 CON_LBKLT_EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
Backlight Power Connector
(6-pin BLT_PWR1: see p.8, No. 14)
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
1 RED 3 GREEN 5 BLUE 7 HSYNC 9 DDC_CLK
2
GND
4
GND
6
GND
8
VSYNC
10
DDC_DATA
