32

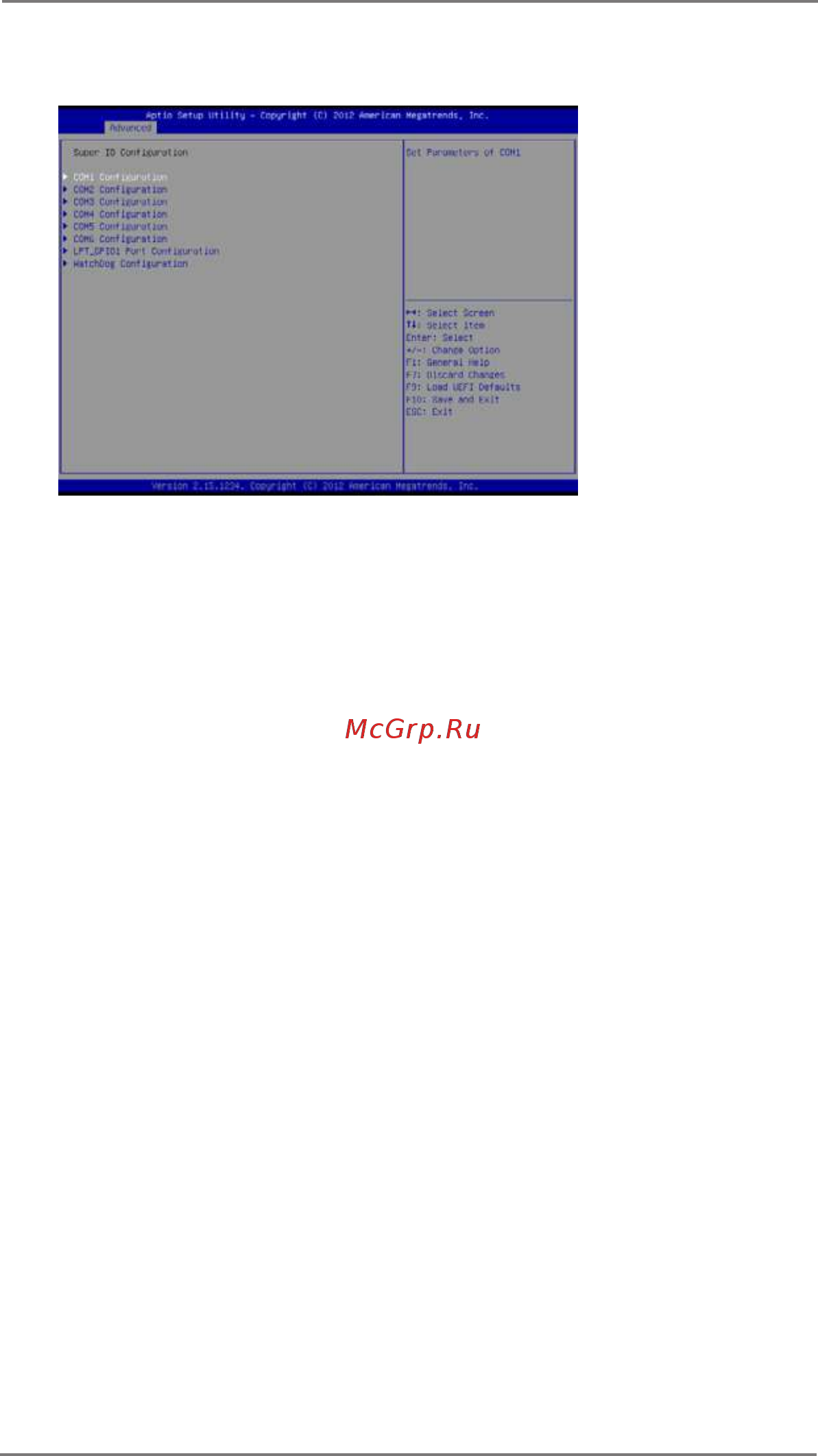

3.3.6 Super IO Conguration
COM1 Conguration
Use this to set parameters of COM1. Select COM1 port type: [RS232],
[RS422] or [RS485].
COM2 Conguration
Use this to set parameters of COM2. Select COM2 port type: [RS232],
[RS422] or [RS485].
COM3 Conguration
Use this to set parameters of COM3.
COM4 Conguration
Use this to set parameters of COM4.
COM5 Conguration
Use this to set parameters of COM5.
COM6 Conguration
Use this to set parameters of COM6.
LPT_GPIO1 Port Conguration
Use this to set parameters of LPT_GPIO header.
Watchdog Conguration
Use this to set the Watch Dog Timer.
