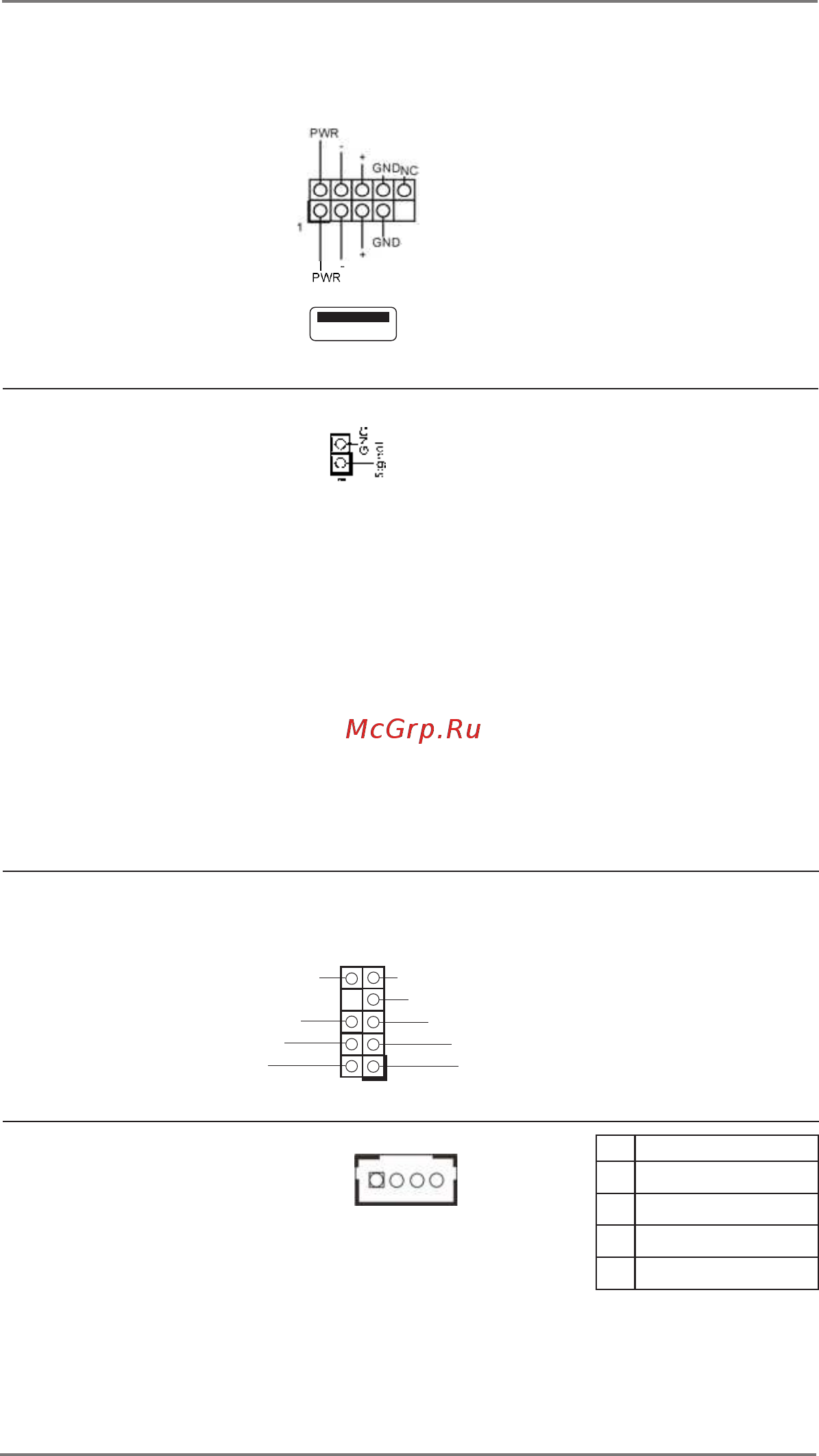

USB 2.0 Headers There are four USB 2.0 headers

(9-pin USB4_5/USB6_7/USB8_9/USB10_11: see p.8, No. 16)

and one port on this

motherboard. Each USB 2.0

header can support two USB 2.0

ports.

(USB12: see p.8, No. 17)

Chassis Intrusion Headers This motherboard supports

(2-pin CI1/CI2: see p.8, No. 13)

CASE OPEN detection feature

that detects if the chassis cover

has been removed. This feature

requires a chassis with chassis

intrusion detection design.

CI1:

Close: Active case open

Open: Normal

Cl2:

Close: Normal

Open: Active case open

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1)

panel audio cable that allows

(see p.8 No. 23)

convenient connection and

control of audio devices.

J_SENSE

OUT2_L

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

3W Audio Amp Output Wafer

(4-pin SPEAKER1)

(see p.8, No. 22)

PIN Signal Name

1 SPK R-

2 SPK R+

3 SPK L+

4 SPK L-
