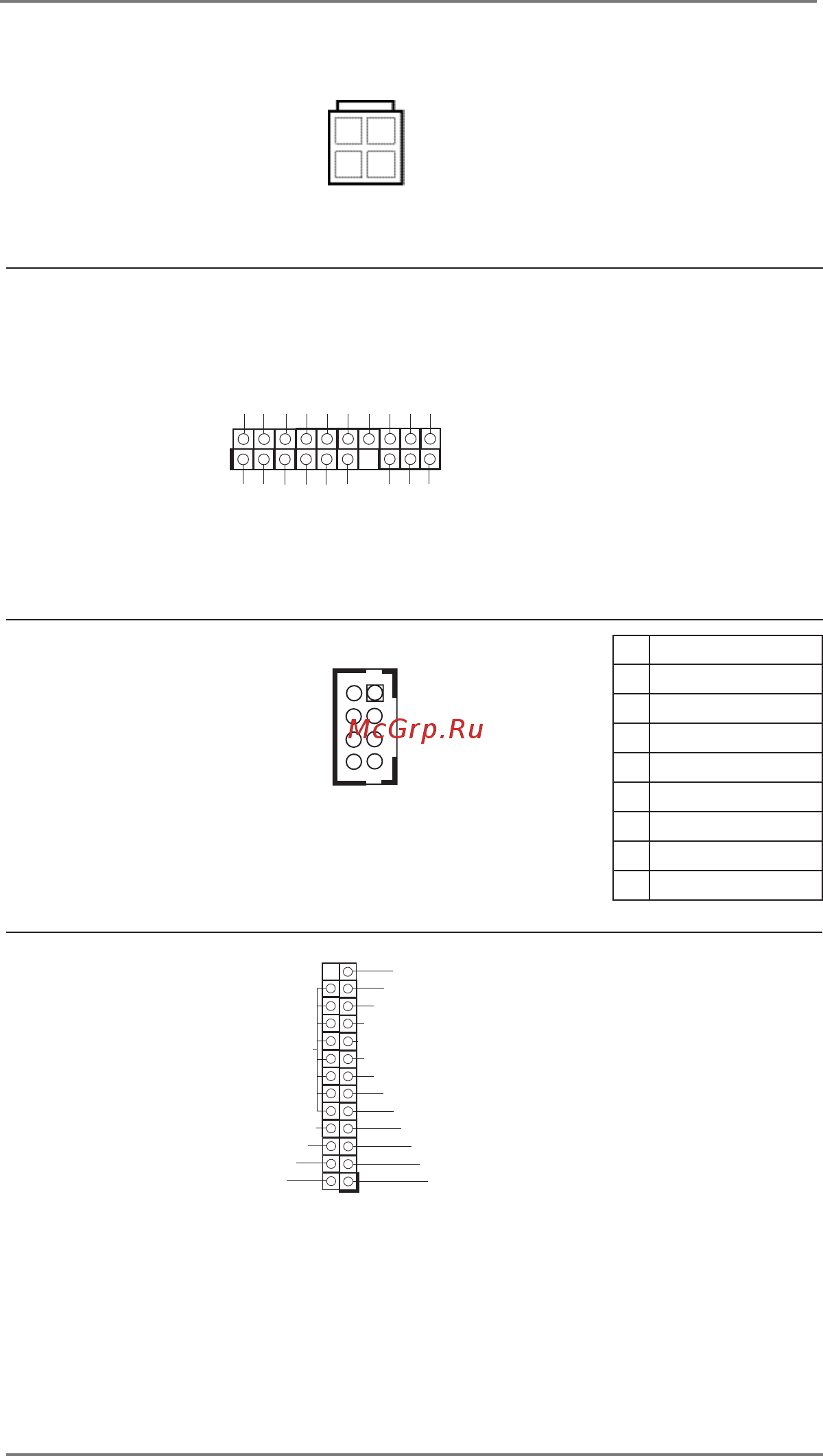

TPM Header This connector supports a
(19-pin TPM1)
Trusted Platform Module (TPM)
(
see p.8, No. 4)
system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
PS2_KB_MS1
(8-pin PS2_KB_MS1)
(see p.8, No. 12)
1
PIN Signal Name
1 KBCLK
2 +5V
3 KBDATA
4 +5V
5 MSDATA
6 GND
7 MSCLK
8 GND
Print Port Header This is an interface for print
(25-pin LPT1)
port cable that allows
(see p.8, No. 10)
convenient connection of printer
devices.
1
AF D#
ER RO R#
PI NI T#
GN D
SL IN #
ST B#
SP D0
SP D1
SP D2
SP D3
SP D4
SP D5
SP D6
SP D7
AC K#
BU SY
PE
SL CT
1
GN D
GN D
S_ PWRDWN#
LA D2
SM B_CLK_MAIN
PC ICLK
PC IRST#
LA D3
+3 V
LA D0
GN D
FR AME
SM B_DATA_MAIN
LA D1
SE RIRQ#
GN D
+3 VSB
48 MHz
+5 V
ATX Power Connector (Input 9V-19V) Please connect an ATX 12V
(4-pin ATX12V1)
power supply to this connector.
(see p.8, No. 1)
1-2: GND
3-4: DC Input
4
2
3
1
