19

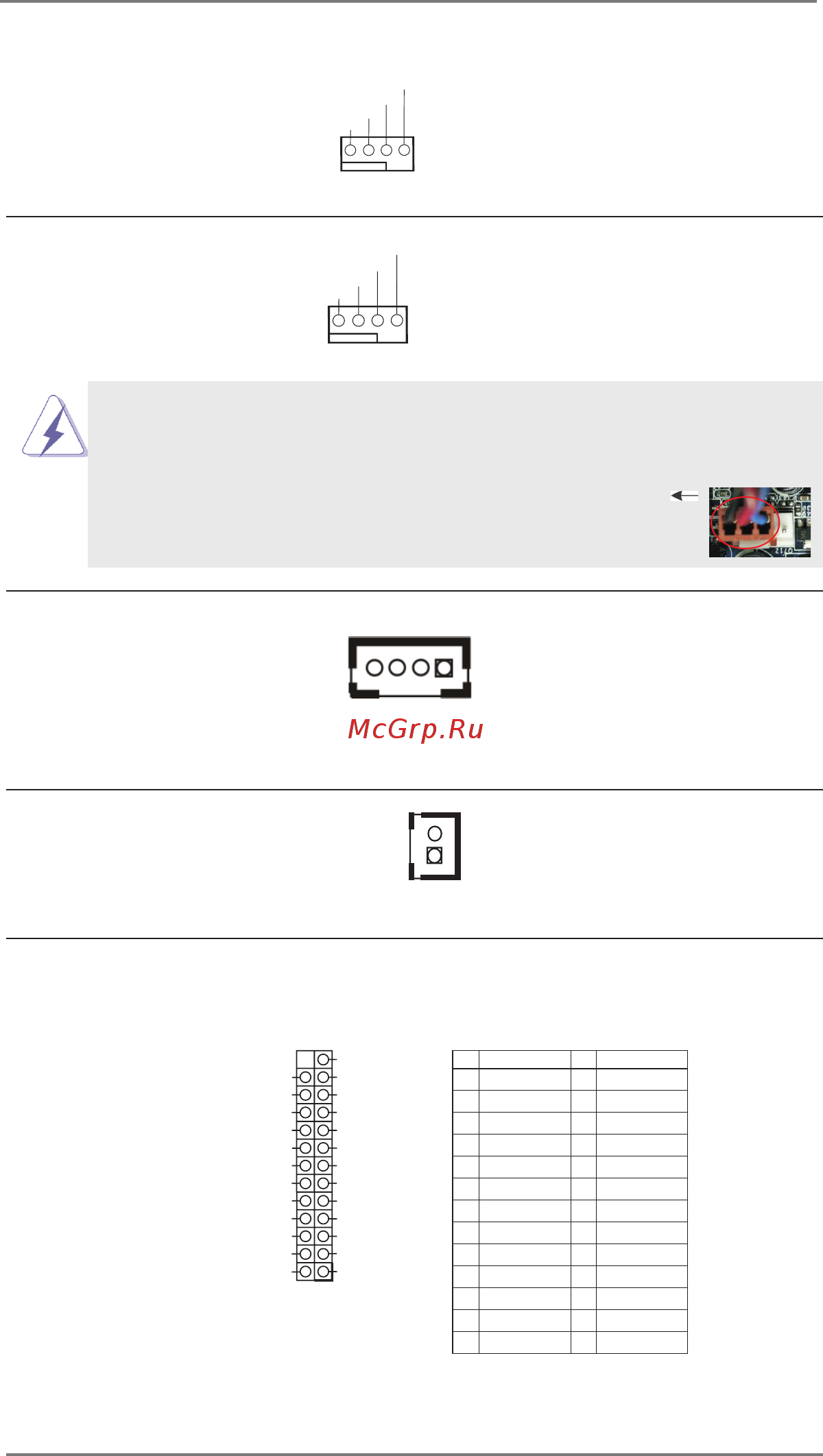

Chassis Fan Connector Please connect the fan cable
(4-pin CHA_FAN1)
to the fan connector and
(see p.8 No. 22)
match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1)
cable to the connector and
(see p.8 No. 21)
match the black wire to the
ground pin.
Printer Port / GPIO Header
(25-pin LPT_GPIO1)
(see p.8 No. 17)
Printer Port: GPIO:
FAN_SPEED
FAN_SPEED_CONTROL
GND
+12V
1 2 3 4
*
If you want to use the printer port function, please
short pin4
and pin5 on
Digital Input / Output Power Select (JGPIO_PWR1).
FAN_SPEED
FAN_SPEED_CONT ROL
GND
+12V
1 2 3 4
1
1
SPD0
STB#
SPD1
SPD2
SPD3
SPD4
SPD6
SPD7
GND
GND
SLIN#
PINIT#
ERROR#
AFD#
GND
GND
GND
GND
GND
GND
SPD5
ACK#
BUSY
PE
SLCT
PIN Signal Name PIN Signal Name
26 NC 25 NA
24 GND 23 SIO_GP30
22 GND 21 SIO_GP31
20 GND 19 SIO_GP32
18 GND 17 SIO_GP33
16 GND 15 SIO_GP34
14 GND 13 SIO_GP35
12 JGPIOPWR 11 SIO_GP36
10 JGPIOPWR 9 SIO_GP37
8 SIO_GP43 7 SIO_GP40
6 SIO_GP44 5 SIO_GP41
4 SIO_GP45 3 SIO_GP42
2 SIO_GP46 1 SIO_GP47
1
UPS Module Power Input Connector Pin1: GND
(2-pin TO_UPS1)
Pin2: DC Input
(see p.8 No. 1)
4-pin DC-in PWR Connector & UPS Please connect a DC
Module Power Output Connector +12V & +19V~+24V power
(Input +12V & +19V~+24V) supply to this connector.
(4-pin FROM_UPS1)
Pin1 and Pin4: GND
(see p.8 No. 3)
Pin2 and Pin3: DC Input
