31

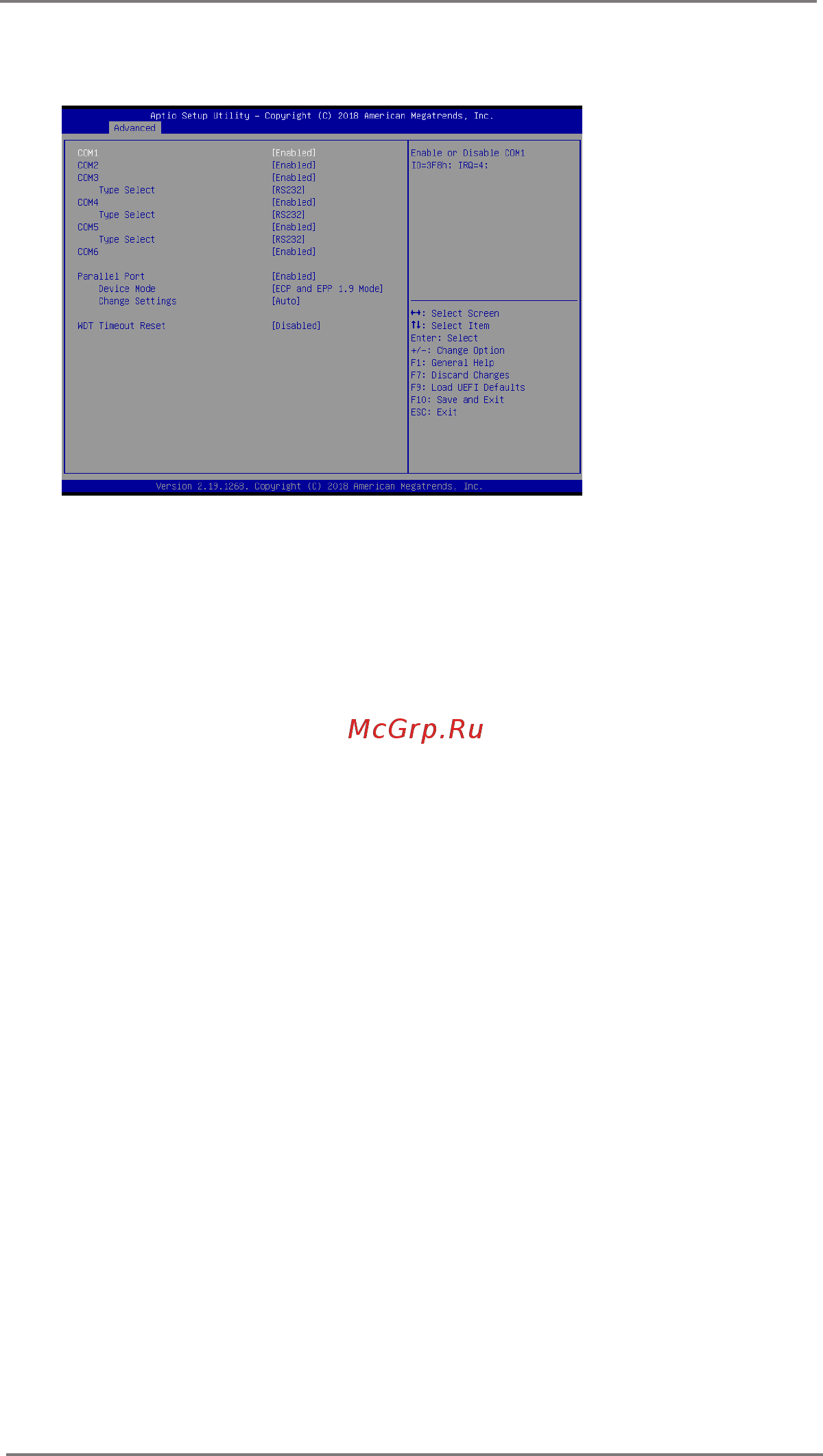

3.3.4 Super IO Conguration
Serial Port1
Use this to enable or disable COM1.
Serial Port2
Use this to enable or disable COM2.
Serial Port3
Use this to enable or disable COM3.
Type Select
Use this to select COM3 port type: [RS232], [RS422] or [RS485].
Serial Port4
Use this to enable or disable COM4.
Type Select
Use this to select COM3 port type: [RS232], [RS422] or [RS485].
Serial Port5
Use this to enable or disable COM5.
Type Select
Use this to select COM3 port type: [RS232], [RS422] or [RS485].
Serial Port6
Use this to enable or disable COM6.
Parallel Port
Enable or disable the Parallel port.
Device Mode
Select the device mode according to your connected device.
Change Settings
Select the address of the Parallel port.
