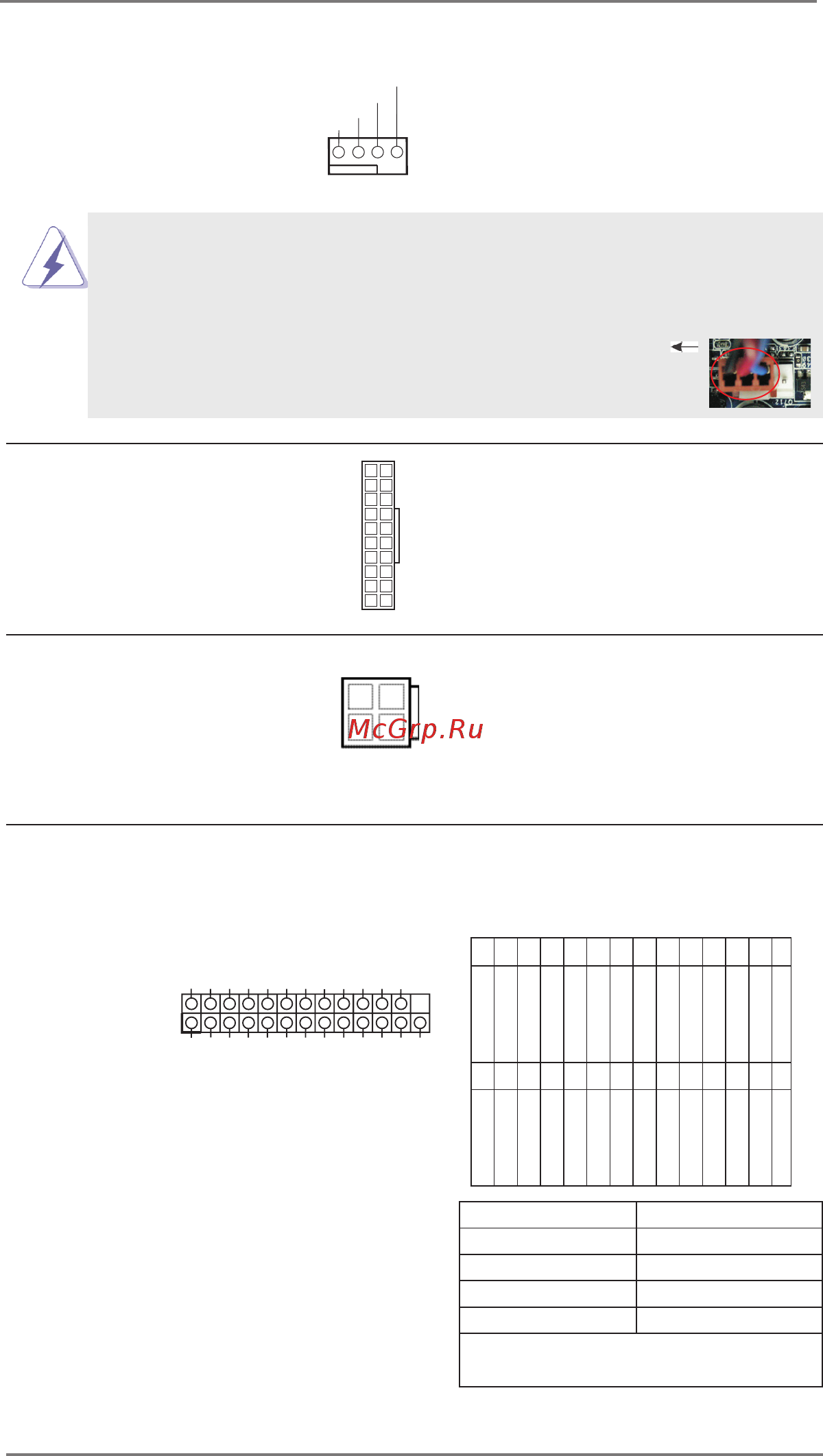

ASRock IMB-156D [19/37] Input 12v or 19v 24v 12v or 19v 24v power
![ASRock IMB-156J [19/37] Input 12v or 19v 24v 12v or 19v 24v power](/views2/1693515/page19/bg13.png)
19
*
If you want to use the printer port function, please
short pin4
and pin5 on
Digital Input / Output Power Select (JGPIO_PWR1).
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
4-pin ATX PWR Con Please connect a DC
(Input +12V or +19V~+24V) +12V or +19V~+24V power
(4-pin ATX12V1)
supply to this connector.
(see p.8 No. 5)
1-2: GND
3-4: DC Input
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1)
cable to the connector and
(see p.8 No. 3)
match the black wire to the
ground pin.
ATX Power Connector Please connect an ATX power
(20-pin ATXPWR1)
supply to this connector.
(see p.8 No. 12)
10
1
20
11
4
2
3
1
Printer Port / GPIO Header
(25-pin LPT_GPIO1)
(see p.8 No. 20)
Printer Port: GPIO:
FAN_SPEED
FAN_SPEED_CONTROL
GND
+12V
1 2 3 4
1
SPD0
STB#
SPD1
SPD2
SPD3
SPD4
SPD6
SPD7
GND
GND
SLIN#
PINIT#
ERROR#
AFD#
GND
GND
GND
GND
GND
GND
SPD5
ACK#
BUSY
PE
SLCT
PIN Signal Name PIN Signal Name
26 NC 25 NA
24 GND 23 SIO_GP30
22 GND 21 SIO_GP31
20 GND 19 SIO_GP32
18 GND 17 SIO_GP33
16 GND 15 SIO_GP34
14 GND 13 SIO_GP35
12 JGPIOPWR 11 SIO_GP36
10 JGPIOPWR 9 SIO_GP37
8 SIO_GP43 7 SIO_GP40
6 SIO_GP44 5 SIO_GP41
4 SIO_GP45 3 SIO_GP42
2 SIO_GP46 1 SIO_GP47
Parameter Range
GPI/O input Low Voltage Max. 0.8V
GPI/O input High Voltage Min. 2.0V
GPI/O output Low Voltage Max. 0.4V
GPI/O output High Voltage Min. 2.4V
Note :
Max. load per GPI/O pin : 12mA
Current Max. 1A per power pin.
