10

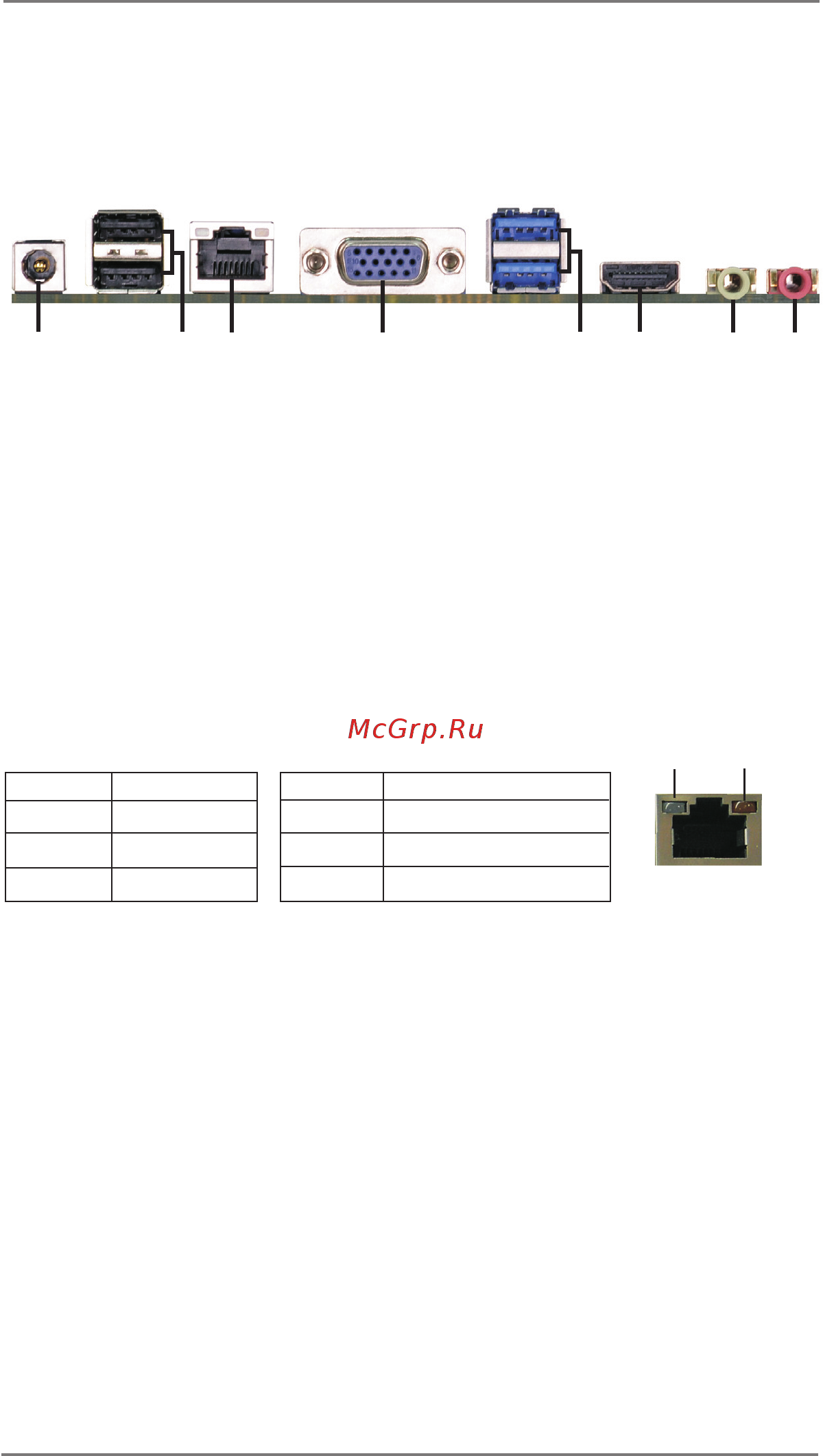

1.4 I/O Panel
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity O 100Mbps connection
On Link Green 1Gbps connection
1 DC Jack
2 USB 2.0 Ports (USB2_12)
3 LAN RJ-45 Port*
4 VGA Port (VGA1)
5 USB 3.0 Ports (USB3_12)
6 HDMI Port (HDMI1)
7 Line out (Green)
8 Microphone (Pink)
ACT/LINK
LED
SPEED
LED
LAN Port
6
1
2 4
3
5
8
7
