30

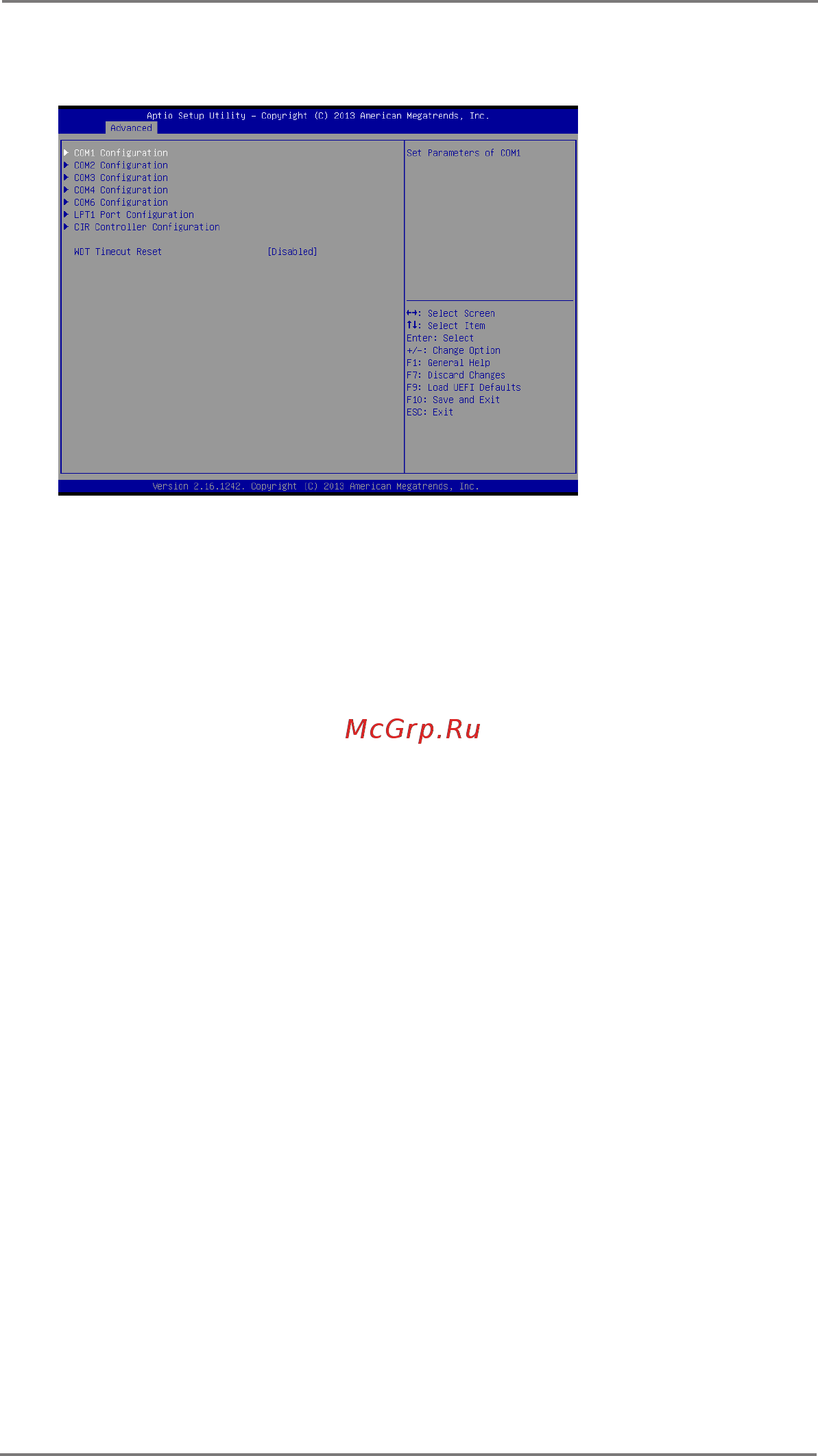

3.3.5 Super IO Conguration
COM1 Conguration
Use this to set parameters of COM1. Select COM1 port type: [RS232],
[RS422] or [RS485].
COM2 Conguration
Use this to set parameters of COM2.
COM3 Conguration
Use this to set parameters of COM3.
COM4 Conguration
Use this to set parameters of COM4.
COM6 Conguration
Use this to set parameters of COM6.
LPT1 Port Conguration
Use this set parameters of the onboard parallel port.
CIR Controller Conguration
Use this set CIR controller.
WDT Timeout Reset
This allows users to enable/disable the Watch Dog Timer timeout to reset
system. The default value is [Disabled].
