21

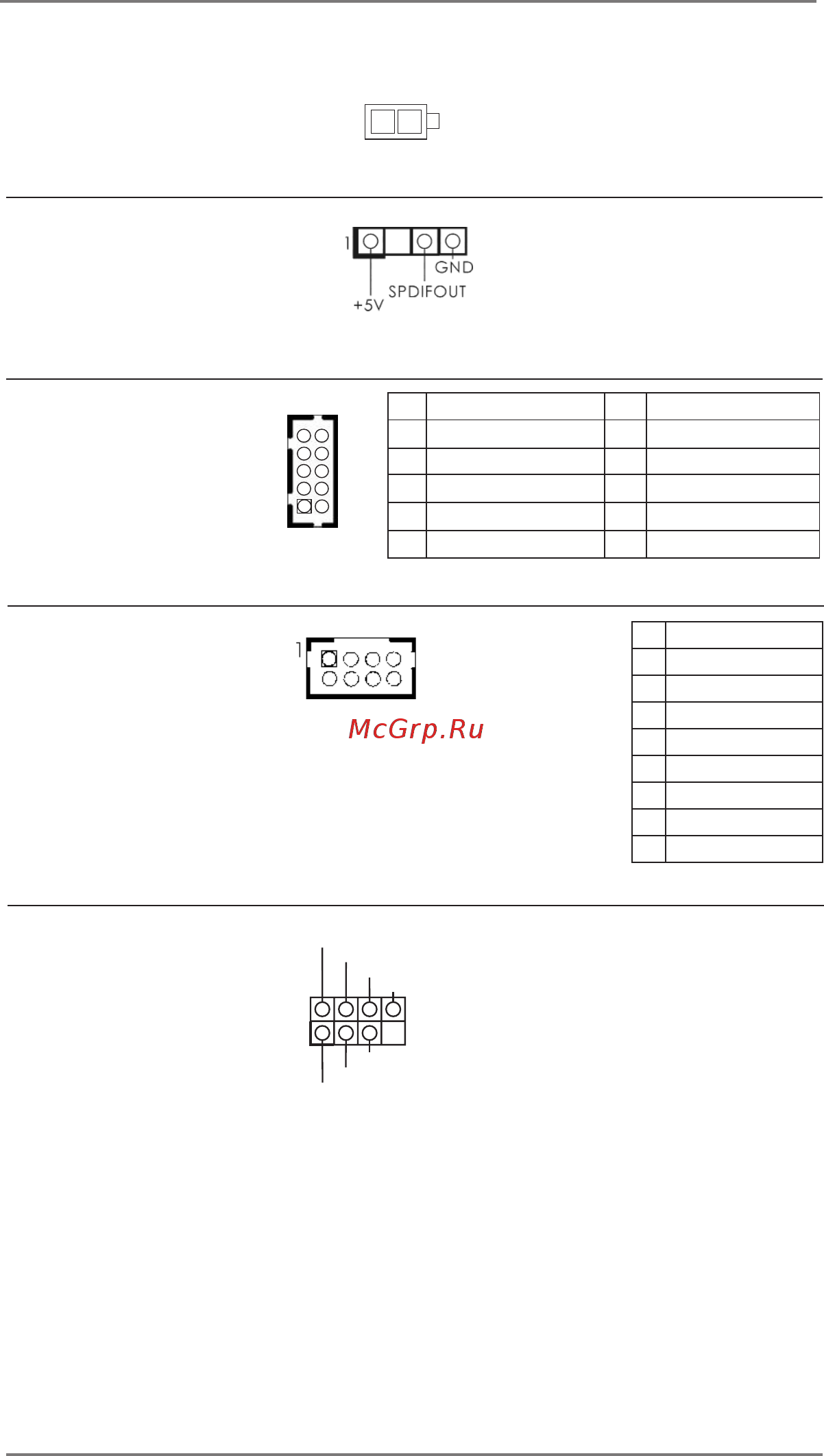

UPS Module Power Input Connector
(2-pin INT_DC1)
(see p.8, No. 2)
SPDIF Header
(3-pin SPDIF1: see p.8, No. 25)
1
VGA Connector
(10-pin VGA2: see p.8, No. 37)
PIN Signal Name PIN Signal Name
9
DDC_CLK
10
DDC_DATA
7
HSYNC
8
VSYNC
5 BLUE 6 GND
3
GREEN
4
GND
1 RED 2 GND
PS2_KB_MS1
(8-pin PS2_KB_MS1)
(see p.8 No. 19)
PIN Signal Name
1 KBCLK
2 +5V
3 KBDATA
4 +5V
5 MSDATA
6 GND
7 MSCLK
8 GND
CIR Header
(7-pin CIR1)
(see p.8 No. 21)
CIRRX
+5VSB
+5VSB
CIRRXWB
NC
CIRTX
GND
1
